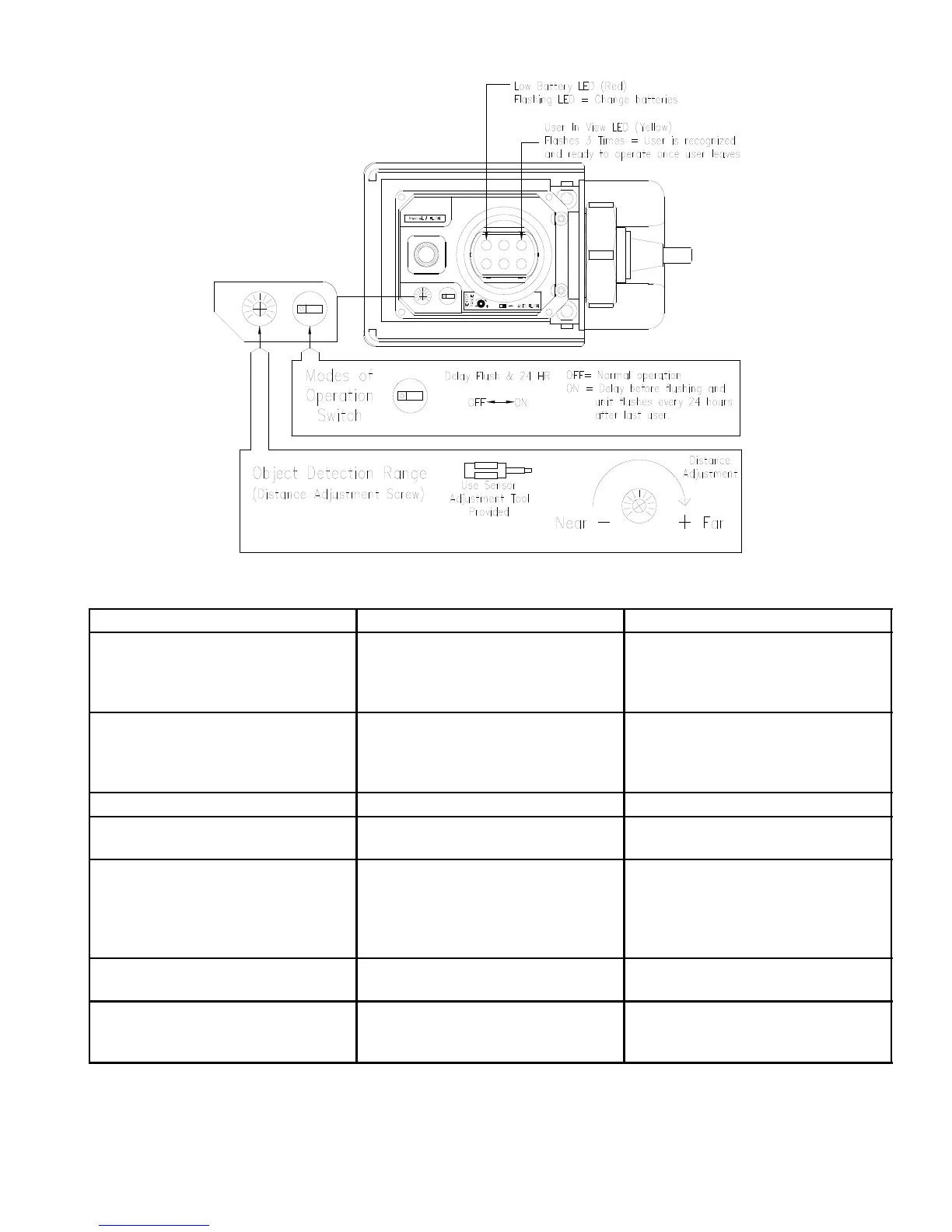

WIRING DIAGRAM
TROUBLE SHOOTING GUIDE
Delay Flush = User must
leave the sensor range for
3 seconds before a ush is
generated.
24 Hour Flush = Unit will
automatically ush 24 hours
after the last use.
PROBLEM CAUSE SOLUTION
Yellow L.E.D. light ashes 3 times
when there are no
users.
Front of Object Lock Sensor is
covered or Object Lock Sensor is
set too far out, registering the
opposite wall or door as a user.
Remove item covering sensor or
adjust Object Lock Sensor activation
distance. (See Appendix B – Adjust-
ing the E-Z Flush.)
Yellow L.E.D. light ashes continu-
ously when Object
Lock Sensor is activated by a user.
E-Z Flush unit is in 10-minute
start-up mode (when rst activated),
or Sensor Range Reset
Button has been depressed.
Yellow L.E.D. light will ash only 3
times, acknowledging a user is in
view after the 10-minute start-up
mode.
Red L.E.D. light ashes. Batteries need replacing. Replace batteries.
Not enough water to xture or too
much water to xture.
Diaphragm damaged or valve
control stop improperly adjusted.
Replace diaphragm and/or adjust
valve control stop.
Valve will not operate. Object Lock Sensor range set too
close to E-Z Flush, batteries are
dead, or water supply is turned off.
Adjust Object Lock Sensor, replace
batteries, or turn water on. If the E-Z
Flush does not begin to function,
call Customer Service at 1-800-997-
3876.
Valve does not shut off. Dirt or debris preventing diaphragm
from functioning properly.
Remove dirt or debris, check by-
pass hole in diaphragm.
Valve does not ush even after Ob-
ject Lock Sensor has been adjusted.
Batteries are dead. Replace batteries. If the E-Z Flush
does not begin to function, call Cus-
tomer Service at 1-800-997-3876.
