P-660HW-T v2 Quick Start Guide
2
Overview
The P-660HW-T v2 is an ADSL router with a four-port built-in Ethernet switch and IEEE 802.11b/g wireless
capability. The P-660HW-T v2 allows wired and wireless clients to safely access the Internet.
See your User’s Guide for background information on all features.
How to use the included CD
This CD provides multi-media animations that help you set up your P-660HW-T v2.
1 On the included CD, click Multimedia Auto Provisioner > Installation Tutorial.
2 At the end of the tutorial, click Configuration Genie.

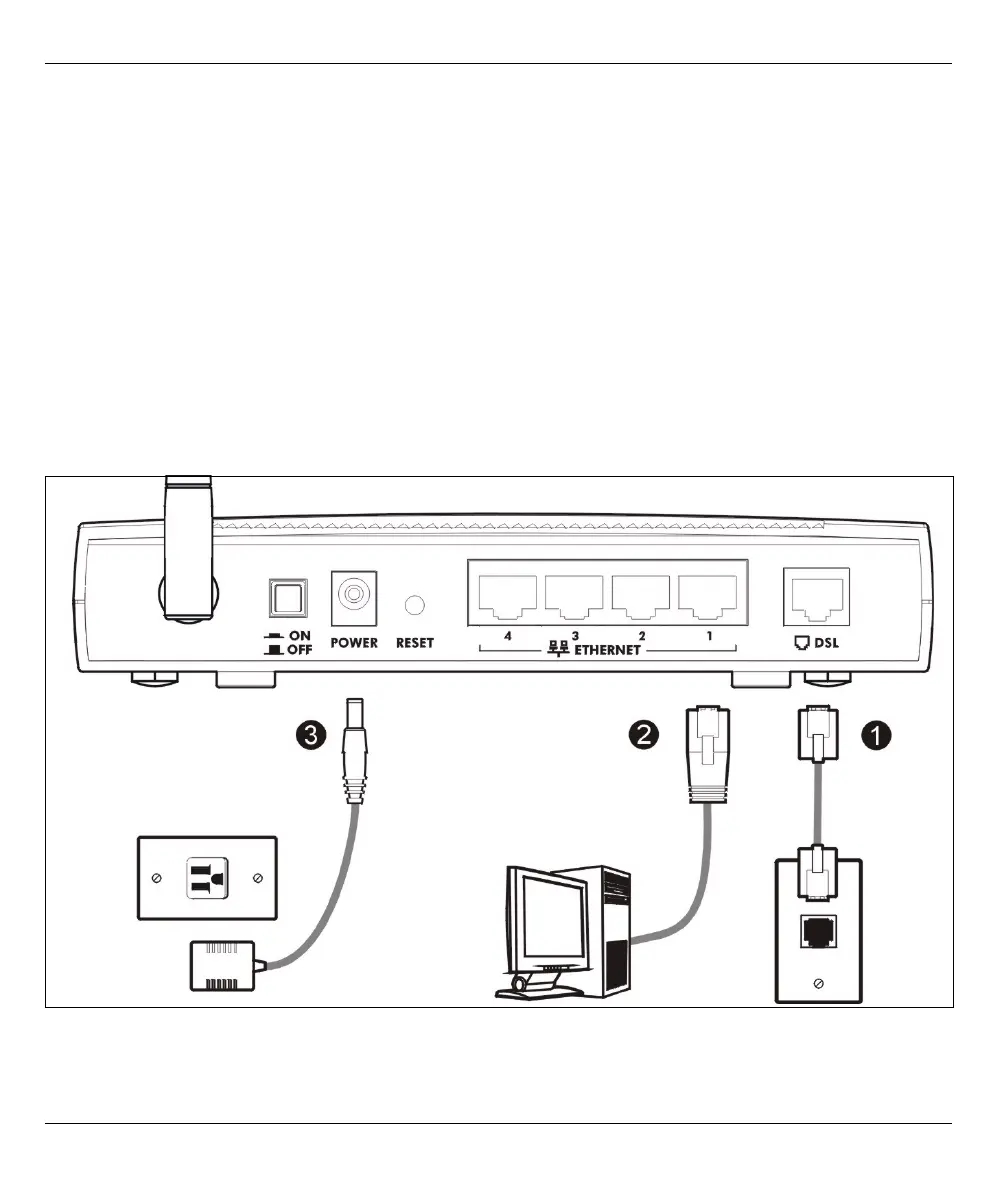

1 Hardware Connections
If you prefer to see a multi-media animation of how to make hardware connections, see the installation tutorial
on the included CD.
1DSL: Use a telephone wire to connect your P-660HW-T v2’s DSL port to a telephone jack (or to a splitter, if
one is already installed).
To Next Page
