2easy VULCAN DT821 - 13. Electric Lock Connection; Door Lock Control with Internal Power

2 EASY
-26-

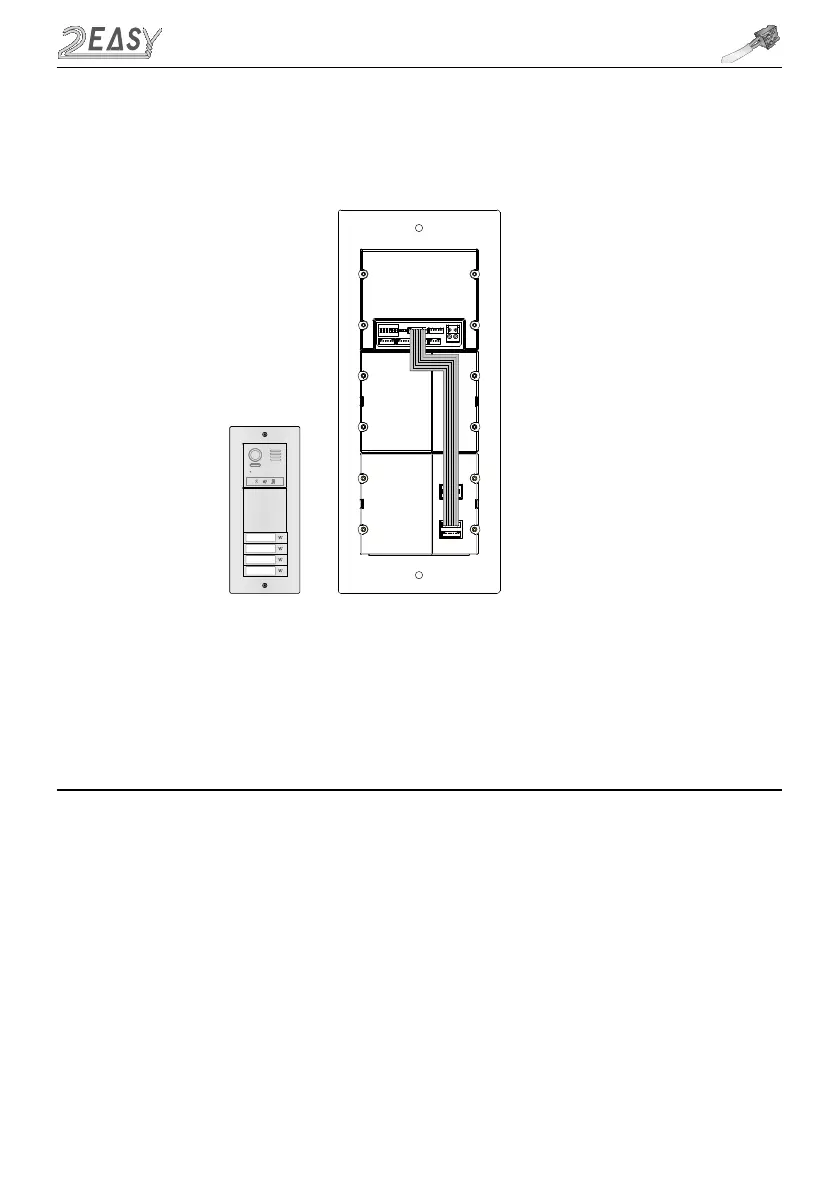

MODULE CONNECTION
• VD and BL and S4 module
IN
DIP
OUT
CN/KMB
13. Electric Lock Connection
1) Door Lock Controlled with Internal Power
1. The door lock is limited to 12Vdc, and holding current must be less than
250mA when using internal power
2. The Unlock Mode Parameter must be set to 0 (default)
3. Jumper set to 1-2 position for power-off-to-unlock type (Normally closed);
set to 2-3 position for power-on-to -unlock type (Normally open).
4. Default Unlocking time is 5 sec, See page 12 for different times
settings
