Chapter 7 Brightness / Sharpness (Colour) Control Switch Settings (continue)
7.3.2 For wire length between 1,200 to 1,500 m (3,937 to 4,920 ft.) - (between the Mixer
and Signal Processor)
Depending on the choice of Camera, DVR, and Monitor, the users may wish to adjust the
Sharpness (Colour) and Brightness of the images to suit their particular requirements.
To improve the Sharpness (Colour) and Brightness of the images, put the Control Switches

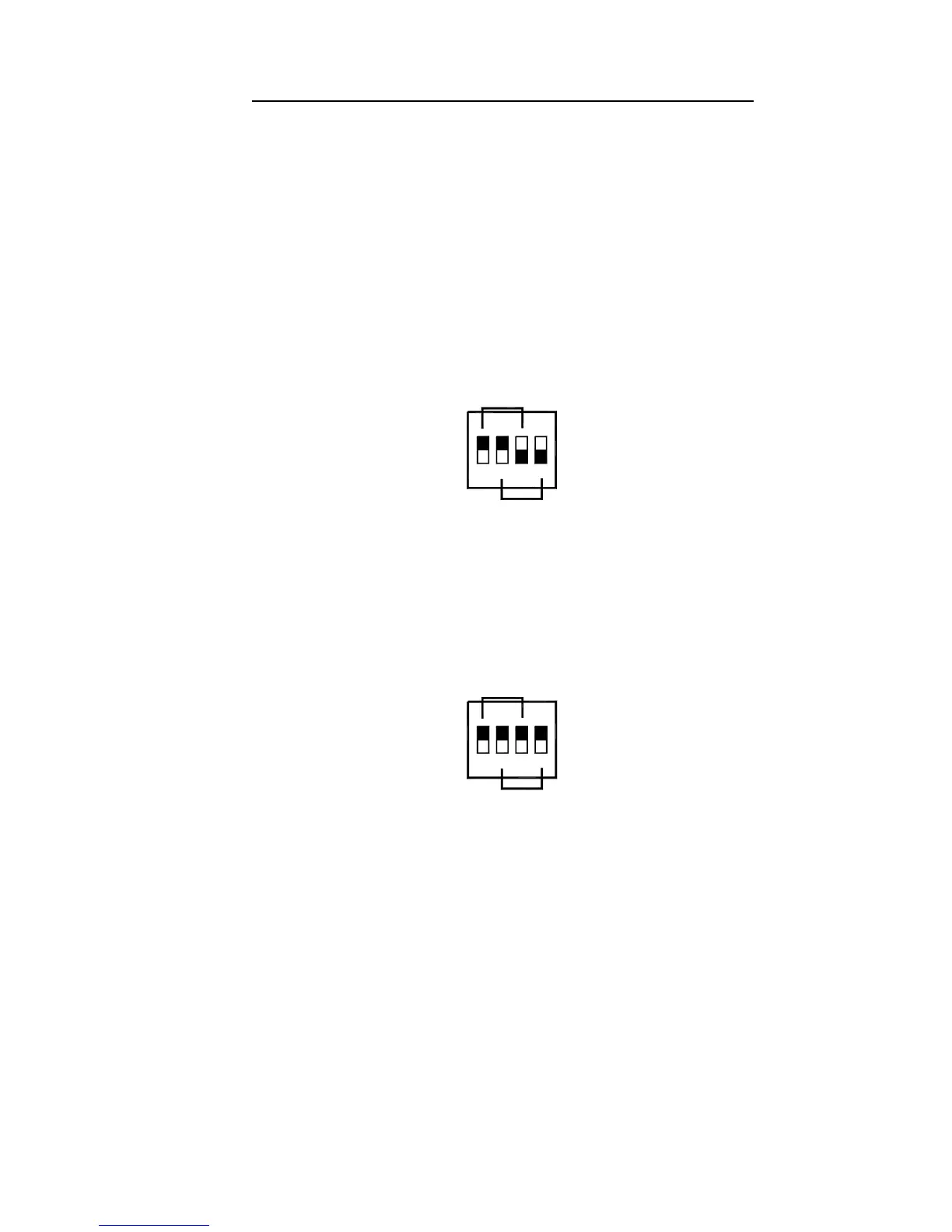

(Dip Switches) 1 and 2 to “UPPER” position, as shown in Fig. 7.3.2.1.
UPPER Position------->
LOWER Position------>
Fig. 7.3.2.1
To further improve the Sharpness (Colour) and Brightness of the images, put the Control
Switches (Dip Switches) 1, 2, 3, and 4 to “UPPER” position), as shown in Fig. 7.3.2.2.
UPPER Position-------->
LOWER Position------>
Fig. 7.3.2.2
SHARPNESS
BRIGHTNESS
ON
4
32
1
To Next Page
