Chapter 1 Introduction of 2Y-LINK Technology (continue)
Wide range of cables can be used for CCTV system installation.
A. One Cat.5 unshielded cable can connect four cameras, without interference with each
other
B. Bell cable/UTP cable from AWG24 to AWG 18 possible
C. Multi-core wire cable consists of several pairs of twisted or untwisted, shielded or
unshielded cable, like telephone cable, can be used without interference with each
other
D. Different cable types can be used in mixed combination to achieve easy installation
and cost reduction

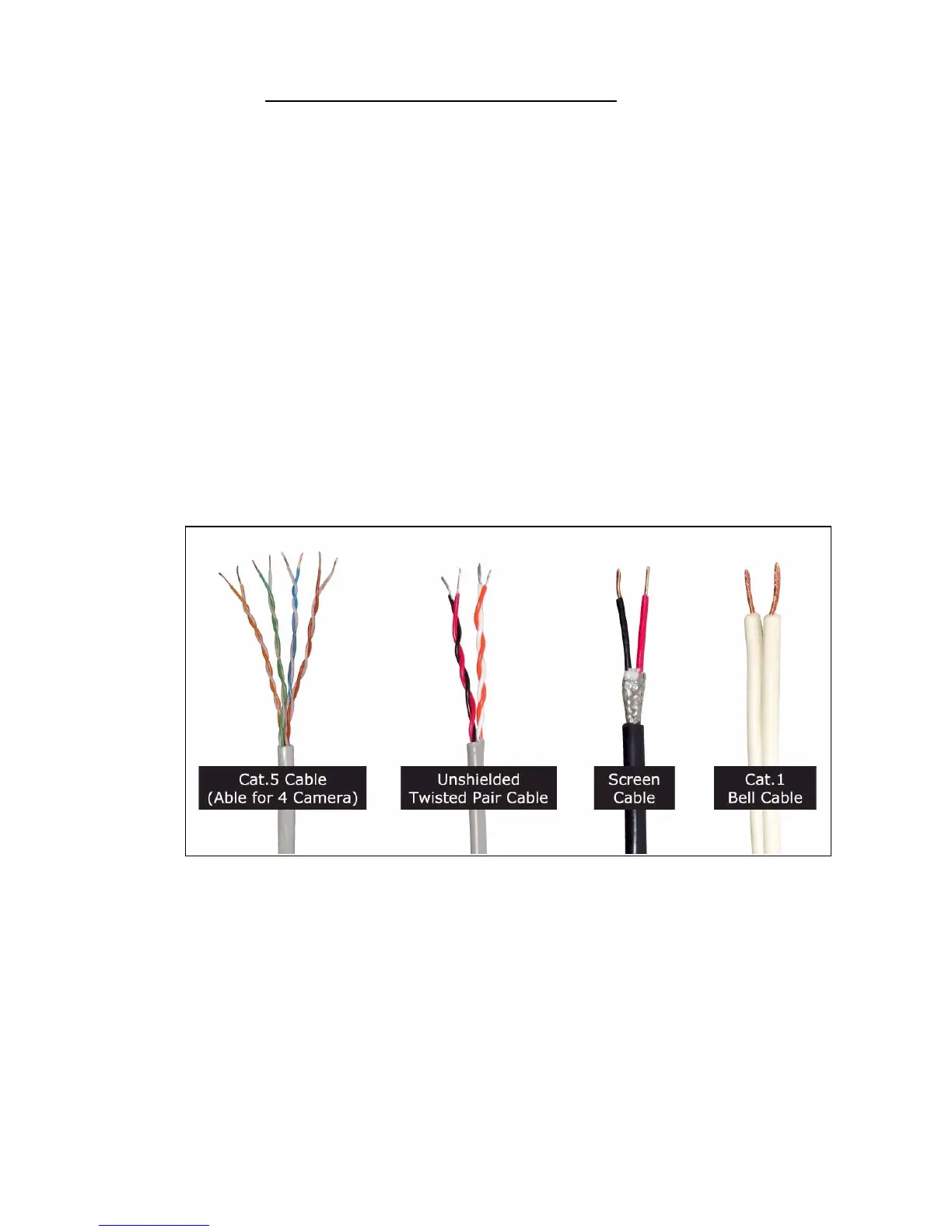

E. Commonly used wires and cables adopted by 2Y-LINK Technology for
multi-functional application is shown in Fig 1.2.
Fig.1.2
