46 CHAPTER 4: CONFIGURING THE SWITCH
Guidelines for Creating Trunks
■ Any port on the Switch can be used for creating a
trunk.
■ This switch supports a maximum of four trunks.
■ Each trunk may contain up to four members.
■ A port may only be a member of one trunk at any
one time.
■ All ports in a trunk must be configured in an
identical manner, including communication mode
(that is, speed, duplex mode and flow control).
Four tabs are available on the Port Link Aggregation
page:
■ Summary
■ Create
■ Modify
■ Remove
Summary
Use the Summary tab to display Group ID, Port
members, and Link Type for a list of link aggregate
groups.

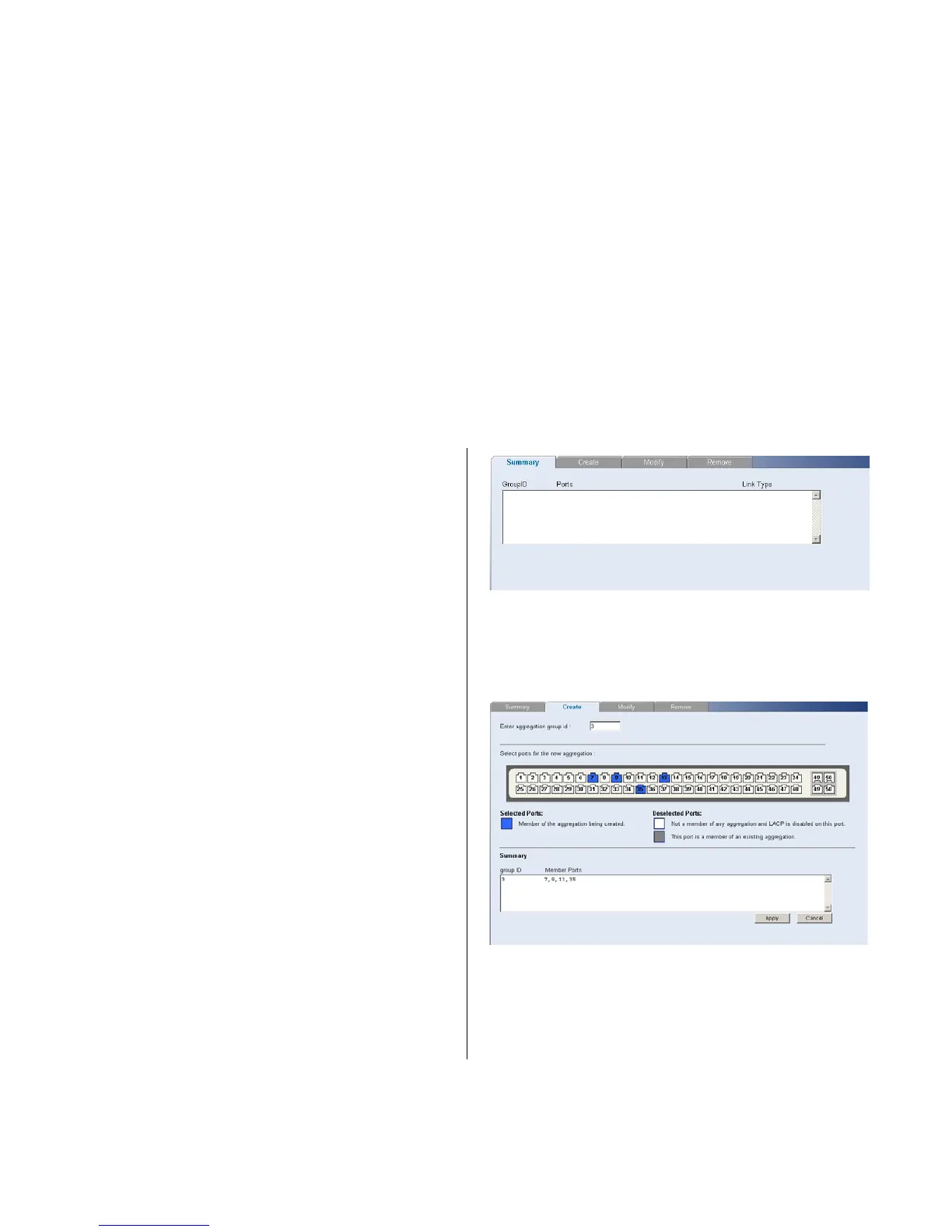

Figure 41 Link Aggregation Summary Screen
Create
Use the Create tab to add ports to a group
membership.
Figure 42 Link Aggregation Create Screen
To create a new link aggregation group:
1 Enter a link aggregation group ID in the box field.
2 Select the ports to add to the goup.
3 Click Apply.
