28 CHAPTER 1: SWITCH 7750 COMPONENTS

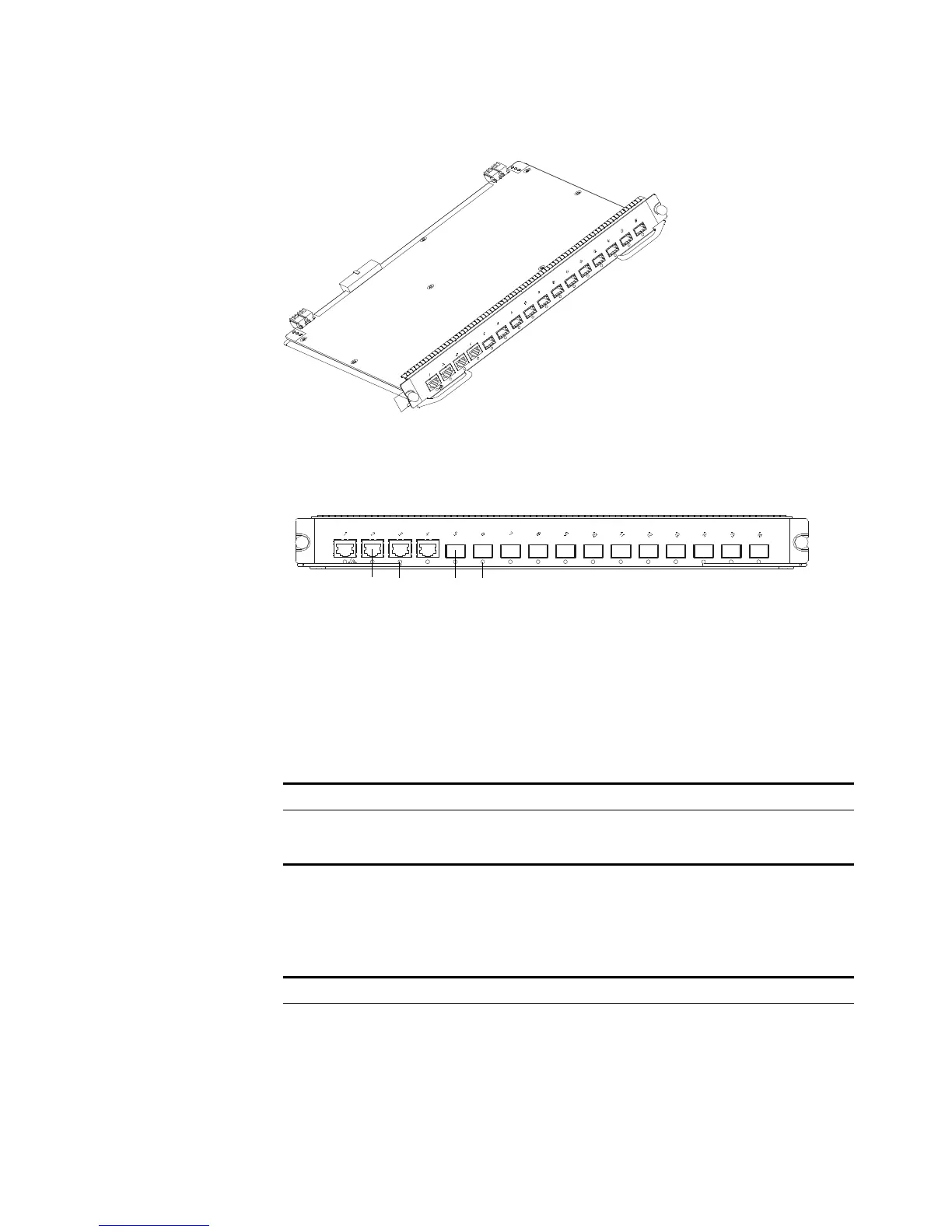

Figure 24 12-port 1000BASE-X SFP and 4-port 10/100/1000BASE-T Module
Figure 25 illustrates the front panel of the 12-port 1000BASE-X SFP module.
Figure 25 Front Panel of the 12-port 1000BASE-X SFP and 4-port
10/100/1000BASE-T Module
1 SFP port
2 SFP port LED
3 Ethernet port
4 Ethernet port LED
Table 36 describes the 12-port 1000BASE-X SFP and 4-port 10/100/1000BASE-T
module LEDs.
Table 37 lists specifications of the 12-port 1000BASE-X SFP and 4-port
10/100/1000BASE-T module.
Tabl e 36 12-port 1000BASE-X SFP and 4-port 10/100/1000BASE-T Module LEDs
LED Description
LINK/ACT Off — The port is not operating.
On — The port is operating.
Green flashing — The port is transmitting and receiving data.
Tabl e 37 Specifications for the 12-port 1000BASE-X SFP and 4-port
10/100/1000BASE-T Module
Specification Description
CPU MPC8241
BootROM 512 KB
SDRAM 64 MB
Dimensions (L x W) 366.7 x 340 mm (14.5 x 13.4 in)
Power consumption 35 W
Connector RJ-45, LC
3C168917
3C168917
