Accessing the Setup Wizard 31
Bridge Mode (for a single PC) (RFC 1483 Bridged Mode)
To set up the Router for use with an RFC1483 bridged connection:

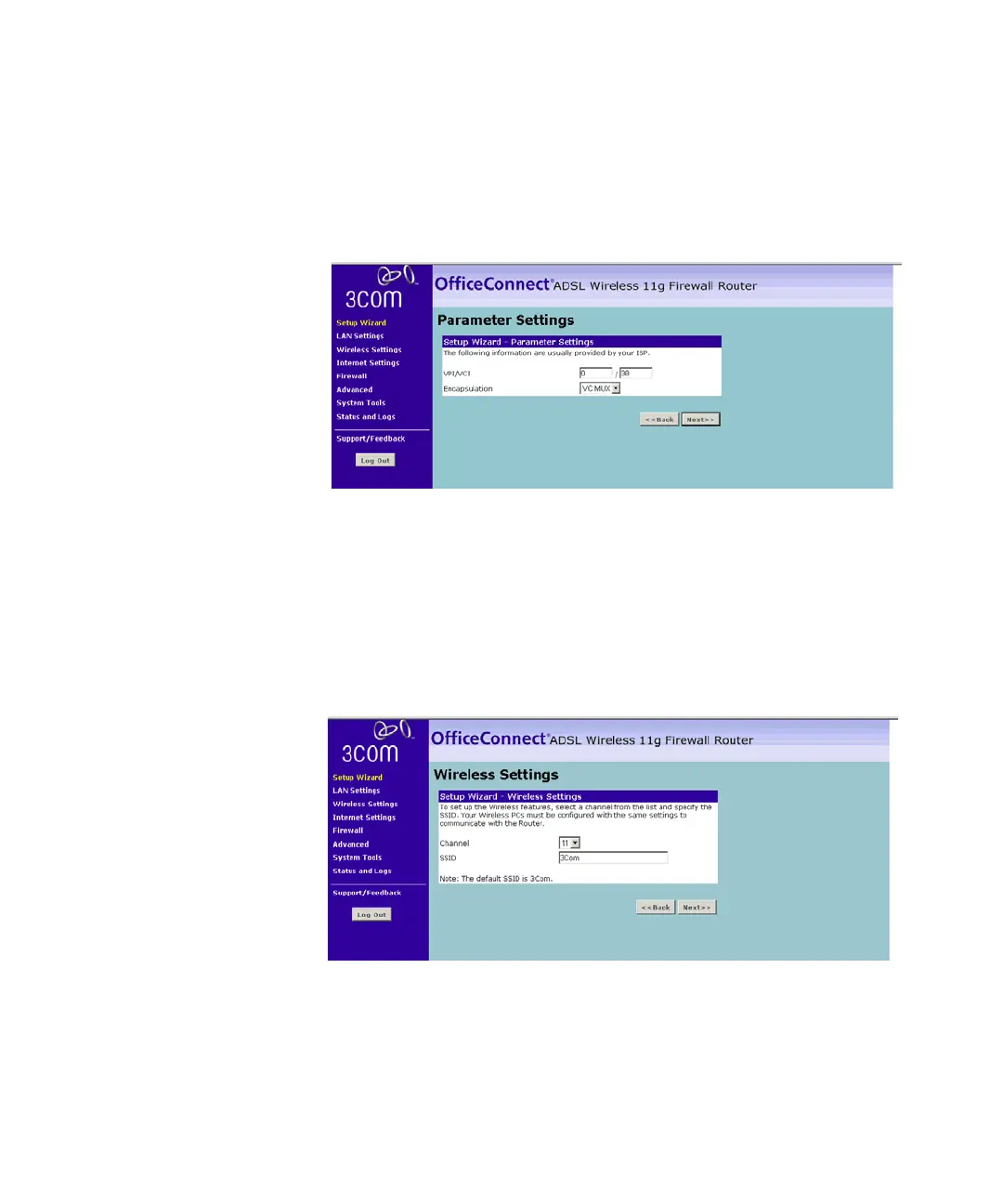

Figure 19 Bridged Mode Configuration Screen
1 Enter your VPI and VCI information in the VPI/VCI text boxes.
2 Select the encapsulation type (LLC or VC MUX) in the Encapsulation
drop-down list. This information will have been provided to you by your
ISP.
3 Check all of your settings, and then click Next. The Wireless Settings
screen is displayed.
Figure 20 Wireless Settings Screen
4 Set the Wireless Channel you want to use from the Channel drop-down
list.
5 Specify the SSID to be used by your Wireless Network in the SSID field. If
there are other wireless networks in your area, you should give your
wireless network a unique name.
