3D innovations DeskCycle2 - Assembly; Install the Large Leg; Install the Small Leg

2

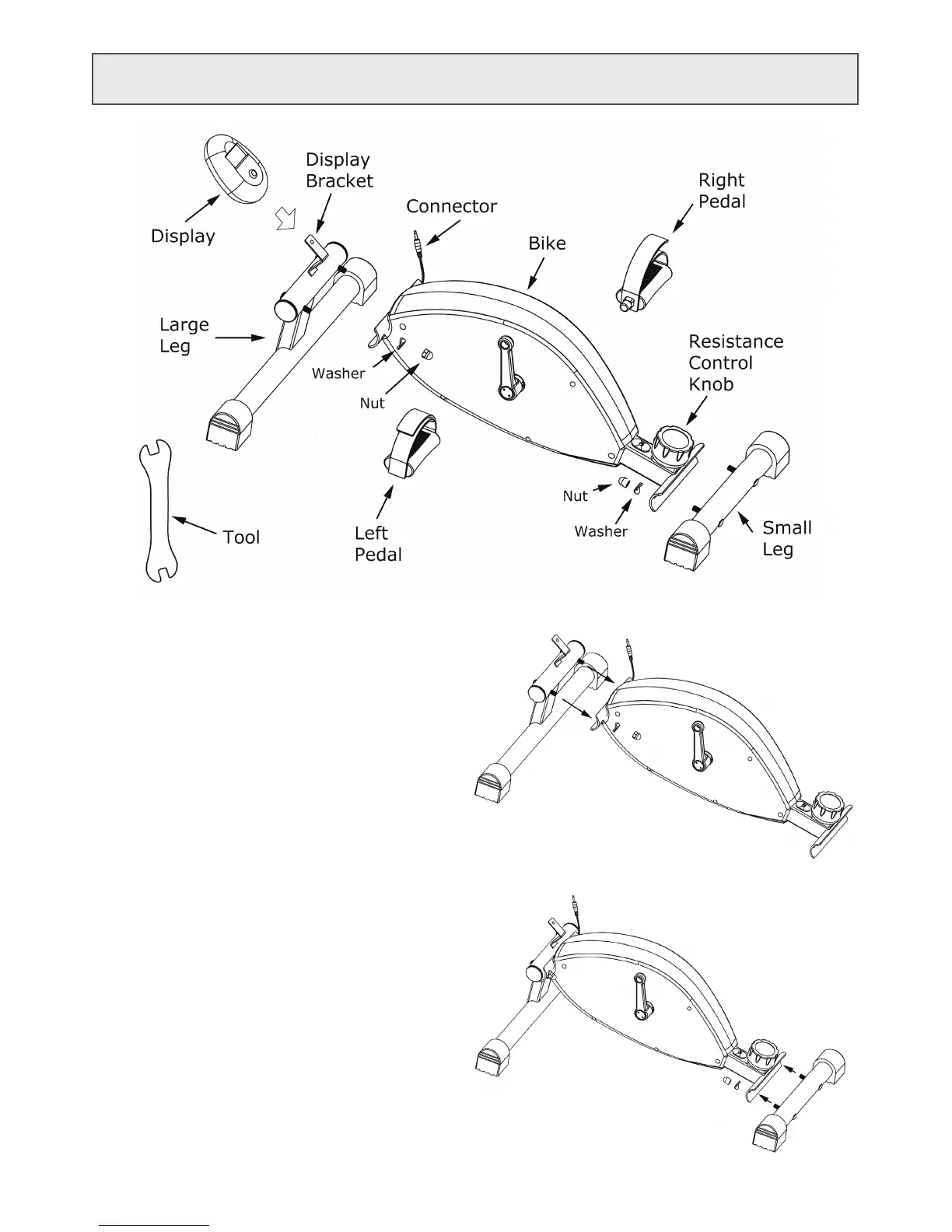

Assembly
Step 2: Install the Small Leg
• Remove the nuts and washers from the Small Leg.
• Align the bolts of the Small Leg with the holes in the
Bike, and push the bolts through the holes.
• Attach a Washer and a Nut to each bolt.
Do NOT tighten the nuts until step 3.
Step 1: Install the Large Leg
• Remove the nuts and washers from the Large Leg.
• Align the bolts of the Large Leg with the holes in the
Bike, and push the bolts through the holes.
• Attach a Washer and a Nut to each bolt.
Do NOT tighten the nuts until step 3.
