3DGence DOUBLE P255 - maintenance activities | version 07.2021

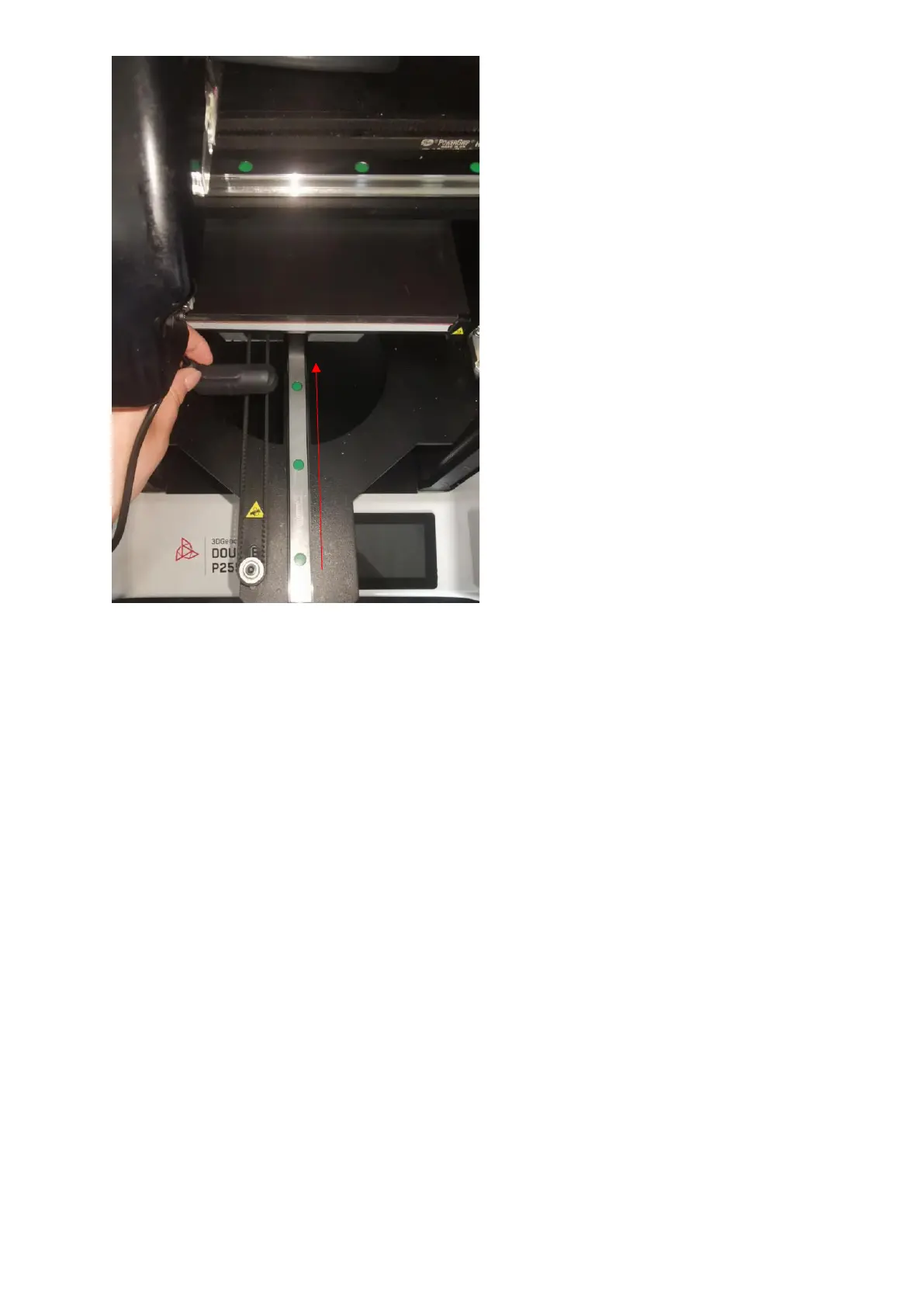

Fig.70 Measurement toothed belt on the Y axis
• Make the timing belt vibrate by vigorously jerking it like a guitar string.
• Check the voltage value on the tester and read the frequency value.
For a correctly tensioned Timing Belt on the Y axis, the measured value should be between 71-75 Hz.
If the measured tension value for tension belts is not within the specified ranges, please contact the 3DGence
Technical Support for assistance.
