3 Operation
3.1 Coaxial drive
3.2 Z-stack wheel
1
2

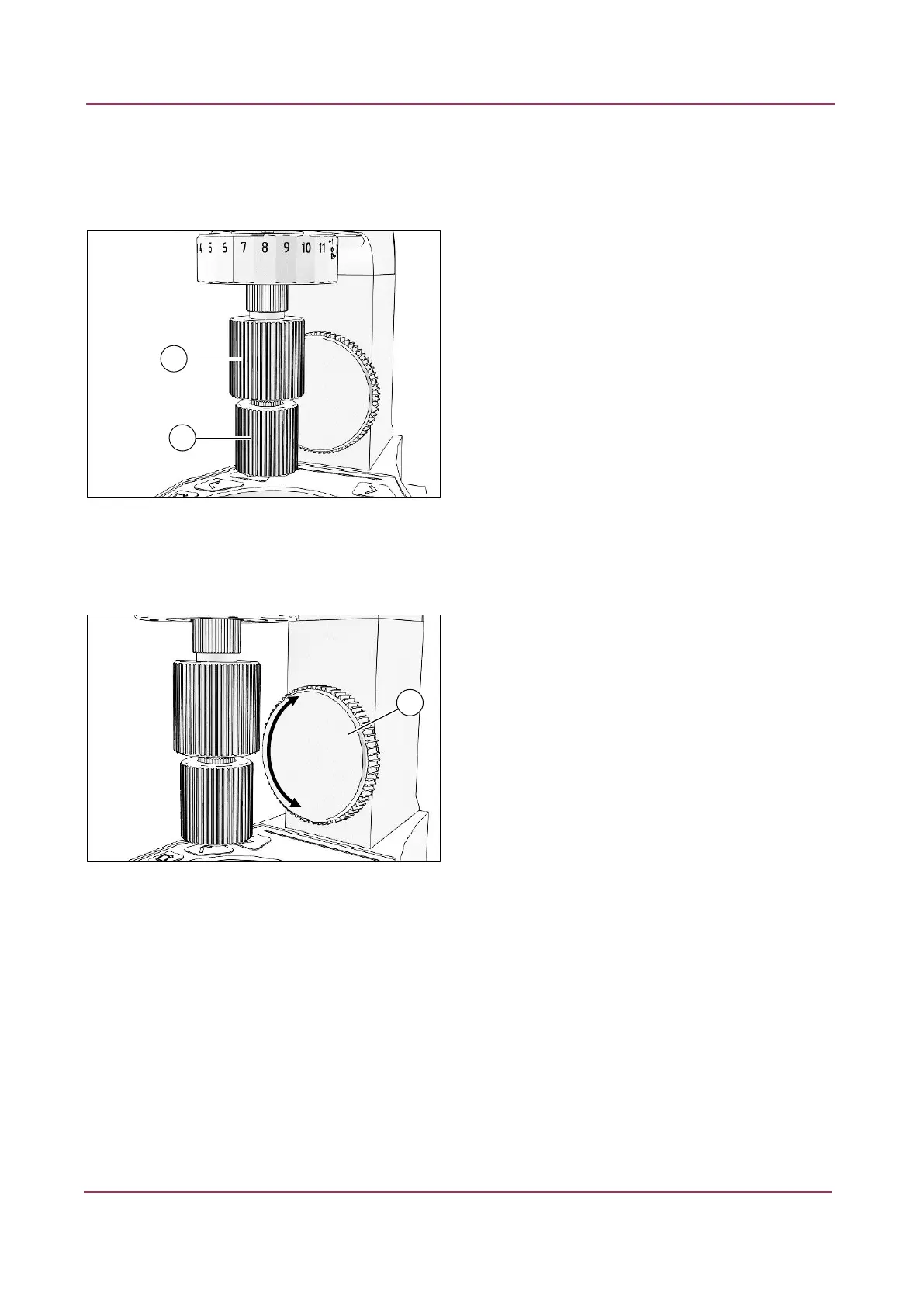

Y-axis: Turn the Y-knob (1) to move samples in the Y-
direction.
X-axis: Turn the X-knob (2) to move samples in the X-
direction.
The Z-stack wheel (1) serves for fine adjustment of
the Z-focus.
Turn the Z-stack wheel clockwise and/or counter-
clockwise until the focus is in the desired alignment.
1
