3M 3100 - Page 8

8 78-8127-6830-3-C
Instructions for Round Cables
Scotch
®
Linerless Rubber Splicing Tape 130C
Scotch
®
Heavy Duty Mining Tape 31
3M
™
Temflex
™
Vinyl Electrical Tape 1700P
3M
™
Temflex
™
Vinyl Electrical Tape 1700P
Scotch
®
Linerless Rubber Splicing Tape 130C
3M
™
Temflex
™
Electrical Vinyl Tape 1700P

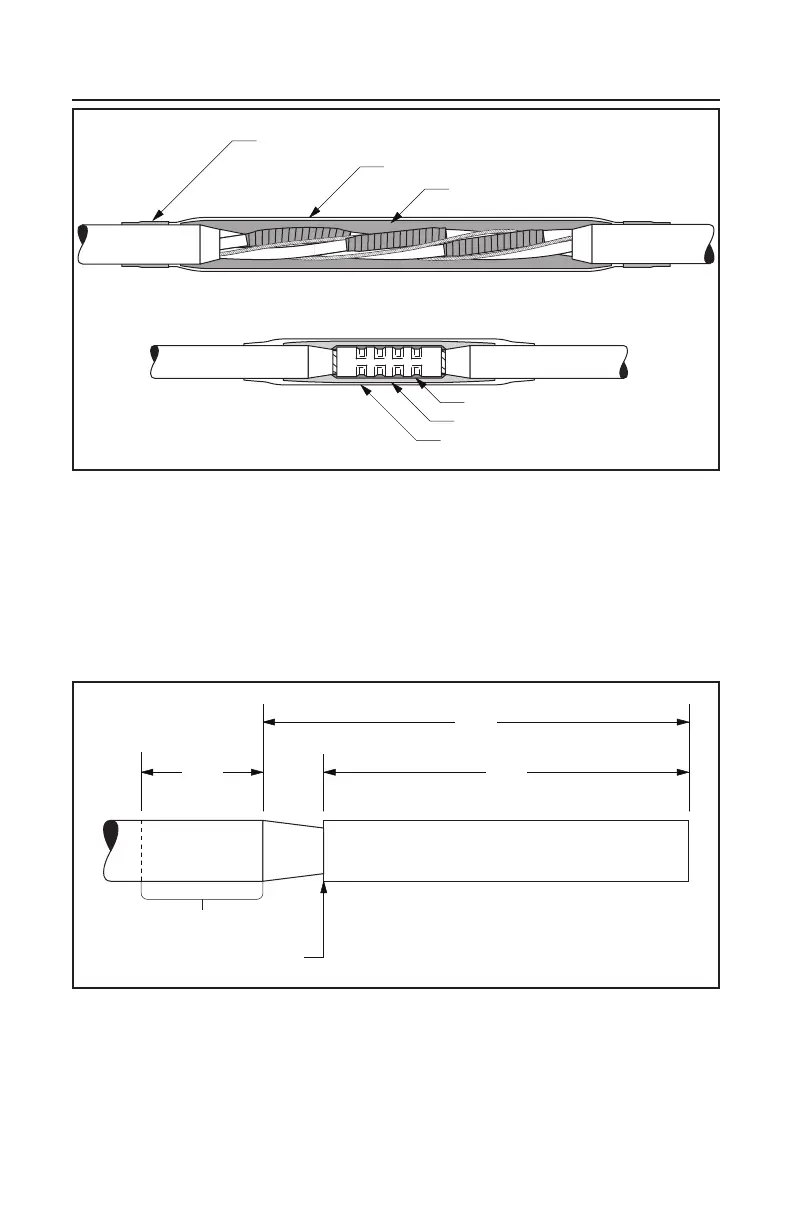

Figure 16
6.0 Prepare Cable
6.1 Position cable ends so that conductor color rotation matches.
6.2 Circle-cut cable jacket approximately 12" (305 mm) from each end. Be sure not
to damage cable conductors.
6.3 Measure approximately 14" (355 mm) from cable end and fully taper cable
jacket down to circle cut.
Circle cut cable jacket
12"
(305 mm)
14"
(355 mm)
Scuff & Clean
4"
(100 mm)
Figure 17
6.4 Remove approximately 12" (305 mm) of cable jacket.
6.5 Scuff and clean 4" (100 mm) of cable jacket beyond each split end.
6.6 Remove cable fillers.
