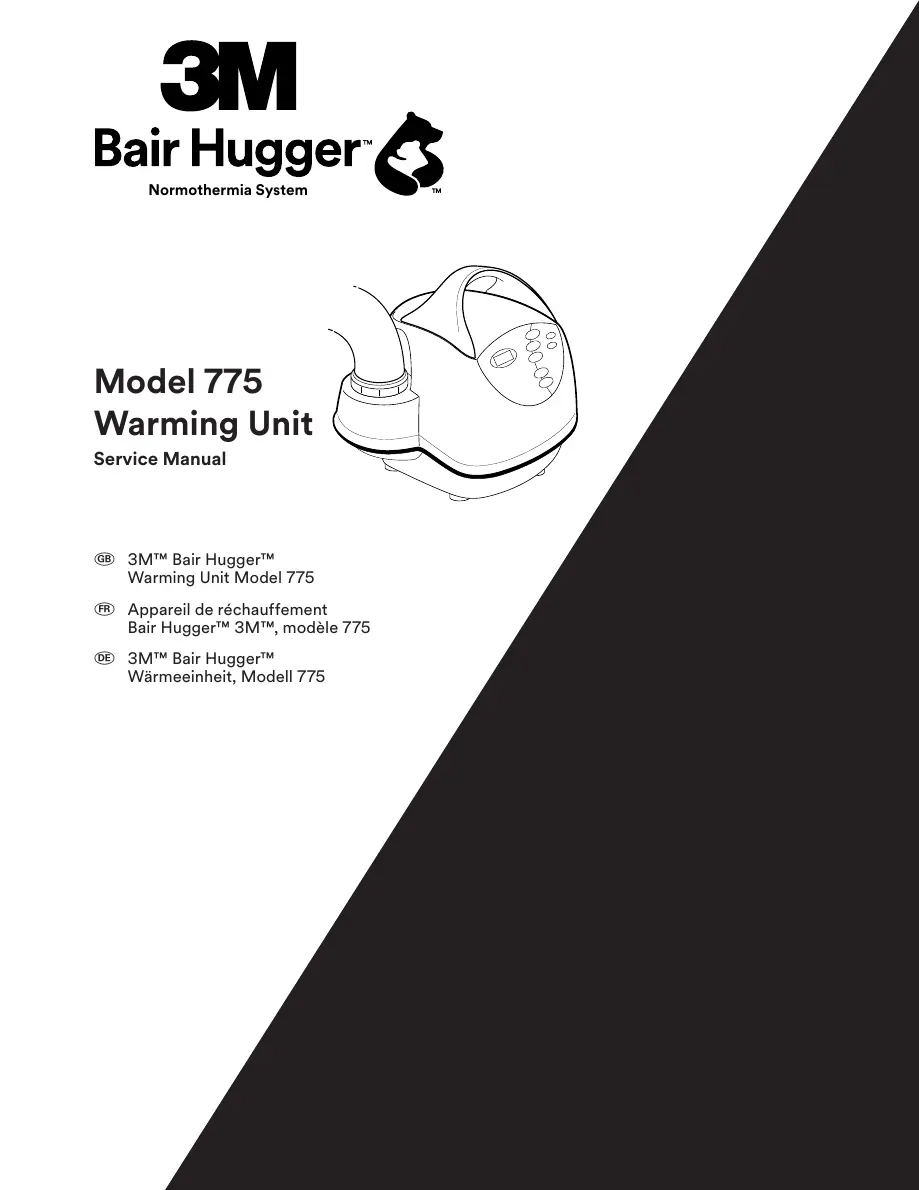

3M Bair Hugger 775 - Service Manual

Other manuals for 3M Bair Hugger 775

Operator's Manual21 pages

Questions and Answers

T
Todd LeeAug 17, 2025
What to do if the 3M Food Warmer airflow is occluded?
- W
  Wendy DouglasAug 17, 2025
  If the 3M Food Warmer's airflow is occluded, disconnect it from the power source and remove any obstructions from the warming unit hose. Ensure the hose end is correctly positioned in the hose card, referring to the Operator’s Manual for guidance. Also, inspect the bottom of the warming unit for air intake obstructions and replace the filter. Wait 30-60 seconds before reconnecting to the main power source. If no fault occurs, the warming unit is ready for use.
B
Bruce WilsonAug 20, 2025
What to do if 3M Bair Hugger 775 hose end temperature is too high?
- S
  stanleygonzalezAug 20, 2025
  If your 3M Food Warmer's hose end temperature exceeds the set point by at least 5°C for approximately 5 minutes, and you suspect a faulty control board, unplug the warming unit and wait 30-60 seconds before reconnecting it to the main power source. If the issue persists, the control board needs replacement. After replacement, calibrate the unit and return it to service.
M
Michael SmithAug 22, 2025
What to do if 3M Bair Hugger 775 Food Warmer hose end temperature is too low?
- E
  eroweAug 22, 2025
  If the 3M Food Warmer hose end temperature is at least 10°C below the set point for approximately 10 minutes, and you suspect a faulty control board, heater, or blower, unplug the warming unit and wait 30-60 seconds before reconnecting it to the main power source. If the issue persists, consider replacing the control board, heater, or blower. Remember to calibrate the unit and return it to service after any replacements.
C
Christine RochaAug 25, 2025
What to do if 3M Food Warmer shows intermittent elbow sensor failure?
- J
  Justin WilliamsAug 26, 2025
  If you experience intermittent elbow sensor failure with your 3M Food Warmer, disconnect it from the power source and allow the warming unit to cool. Wait 30-60 seconds before reconnecting to the main power source. If these faults continue to occur during use and the airflow is not occluded, replace the elbow sensor.
M
Melissa RichAug 28, 2025
What to do if 3M Bair Hugger 775 hose end sensor fails?
- L
  Lynn GordonAug 28, 2025
  If you are experiencing warming unit hose end sensor failure at the patient end, moisture issues, intermittent hose sensor failure, or high heat with your 3M Food Warmer, disconnect it from the power source and allow it to cool. Wait 30-60 seconds before reconnecting to the main power source. If no fault occurs, the warming unit is ready for use. If these faults continue to occur during use, replace the hose.
S
Stephanie RichardsonAug 30, 2025
How to fix EEPROM error on 3M Bair Hugger 775 Food Warmer?
- D
  davisharoldAug 30, 2025
  To address an EEPROM error in your 3M Food Warmer, reset the microprocessor by pressing and holding the Alternative Mode button and Standby buttons simultaneously, then connect the unit to the power source. Release the buttons when the Standby light remains on. After this, calibrate the unit and return it to service.
A
Angela CollinsSep 2, 2025
Why is my 3M Bair Hugger 775 making a whistling sound?
- E
  Evelyn FrancoSep 2, 2025
  If your 3M Food Warmer is making a whistling sound during operation, tighten all screws. Check for holes in the warming unit hose. Inspect for a loose warming unit hose collar and ensure the presence of O-rings. Also, clean the filter gasket and mating surface.
C
cbenjaminSep 5, 2025
What to do if 3M Food Warmer hose is disconnected?
- L
  Lauren ParkerSep 5, 2025
  If the warming unit hose is disconnected from the warming unit (FC-007 only), reattach the warming unit hose, then calibrate and return the 3M Food Warmer to service.
A
Amanda DixonSep 8, 2025
What to do if 3M Food Warmer control board is defective?
- H
  Heather HarrisSep 8, 2025
  If the 3M Food Warmer has a defective control board, replace it, then calibrate and return to service.
S
stuartaaronSep 10, 2025
How to troubleshoot a faulty heater in 3M Bair Hugger 775 Food Warmer?
- G
  Gregory MaciasSep 12, 2025
  If the 3M Food Warmer has a faulty heater element or a faulty control board, verify that the fan runs in ambient conditions. Check the resistance of the J4 connector on the control board; the resistance may be up to 400 Ohms (White to black, White to blue, White to yellow). If it's 'open,' replace the heater. Otherwise, replace the control board, then calibrate and return to service.

Summary

Introduction and System Overview

System Description

Describes the components and function of the system.

Indications for Use

Outlines the intended uses and patient populations for the system.

Symbol Definitions

Explains the meaning of various symbols found on product labeling.

Safety, Handling, and Servicing Precautions

Signal Word Consequences and Contraindications

Details warning levels and conditions to avoid for safe operation.

General Warnings and Cautions

Highlights hazardous situations and minor injury risks.

Proper Use, Maintenance, and Inspection

Covers correct usage, maintenance, and essential post-repair safety checks.

Warming Unit Operation Modes

Power-On-Reset and Startup

Describes the automatic self-test and initialization sequence upon power-up.

Temperature and Airflow Settings

Explains available temperature settings, delivery ranges, and fan speed.

Standby Mode Functionality

Covers the unit's state when idle, with blower and heater off.

Faults, Diagnostics, and Service Access

Fault Conditions and Over-Temperature

Lists common fault conditions and the response to over-temperature events.

Alternative Modes and Calibration

Introduces special modes for service, calibration, and accessing system info.

Accessing and Exiting Service Modes

Provides instructions on how to enter and leave the various alternative modes.

System Testing and Fault Logging

Over-Temperature Detection Test

Details the procedure to verify the over-temperature shutdown functionality.

Fault Code Log Management

Explains how to view, clear, and interpret recorded fault codes.

Maintenance and Troubleshooting Resources

Fault Code Table and Meanings

Lists fault codes, their possible causes, and solutions.

Usage Timers and Filter Replacement

Covers viewing hour meters, operating timers, and replacing the air filter.

Component Replacement Procedures

Hose and Fuse Replacement

Instructions for detaching, reattaching hoses, and replacing fuses.

Warming Unit Disassembly;Reassembly

Steps for taking the warming unit apart and putting it back together.

Unit Care and Troubleshooting

Cleaning, Maintenance, and Storage

Guidelines for cleaning, routine maintenance, and storage.

Troubleshooting Persistent Faults

Guidance for resolving persistent fault conditions.

Technical Support and Service Returns

Technical Support and Order Placement

Contact information and procedures for ordering parts or service.

Returning Units for Service

Instructions for packaging and shipping a unit for repair.

Electromagnetic Compatibility Specifications

Emissions and Immunity Compliance

Details electromagnetic emission and immunity compliance and guidance.

Certifications, Diagnostics, and Maintenance Schedule

Certifications, Classifications, and Diagnostics

Lists regulatory approvals, device classifications, and technician diagnostic capabilities.

Maintenance Checklist Items

Provides a schedule for filter inspection and temperature calibration.

Physical, Safety, and Electrical Specifications

Physical Characteristics

Details dimensions, weight, noise level, hose length, and filter type.

Safety System and Electrical Details

Describes the thermostat, alarm system, overcurrent protection, and electrical components.

Maintenance Log

Maintenance Log Entry

A section for recording maintenance actions performed on the unit.

3M Bair Hugger 775 Specifications

General

Over-temperature Protection	Yes
Audible Alarm	Yes
Visual Alarm	Yes
Model Number	775
Product Type	Patient warming system
Brand	3M
Intended Use	To prevent and treat hypothermia in patients
Size	Varies by model
Compatibility	Compatible with various 3M Bair Hugger blankets
Sterility	Non-sterile
Type	Forced Air Warmer
Temperature Range	Ambient to 43°C (109.4°F)
