48iB2 / CS - 56i B2 / CS Engine
more infos: www.3w-modellmotoren.de

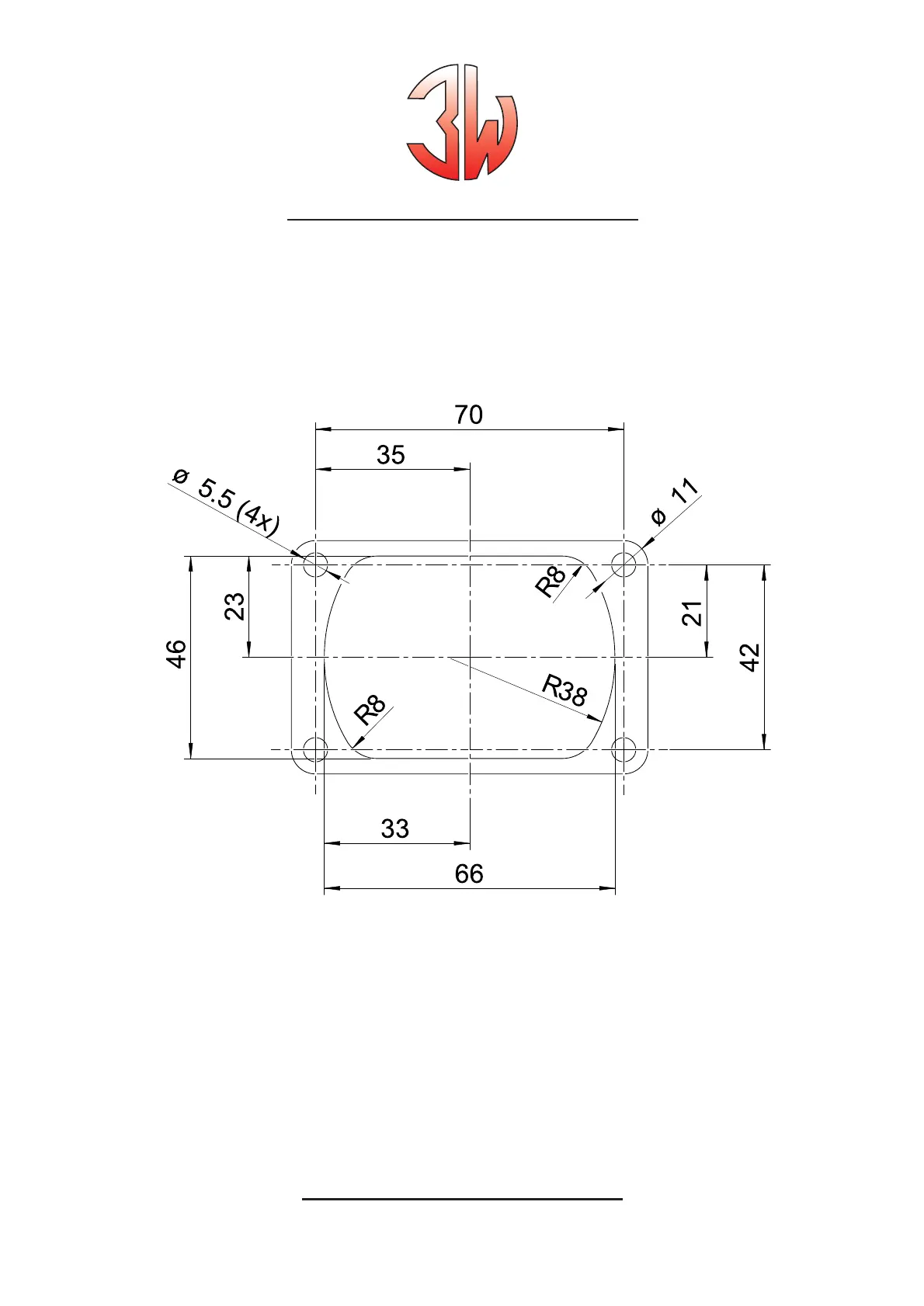

mounting bolt pattern
ATTENTION:
this drawing is in 1:1 size. disable any Acrobat print setting to fit it into paper size.
