Installation
CONNECT TO AN ETHERNET SWITCH

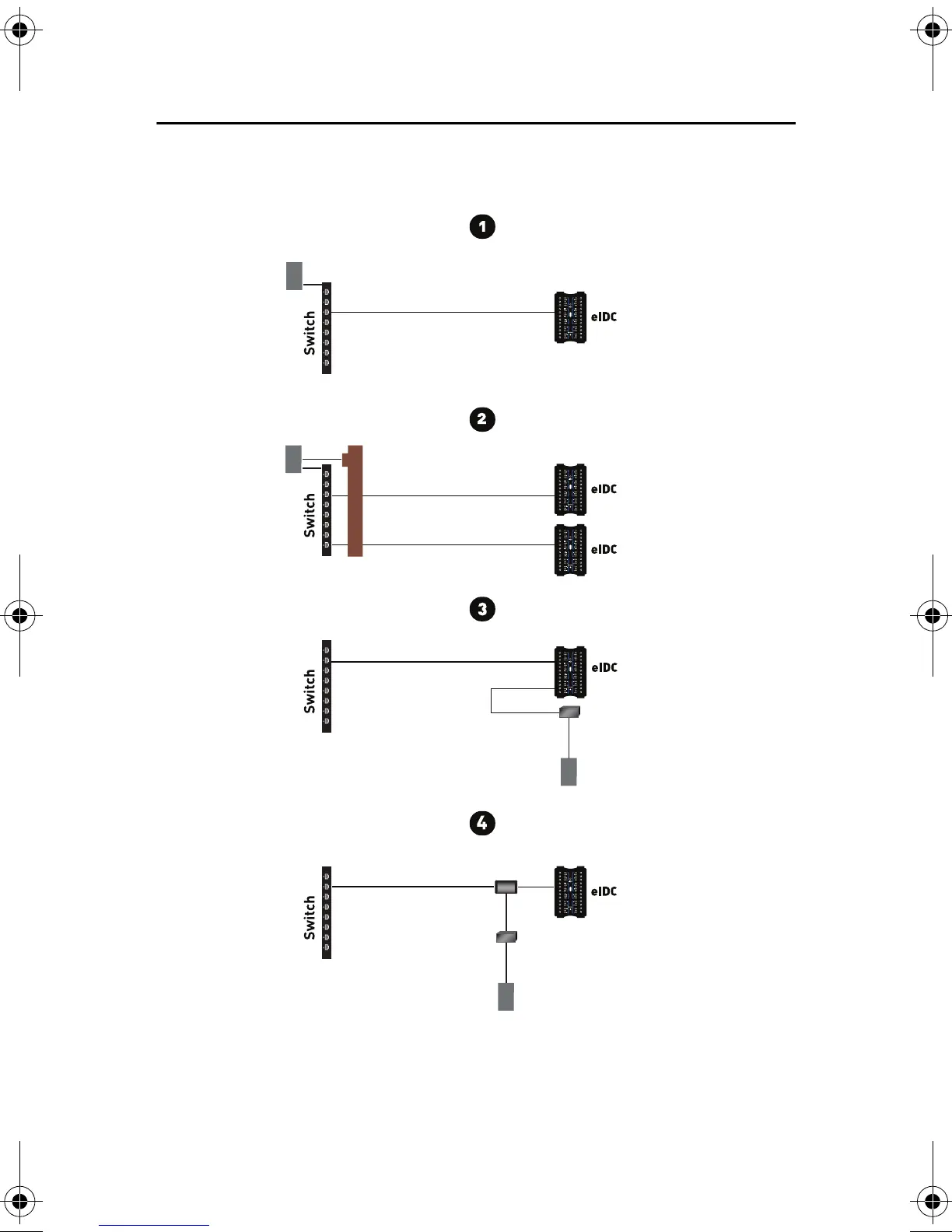

Figure 1. Sample System Configuration
IMPORTANT: For Options 1, 2, and 4 do not add an additional power
supply to terminals PWI
+
or PWI
-
(refer to Figure 2) on the eIDC.
UPS
Power Option
PoE
CAT 5/6
Power Option
PoE
CAT 5/6
non-PoE
CAT 5/6
Power Option
UPS
Power Option
non-PoE
CAT 5/6
PoE
UPS
Power Injector
Midspan PoE Injector
UPS
External
Power Supply
24 VDC, 1Amp
External
Power Supply
24 VDC, 1Amp
