4BARCODE Technology 4B-2044A Series User Manual

6.
7.
8.
9.

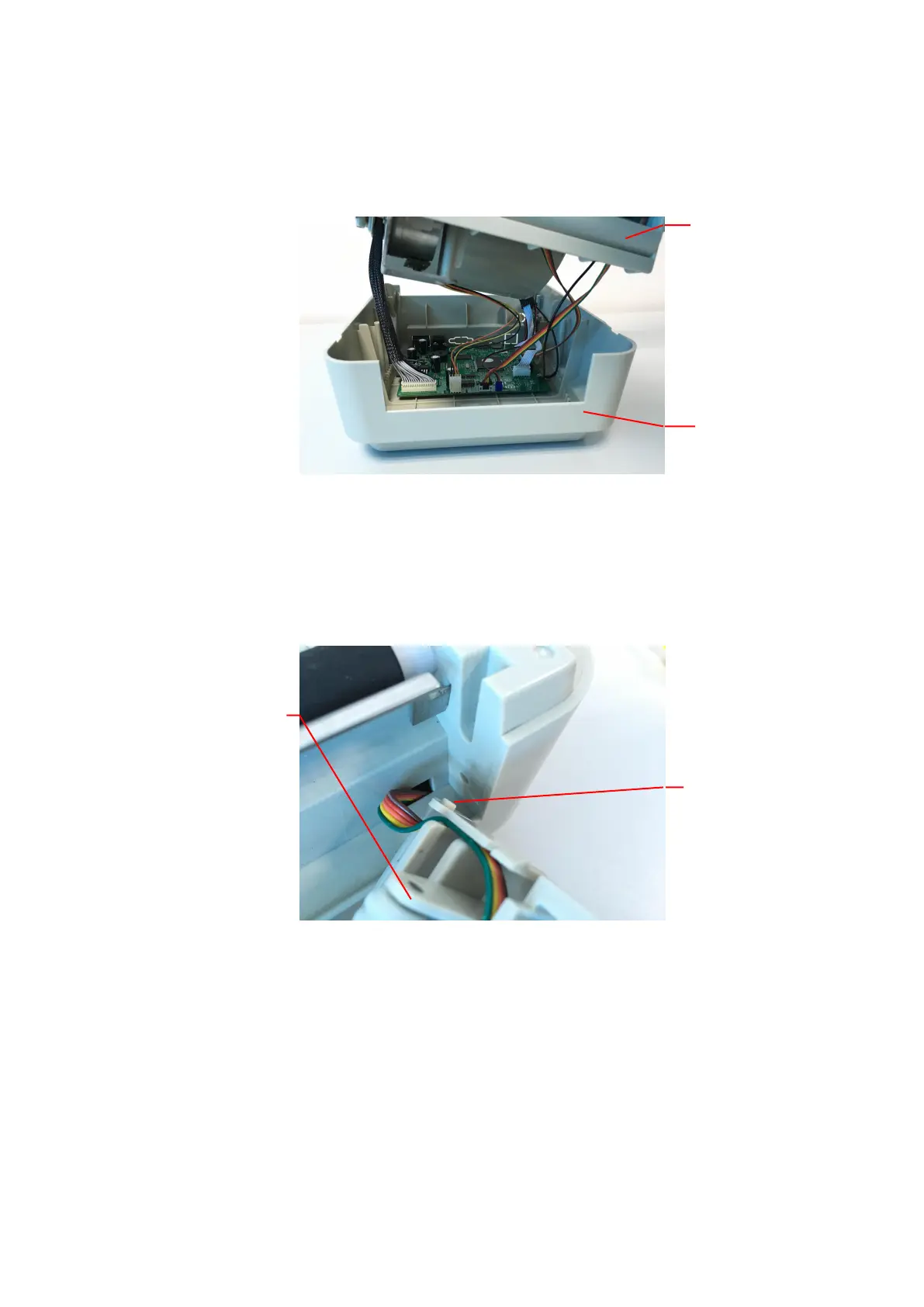

Hold the lower cover and lift up the top cover opening levers to separate the lower
inner cover from the lower cover.
Lower inner
cover
Lower cover
Thread the harness red connector through the cable hole at the front side of lower
inner cover. Plug the red peel off module harness connector at the location JP17
on the main board. Place lower inner cover to the lower cover. Install the peel-off module to
the lower inner cover slot.
Peel-off module
assembly
Install one side first
and install another
side
Gently push peel-off panel to lock to the lower inner cover.
Reassemble parts in reverse procedures after installing the module.
10
