OWL620 / OWL610

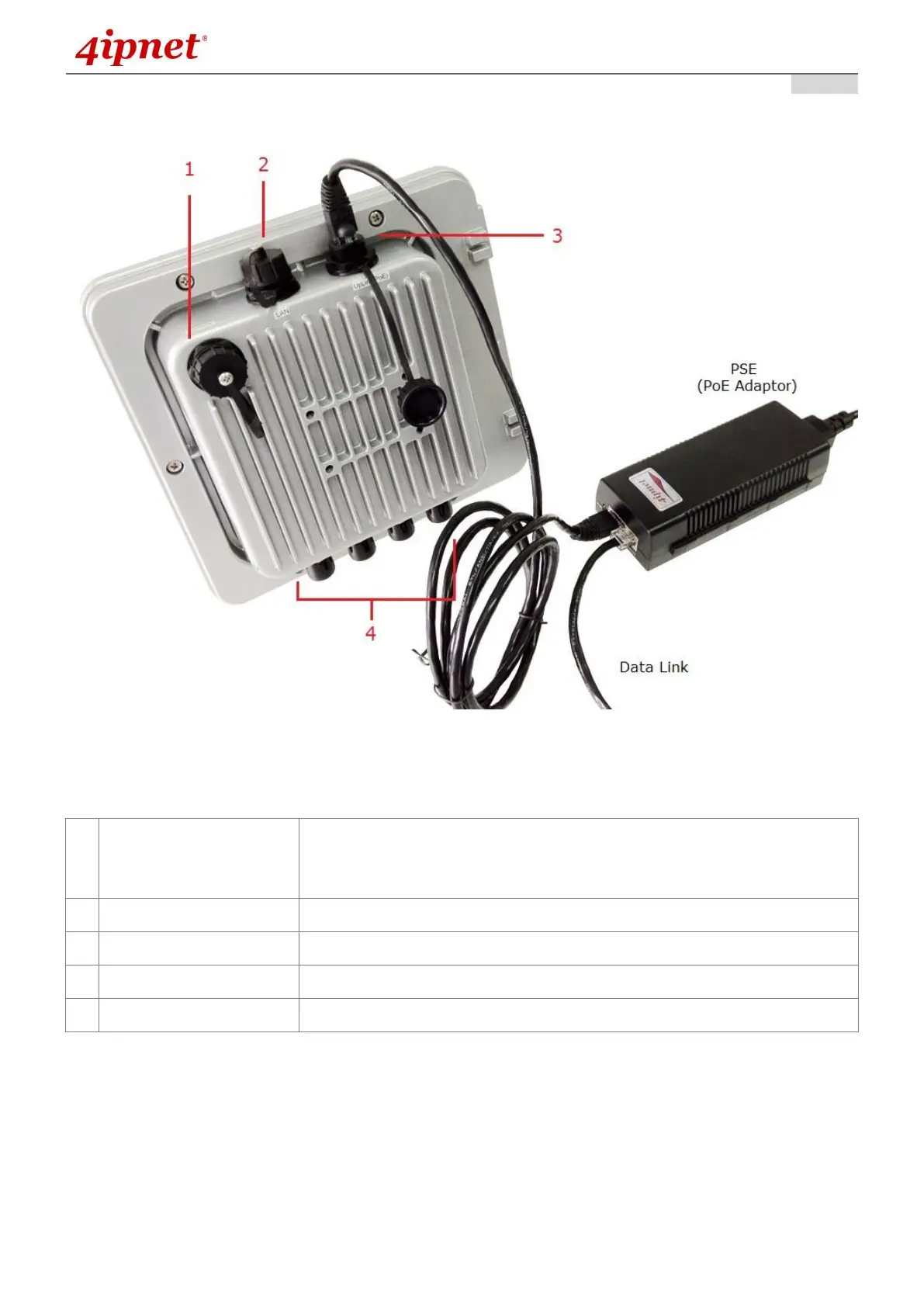

Figure 3 OWL620 / OWL610
1
Console
The system can be configured via a serial console port. The administrator
can use a terminal emulation program such as Microsoft’s Hyper Terminal
for troubleshooting purposes.
2
Ethernet LAN
Attach Ethernet cables here for connecting to the wired local network.
3
PoE Connector
For connecting to the Power Sourcing Equipment (PSE).
4
N-type Connector x 2
For connecting to an antenna (OWL610).
4
N-type Connector x 4
For connecting to an antenna (OWL620: RF Card A x 2, RF Card B x 2).
