MIRAGE Line Compressors Instruction Manual

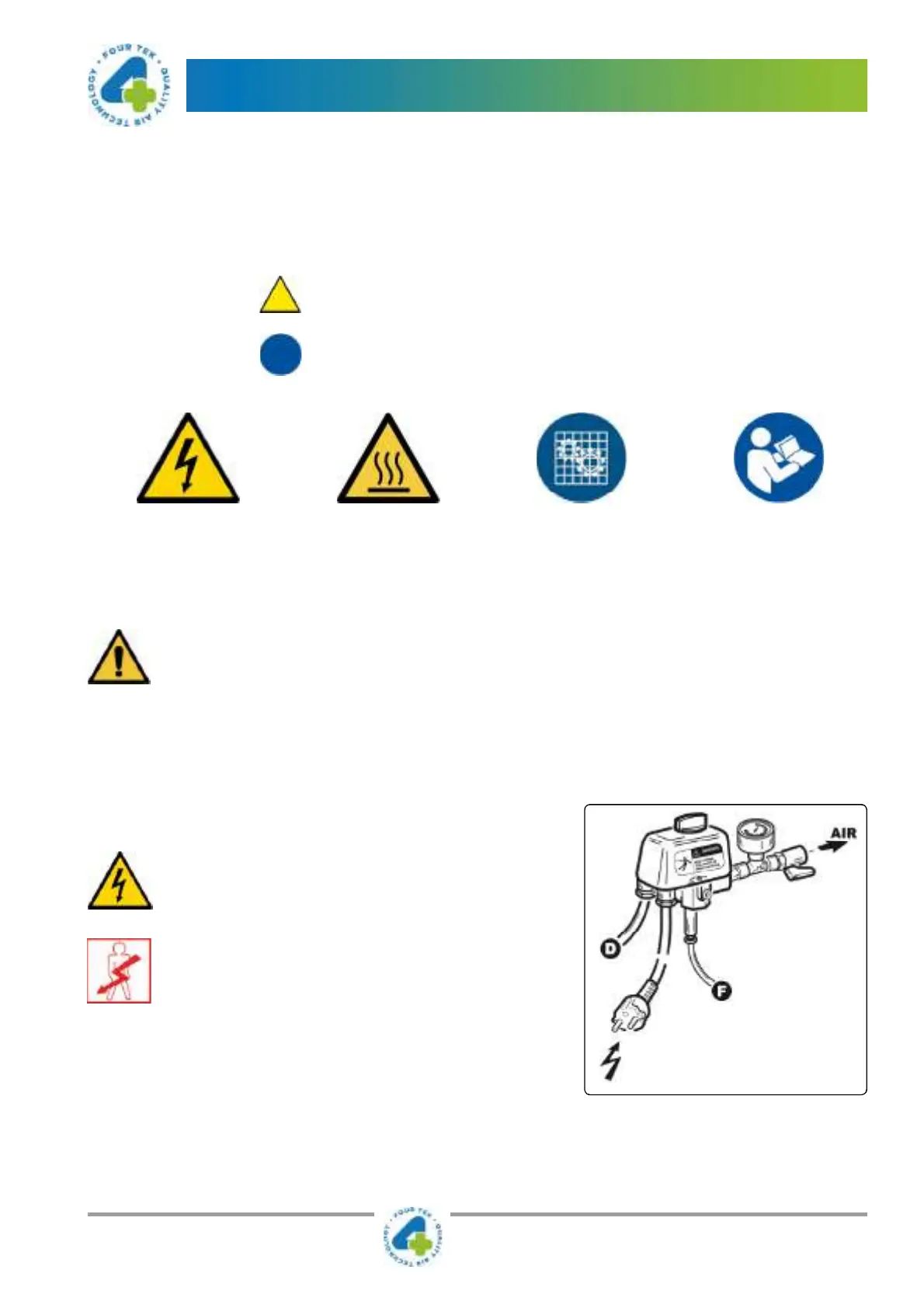

Warning Decals

Warning; Hot surface

Code W017

Warning; Electricity

Code W012

Mandatory sign:

Refer to instruction

manual/booklet

Code M002

Check guard

Code M027

CAUTION

Operators and Maintenance technicians must comply strictly with all the

warnings shown by the safety symbols.

It is strictly forbidden to interfere with or remove these labels.

Mandatory signs Circular shape with white images on blue background.

Triangular shape with black images on yellow background and

black border.

Danger

The compressor bears safety and warning labels with the following information.

The symbol codes refer to UNI CEI EN ISO 15223-1 and ISO 7010.

3 - 02

Residual Risks

Residual risk of electrical shock

This risk arises if work must be carried out on

the compressor with power connected.

Work of this kind must be carried out only by

qualiﬁ ed Maintenance electricians.
