Compressors with dryer

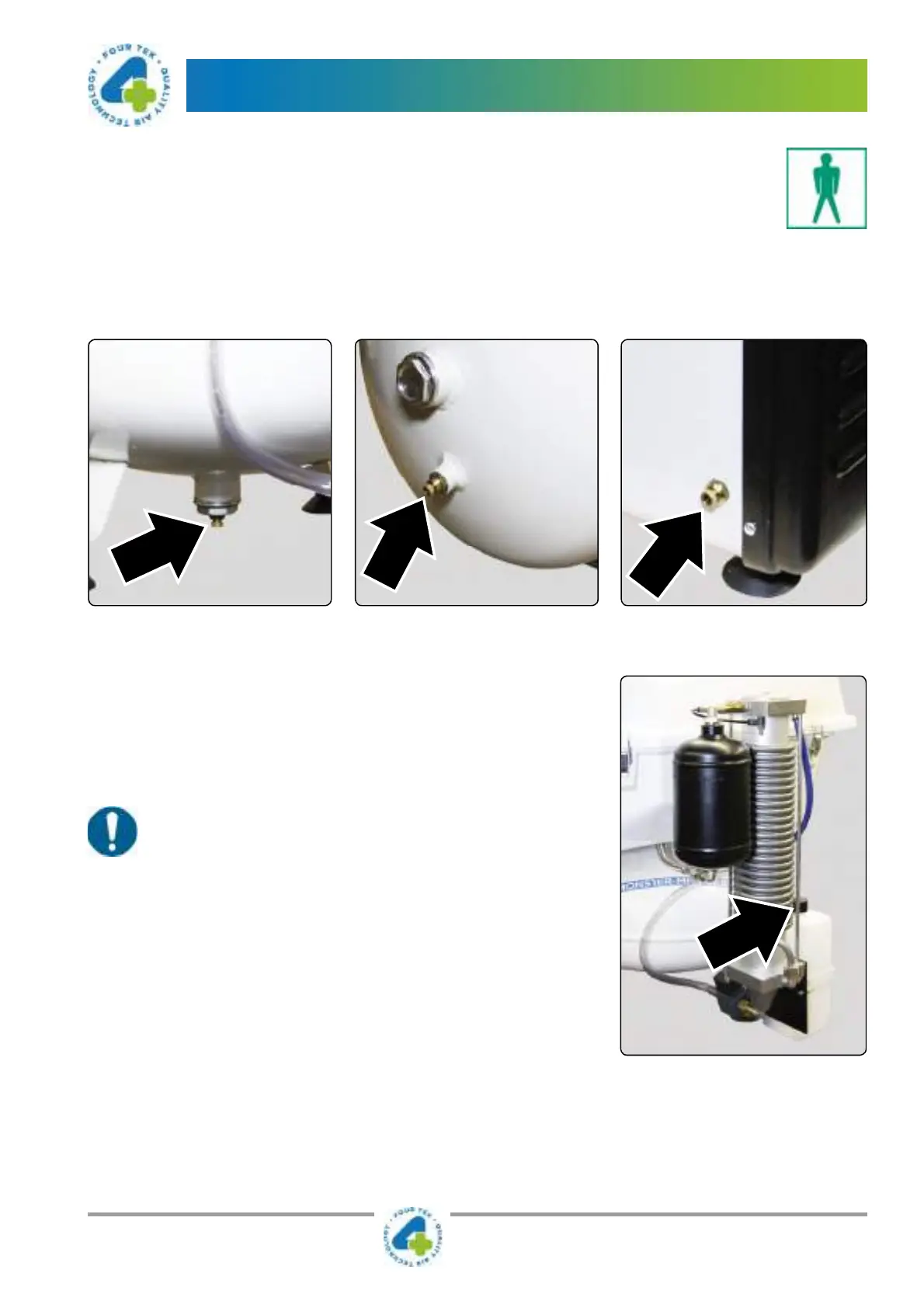

Empty the condensate drain bottle (Fig. 4) once a week:
remove the bottle from its support after having unscrewed
the cap; the water it contains is uncontaminated and can be
poured into any normal drain. Reinstall the bottle and refi t the
cap.
IMPORTANT
When reinstalling the bottle make sure the two
"overfl ow holes" are facing outwards and not
towards the compressor to prevent condensate from
reaching and damaging the solenoid valve.
Check for the presence of condensate in the air receiver at
least once every three months by opening the drain valve on
the receiver (Fig. 1 - 2 - 3).
If the receiver contains condensate, this means that dryer is
not functioning correctly or the compressor is undersized for
the application, so the air fl ow is insuffi cient for the Dryer self-
regeneration cycle.
Routine maintenance
Compressors without dryer
Drain off condensate at least once a week by opening the drain valve on the
receiver (Fig. 1 for SMALL MIRAGE, MIRAGE and MOMIR Models) - (Fig. 2 for
ECOSIL Models) - (Fig. 3 for TOP Models).
Once the receiver has been purged, close the valve.
2 31
4
