5th Wheel M1 - Assembly Guide; Unfolding;Folding;Carrying

5 Unfolding/Folding/Carrying
13
4 Assembly Guide
（Refer toUnfolding Operations）
1.Unfold the scooter and put the kickstand down. 2.Bring out the lower main line connector.
3.Connect the main line and attach the handlebar
to the stem.
12
4.Tighten the screws with the tools included in
the package and press the power button to
check if it works normally.
open the lock Expand scooter
and fix folding switch
Do not touch the main line
interface during the pulling
process.
Strictly follow the arrow
marks to align the slots
and install the handlebar.
Use the tool included in
the package
to tighten the screws.
Check the power button
after the completion of
assembly.

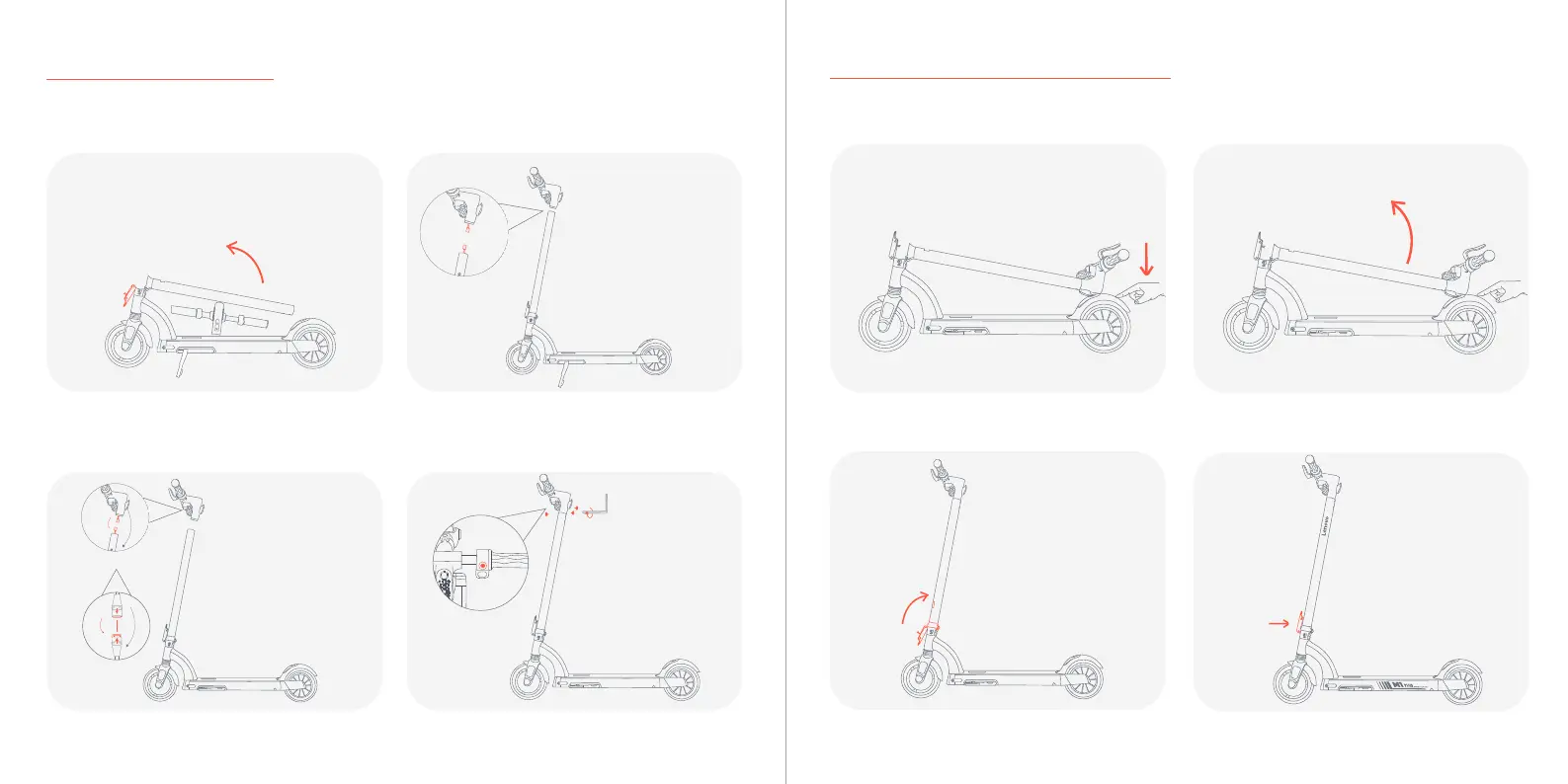

3. Righten the body rod and pull up the folding
buckle.
4. Fasten the folding buckle.
1. Press the rear fender with one hand and pull
the body rod upward with the other.
2. Pull up the body lever.
