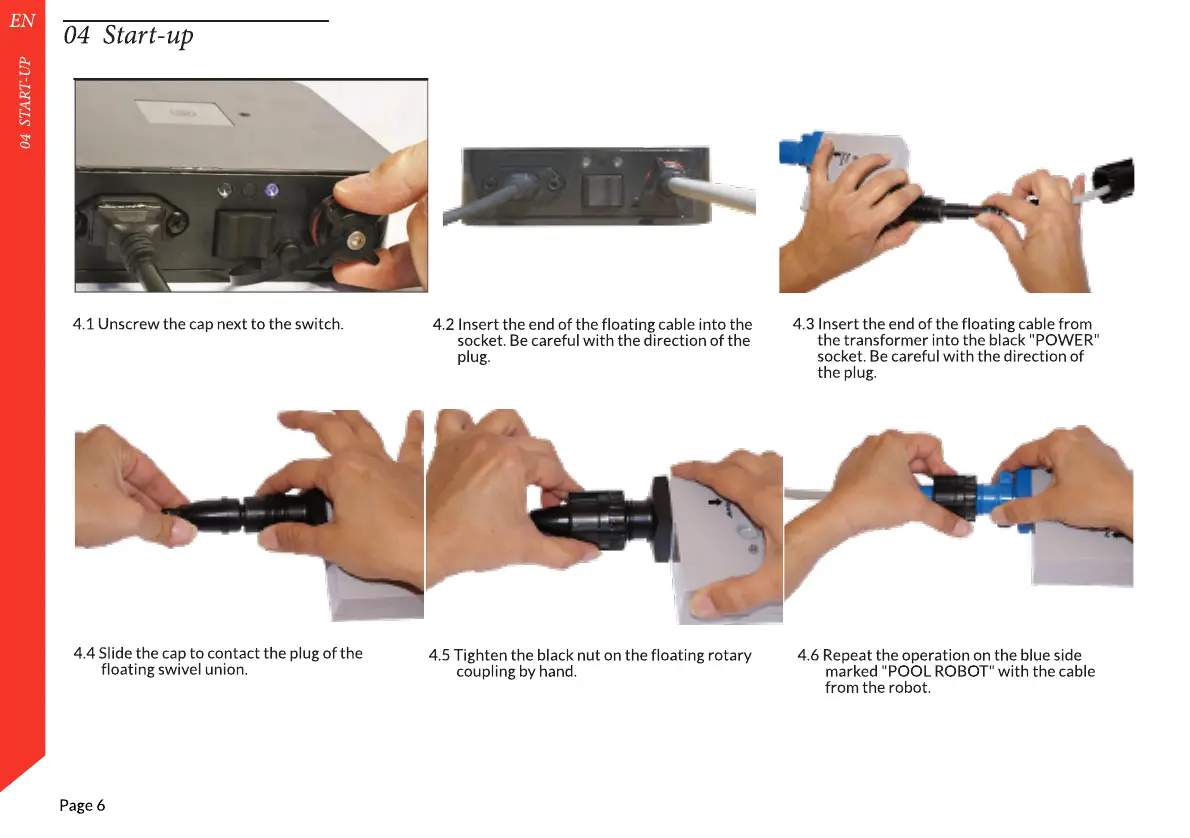

04 Start-up

4.2 Insert the end of the floating cable into the

socket. Be careful with the direction of the

plug.

4.1 Unscrew the cap next to the switch. 4.3 Insert the end of the floating cable from

the transformer into the black "POWER"

socket. Be careful with the direction of

the plug.

04 START-UP

Page 6

4.6 Repeat the operation on the blue side

marked "POOL ROBOT" with the cable

from the robot.

4.4 Slide the cap to contact the plug of the

floating swivel union.

4.5 Tighten the black nut on the floating rotary

coupling by hand.
