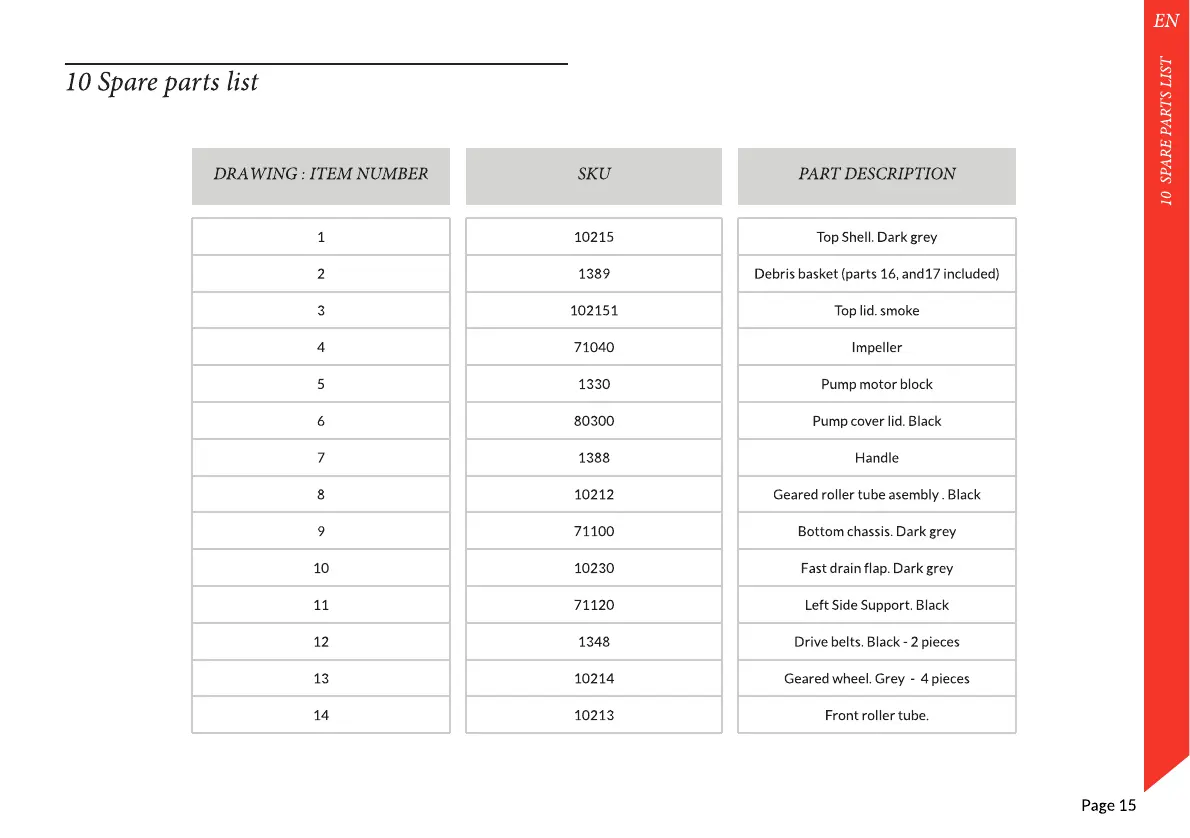

DRAWING : ITEM NUMBER SKU PART DESCRIPTION
10 Spare parts list
10 SPARE PARTS LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
10215
1389
102151
71040
1330
80300
1388
10212
71100
10230
71120
1348
10214
10213
Top Shell. Dark grey
Debris basket (parts 16, and17 included)
Top lid. smoke
Impeller
Pump motor block
Pump cover lid. Black
Handle
Geared roller tube asembly . Black
Bottom chassis. Dark grey
Fast drain flap. Dark grey
Left Side Support. Black
Drive belts. Black - 2 pieces
Geared wheel. Grey - 4 pieces
Front roller tube.
