a/d/s/ PH30.2 - Page 10

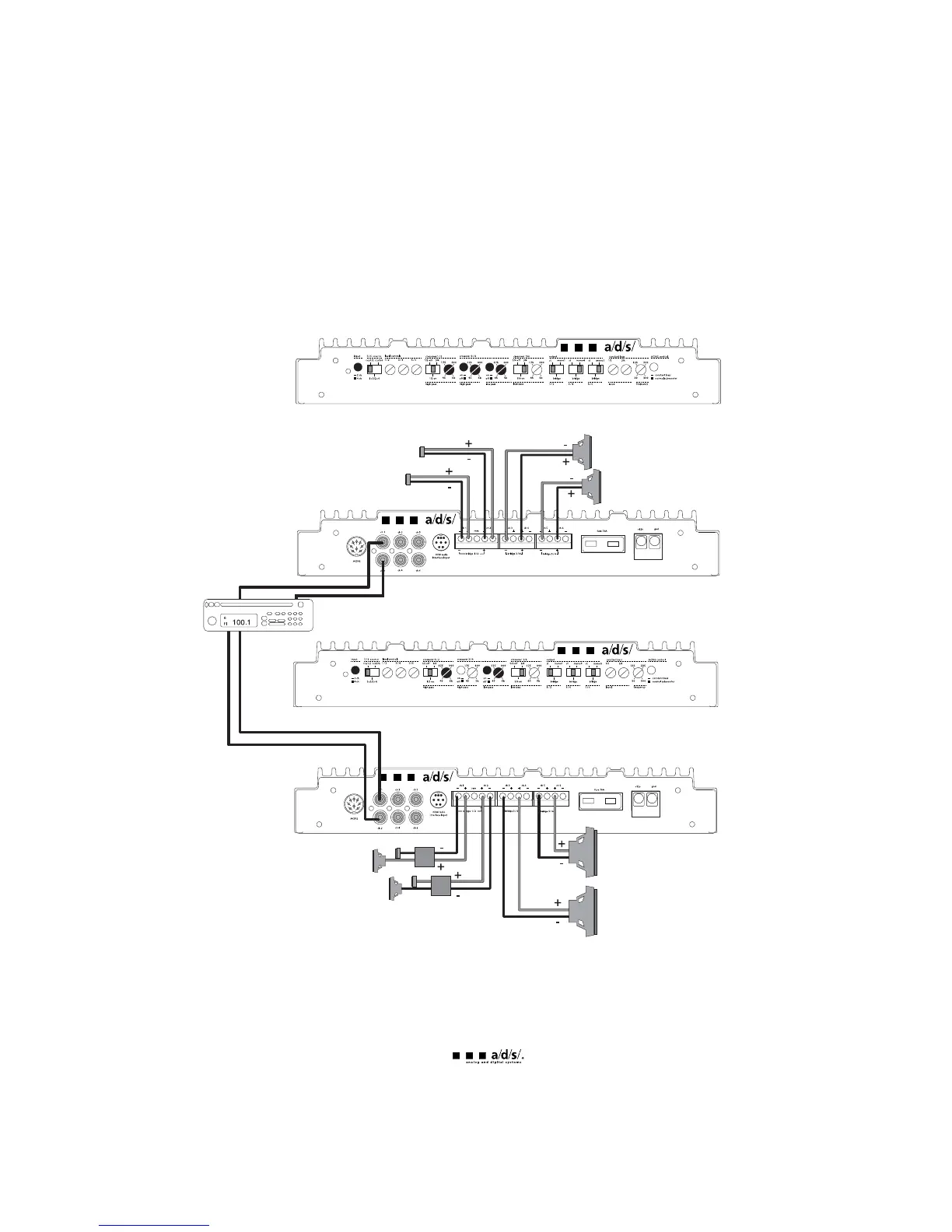

System 7 - Two PH30.2’s are used. The first PH30.2 is configured the same as system 4 and the second
PH30.2 is configured similar to system 5. The first amplifier drives the front midrange and tweeters and
the second amplifier drives the rear speakers and the subwoofer.
9
front right
tweeter
front left
midrange
front right
midrange
front left
tweeter
front
rear
rear left
satellite
rear right
satellite
subwoofer
subwoofer
70A
70A
