system configurations
All a/d/s/ PowerPlates™ provide extensive features, which make a variety of system configurations
possible. It is not feasible to cover all of the possibilities within the few pages of this manual. There are a
few system configurations, however, which are extremely popular when used alone or as a "building
block" of a larger more elaborate system. Please review systems 1 through 6 described below for
suggestions on how to configure the most popular combinations. Larger systems may be built from a
combination of the simpler building blocks as shown in systems 7.
button is disengaged control is non-operational
button is engaged control is operational

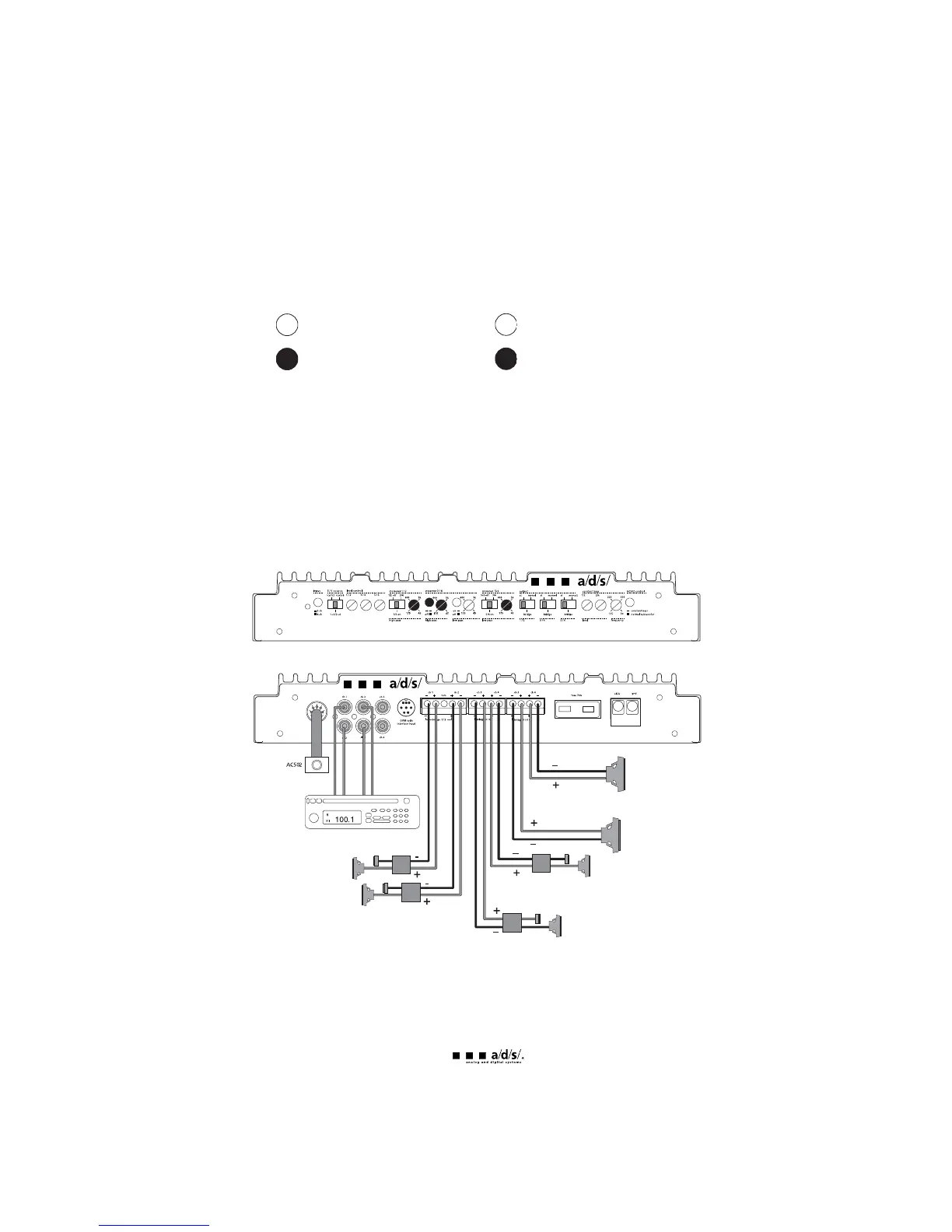

System 1 - PH30.2 used in 6-channel mode. Channels 1 and 2 are used for front high-pass speakers,
channels 3 and 4 are used for rear high-pass speakers and channels 5 and 6 are used to drive a stereo
pair of subwoofers. Although shown as a 4-channel input, the source unit can be either 2 or 4 channel
depending on the setting of the 2/4 channel switch.
Note: Optional AC502 can be used in this system to adjust the level of the subwoofers.
5
