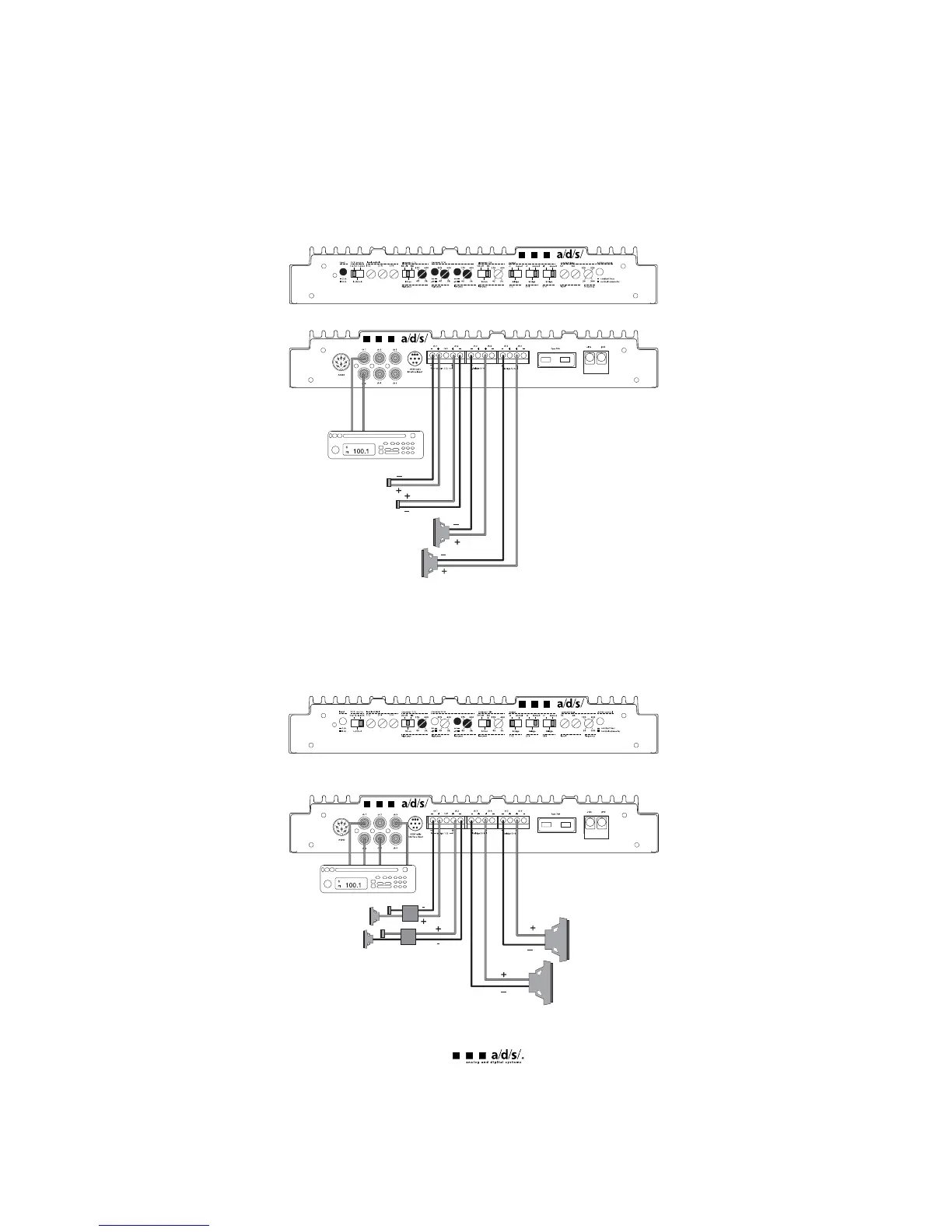

System 4 - PH30.2 used in 4-channel mode with high-pass tweeters and bandpass midrange. Channels
1and 2 are configured high-pass for the main tweeters and channels 3 and 4, and 5 and 6 are configured
bandpass for main midrange. Channels 4 and 6 are controlled by the 3/4 level control and crossover
section. The amplifier is configured for a 2-channel input.
System 5 - PH30.2 used in 4-channel mode with high-pass main speakers and low-pass
subwoofers.Channels 1 and 2 are configured high-pass for front speakers and channels 3/4, and 5/6 are
configured low-pass for bridged output subwoofers. The amplifier is configured for a 4-channel input.
Front/rear fade adjusts subwoofer level.
