3 | DESCRIPTION

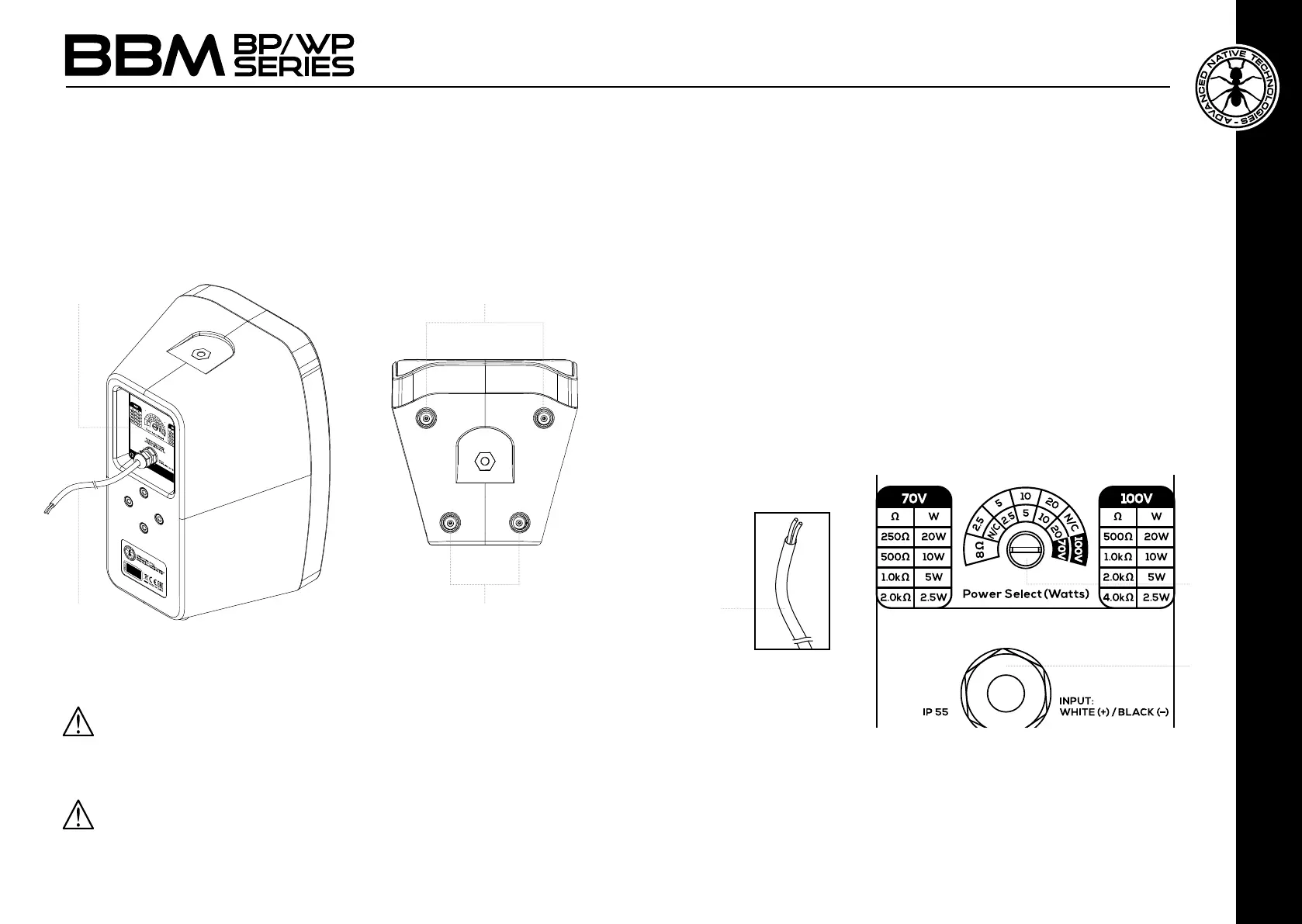

3.1 | INPUTS & CONTROLS
1 HEADED INPUT CABLE
Connect the signal from amplier outputs to these two wires.
To ensure correct sound reproduction, the speakers must be connected
in phase. Match the positive and negative polarities of the amplier with
the positive (White +) and negative (Black -) polarity of the speaker input.
2 CABLE GLAND
The cable gland guarantees IP55 protection of electrical connections
inside the speaker.
3 SEALED POWER SELECTOR
IP55 Selector with seven positions for constant impedance (8Ω) or
constant voltage (10W, 20W, 40W or 80W on 70V or 100V) connections.
Use a flat-blade screwdriver to select the desired mode.
NOTE:
All the BBM BP/WP series speakers guarantee IP55 protection, in particular:
• Total protection against item introduction.
• Protection against liquids entry in any form like drops, vapors, sprays
and weak jets of water in any direction.
• Dust and liquids intrusion must not damage the equipment.
3
2
2 | INSTALLATION
Each speaker is equipped with:
A | Sealed power selector.
B | Headed input cable.
C | Non-slip rubber feet.
WARNING:
For installation please contact qualied personnel.
In order to avoid any danger, place and fasten the speaker in a stable and secure way.
Install the speaker as explained in this instruction manual.
WARNING:
For safe use of the accessory, check functionality and integrity before installation
and periodically.
1
CA
CB
To Next Page
