A.O. Smith AHPW-25 User Manual

39
DIAGRAMSDIAGRAMS
WIRING DIAGRAMS
The water heater’s electrical components are pictured and identied on page 7. The following describes the heater circuits and
includes wiring diagrams. All heater circuits are designed for 60/50 hertz alternating current. The water heater circuit wiring is 12
AWG, AWM, or TEW type, rated 600 volts, 105°C. Fusing consists of three 30 amp fuses for each contactor.

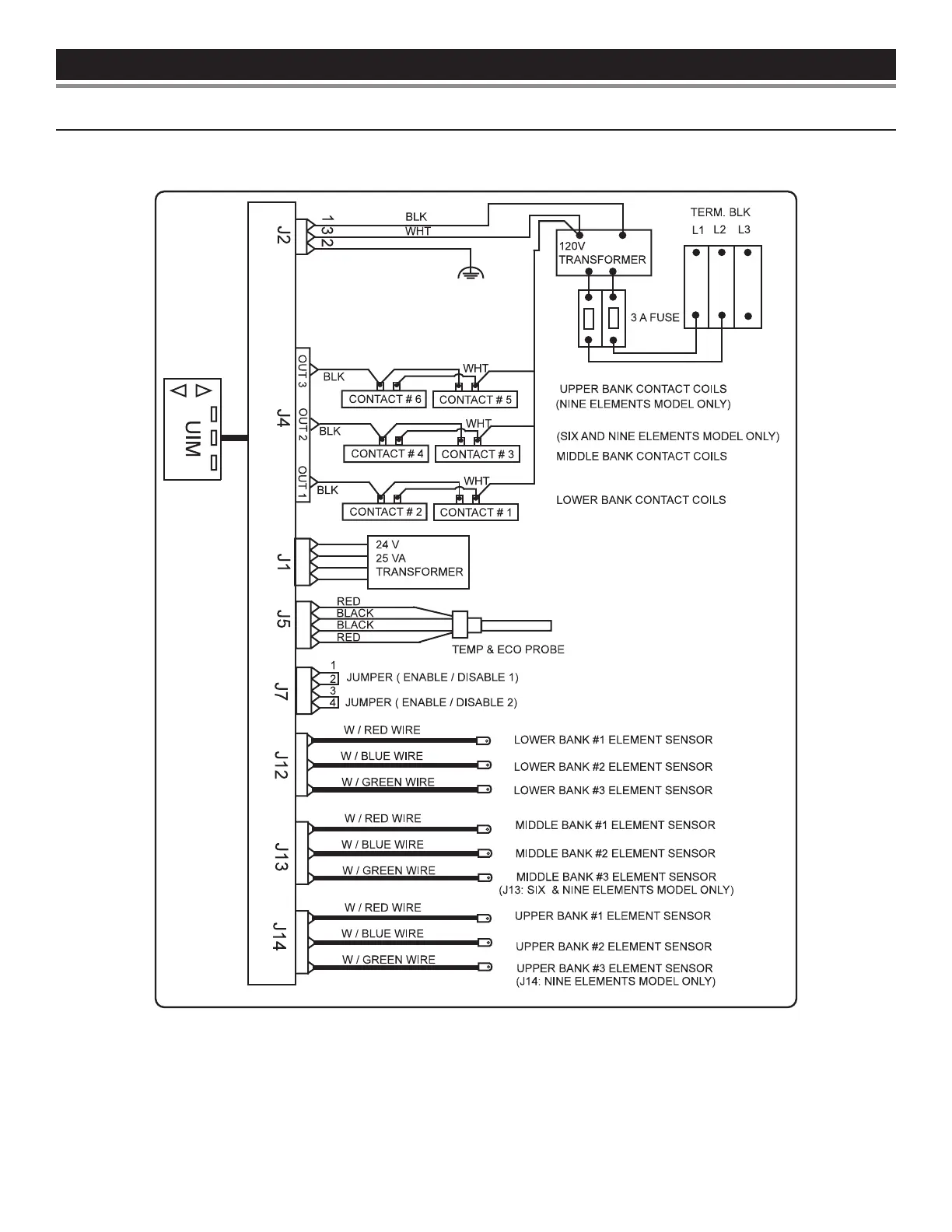

Figure 16. CCB (Central Control Board) Circuit Board.
Printed on 5/6/2022 7:17 AM CT

A.O. Smith AHPW-25 Specifications

General

Model	AHPW-25
Capacity	2.5 gallons
Voltage	120V
Power Source	Electric
Thermostat	Adjustable
Installation	Indoor
Temperature Range	90°F - 140°F
Type	Point-of-Use Electric Water Heater
