Servicing should only be performed by a Qualified Service Agent
71
ELECTRONIC CONTROL SYSTEM
CURRENT FAULT / ALERT MENU
This menu displays non adjustable
operational information. With the Fault History
sub menu selected in Main Menu; press the
Operational Button underneath “SELECT” to
display the current Fault or Alert message. If
there is not a Fault or Alert condition currently
active “(none)” is displayed to the right of this
menu.
FAULT HISTORY MENU
This menu displays non adjustable
operational information. The control system
records and stores the last 9 Fault and Alert
messages in chronological order in this menu.
The most recent will be at the top of the list. A
time stamp is displayed below each listed
Fault and Alert message showing when the
Fault or Alert condition occurred.
The Fault History is useful when dealing with
intermittent operational problems or when the
customer has reset the control system prior to
a service agent’s arrival.
With a Fault or Alert item selected press the
Operational Button underneath “VIEW” to
display the details for the Fault or Alert
message. The Fault/Alert message screen
displays a brief description of the condition,
contact information and access to the
Advanced Service information sub menu.
FAULT OCCURRENCE MENU
Total accumulated number each individual
Fault condition has occurred is displayed in
this menu. This running total of Fault
Occurrences can be useful in determining
which (if any) operational problems have
been persistent.

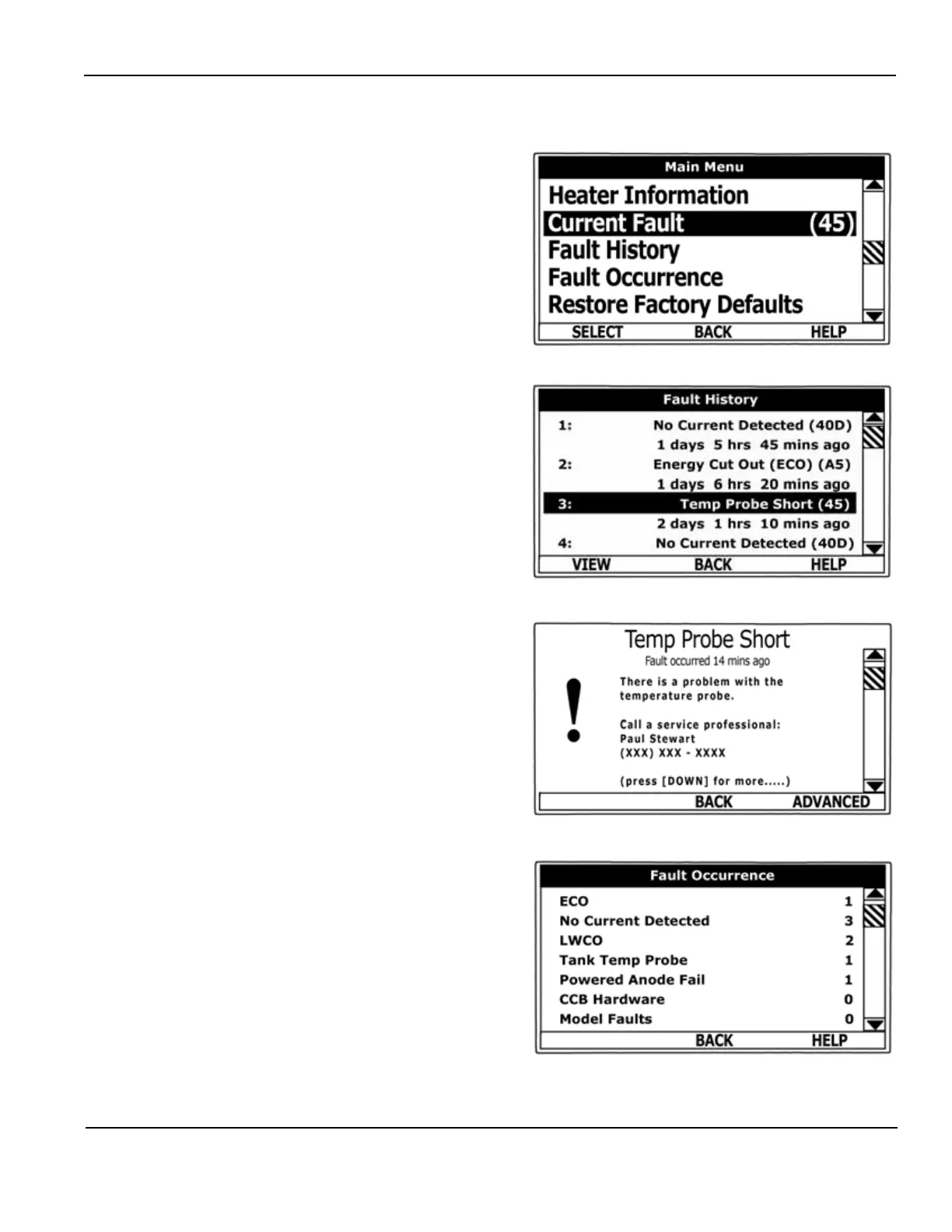

Current / History Fault Message
Fault History Menu
Fault Occurrence Menu
Main Menu - Current Fault Selected
To Next Page
