BTH 120/A BTH 150/A BTH 199/A BTH 250/A
Item Description 100/101 100/101 100/101 100/101
1 Cleanout Gasket ......... 9004099015 .......... 9004099015 ........ 9004099015 ....... 9004099015
2 Cleanout Plate ............ 9004098005 .......... 9004098005 ........ 9004098005 ....... 9004098005
3 T & P Valve ................. 9005903205 .......... 9005903205 ........ 9005903205 ....... 9005903205
4 Lower Probe ............... 9006242015 .......... 9006242015 ........ 9006242015 ....... 9006242015
Standard hardware items may be purchased locally.

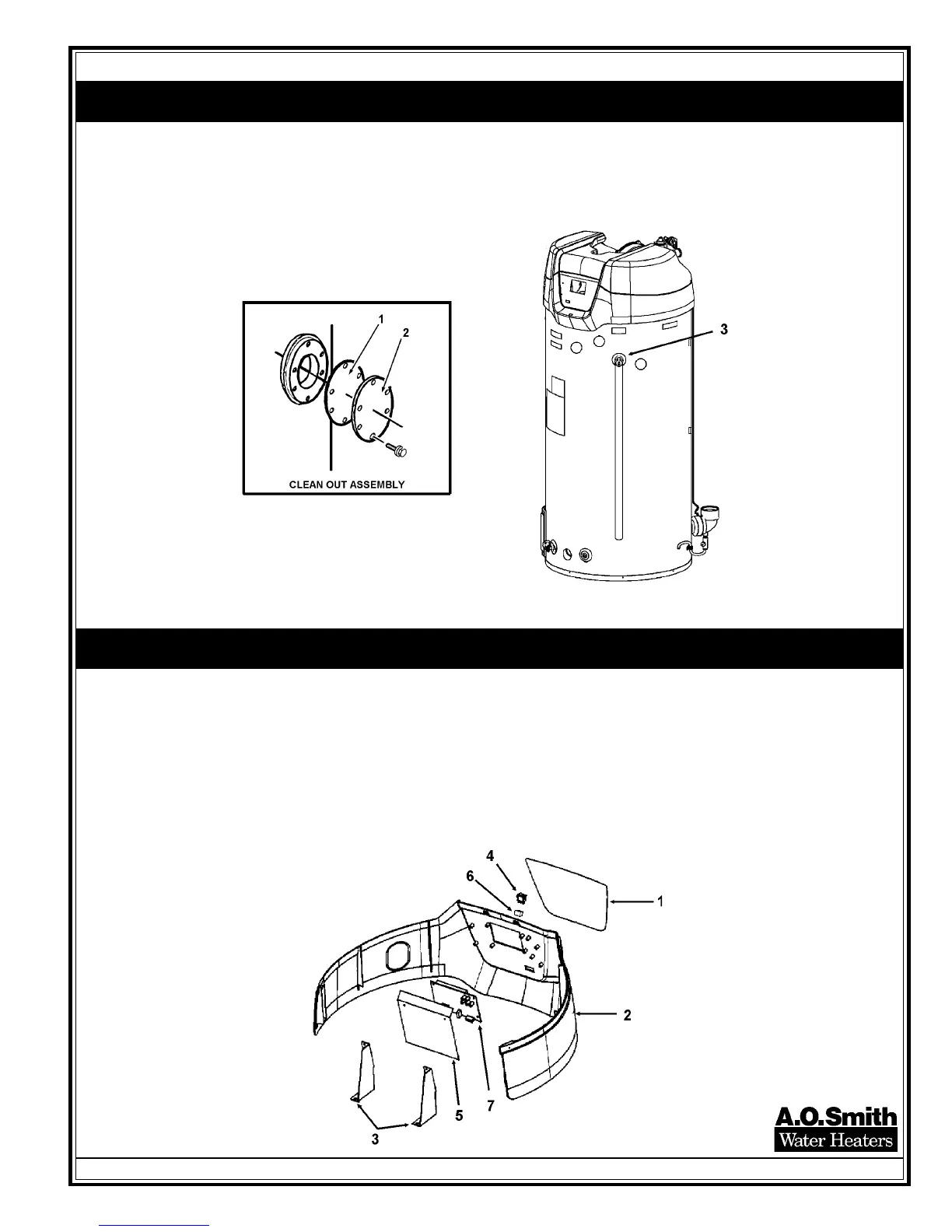

BTH CYCLONE Xi 120/A - 250/A CLEANOUT ASSEMBLY / TEMPERATURE & PRESSURE VALVE
PRINTED 0607 197728-001
BTH 120/A BTH 150/A BTH 199/A BTH 250/A
Item Description 100/101 100/101 100/101 100/101
1 BTH Display Overlay ..................................9006239005 ........ 9006239005...... 9006239005 ...... 9006239005
2 Display Band .............................................9006270005 ........ 9006270005 ...... 9006270005 ...... 9006270005
3 Display Band Mount ...................................9006271015 ........ 9006271015...... 9006271015 ...... 9006271015
4 On/Off Switch.............................................9005929215 ........ 9005929215 ...... 9005929215 ...... 9005929215
5 Splatter Shield ........................................... 197763-000 ........ 197763-000 .......197763-000 ...... 197763-000
6 Switch Wire Connection ............................. 197758-000 ........ 197758-000 .......197758-000 ...... 197758-000
7 User Interface Module - UIM .......................9006240005 ........ 9006240005...... 9006240005 ...... 9006240005
BTH CYCLONE Xi 120/A - 250/A - DISPLAY CONTROL ASSEMBLY
A.O. Smith Water Heater Parts Fulfillment • phone: 1-800-433-2545 • www.hotwater.com
