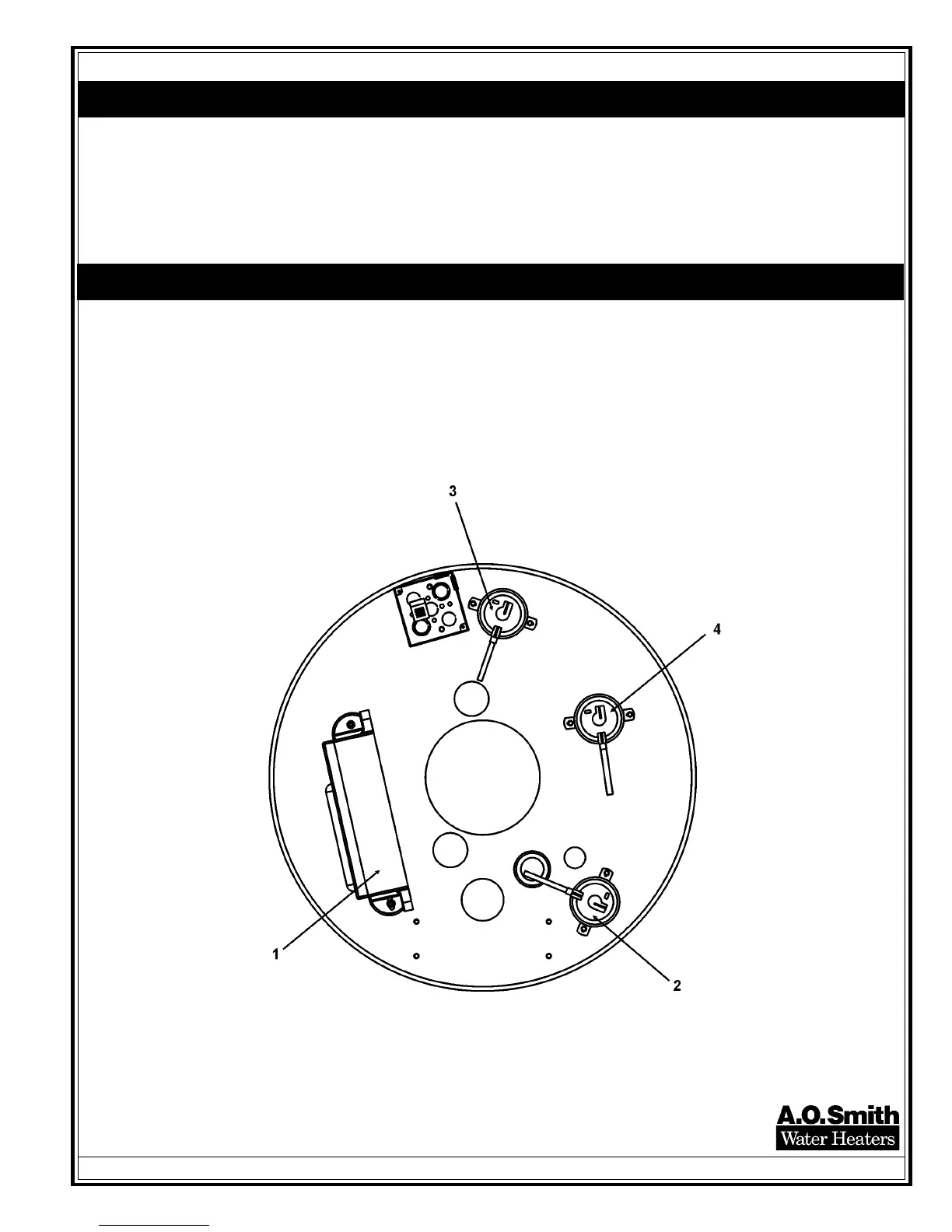

BTH CYCLONE Xi INNER COVER CONTROL ASSEMBLY - MODELS 120/A & 150/A
BTH 120/A BTH 150/A
Item Description 100 101 100 101
1 ...... Controller ........................ 9006262005 ..... 9006266005 .......... 9006263005 ..... 9006267005
2 ...... Switch-blocked outlet ...... 9006287015 ..... 9006287015 .......... 9006289015 ..... 9006287015
3 ...... Switch-inlet ..................... 9006288015 ..... 9006281015 .......... 9006288015 ..... 9006281015
4 ...... Switch-prover .................. 9006280015 ..... 9006280015 .......... 9006280015 ..... 9006280015
5 ...... Upper probe .................... 9004238215 ..... 9004238215 .......... 9004238215 ..... 9004238215
BTH CYCLONE Xi INNER COVER CONTROL ASSEMBLY - MODELS 199/A & 250/A
BTH 199/A BTH 250/A
Item Description 100 101 100 101
1 ...... Controller ........................ 9006264005 ..... 9006268005 .......... 9006265005 ..... 9006269005
2 ...... Switch-blocked outlet ...... 9006289015 ..... 9006282015 .......... 9006282015 ..... 9006282015
3 ...... Switch-inlet ..................... 9006288015 ..... 9006281015 .......... 9006281015 ..... 9006281015
4 ...... Switch-prover .................. 9006280015 ..... 9006280015 .......... 9006280015 ..... 9006280015
5 ...... Upper probe .................... 9004238215 ..... 9004238215 .......... 9004238215 ..... 9004238215
Standard hardware items may be purchased locally.
A.O. Smith Water Heater Parts Fulfillment • phone: 1-800-433-2545 • www.hotwater.com
PRINTED 0607 197728-001
