14 • Commercial Electric Water Heater Use and Care Guide
INSTALLATION

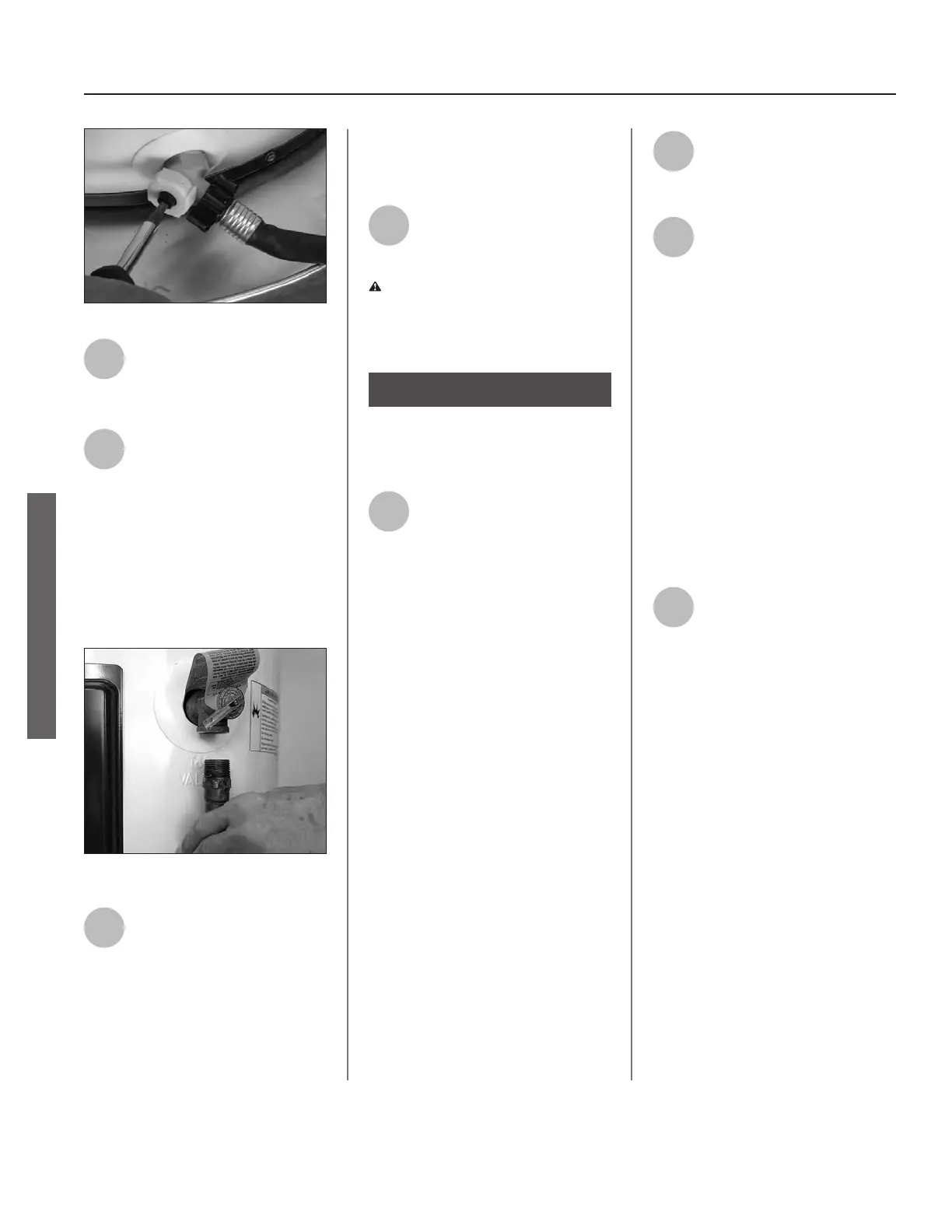

Figure 10 - Draining the old water heater.
9
Also open a hot water faucet
to help the water in the tank
drain faster.
10
When the tank is empty,
disconnect the Temperature
& Pressure (T&P) Relief Valve
discharge pipe. You may be able to
reuse the discharge pipe, but do not
reuse the old T&P Relief Valve. A new
T&P Relief Valve comes installed on
your water heater (or on some
models, is in the carton with the
water heater).
Figure 11 - Removing the T&P Relief Valve
discharge pipe.
11
Disconnect the water pipes.
Many water pipes are
connected by a threaded
union which can be disconnected with
wrenches. If you must cut the water
pipes, cut the pipes close to the water
heater’s inlet and outlet connecons,
leaving the water pipes as long as
possible. If necessary, you can make
them shorter later when you install
the new water heater.
12
Remove the old water heater.






heater
1
Completely read all
instrucons before beginning.
If you are not sure if you can
complete the installaon, seek
assistance from any of the following
sources:
• Schedule an appointment with
a qualied person to install your
water heater.
• Call our Technical Assistance Hotline
at 1-888-479-8324.
2
Install a suitable drain pan
that is piped to an adequate
drain.
3
Set the water heater in place
taking care not to damage
the drain pan.
Most codes require seng
the water heater in a suitable drain
pan piped to an adequate drain.
The drain pan helps avoid property
damage which may occur from
condensaon or leaks in the piping
connecons or tank. The drain pan
must be at least two inches (51 mm)
wider than the diameter of the water
heater. Install the drain pan so the
water level is limited to a maximum
depth of 1-3/4” (44 mm).
4
Verify that the water heater
is properly set in place. Check
that:
• The T&P Relief Valve will not be in
contact with any electrical parts.
• There is adequate space to install
the T&P Relief Valve discharge
pipe and that it can be piped to a
separate drain (and not into the
drain pan, unless otherwise allowed
by provincial or local codes).
• There is adequate access and space
around the water heater for future
maintenance.
INSTALLATION
