3-1 PHASE CONVERSIONS

In the case where the unit is phase convertible and it has only one contactor, jumper wires (provided) must be added according to the

phase of the supply voltage. See the diagram below. For single-phase connection, jumpers A-C and B-D must be added. For three-

phase connection, jumper B-C must be added.

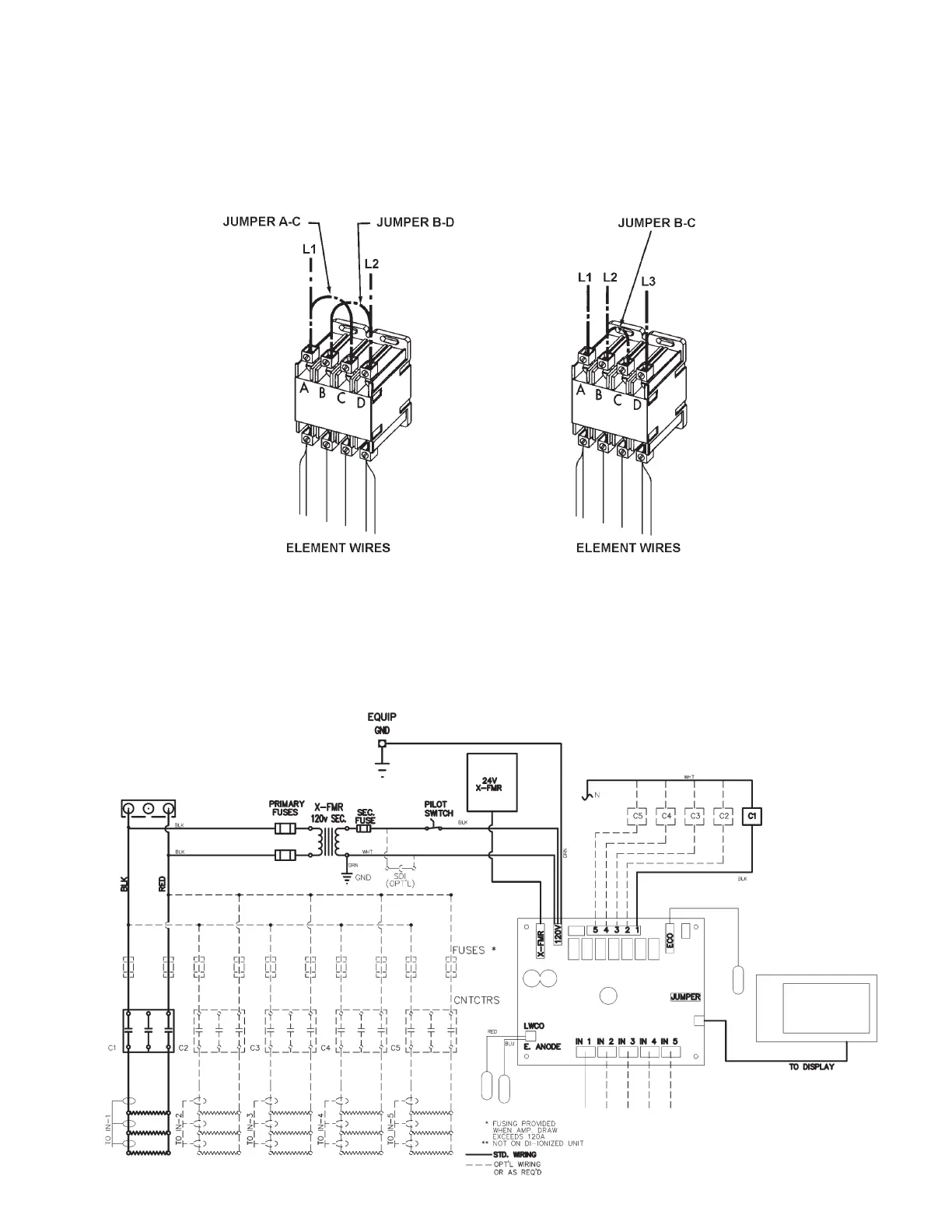

3-1 PHASE CONTACTOR JUMPER CONFIGURATION

1 PHASE CONNECTION 3 PHASE CONNECTION

DIAGRAM 3.

SMALL COMMERCIAL WIRE DIAGRAM

SINGLE PHASE
