5

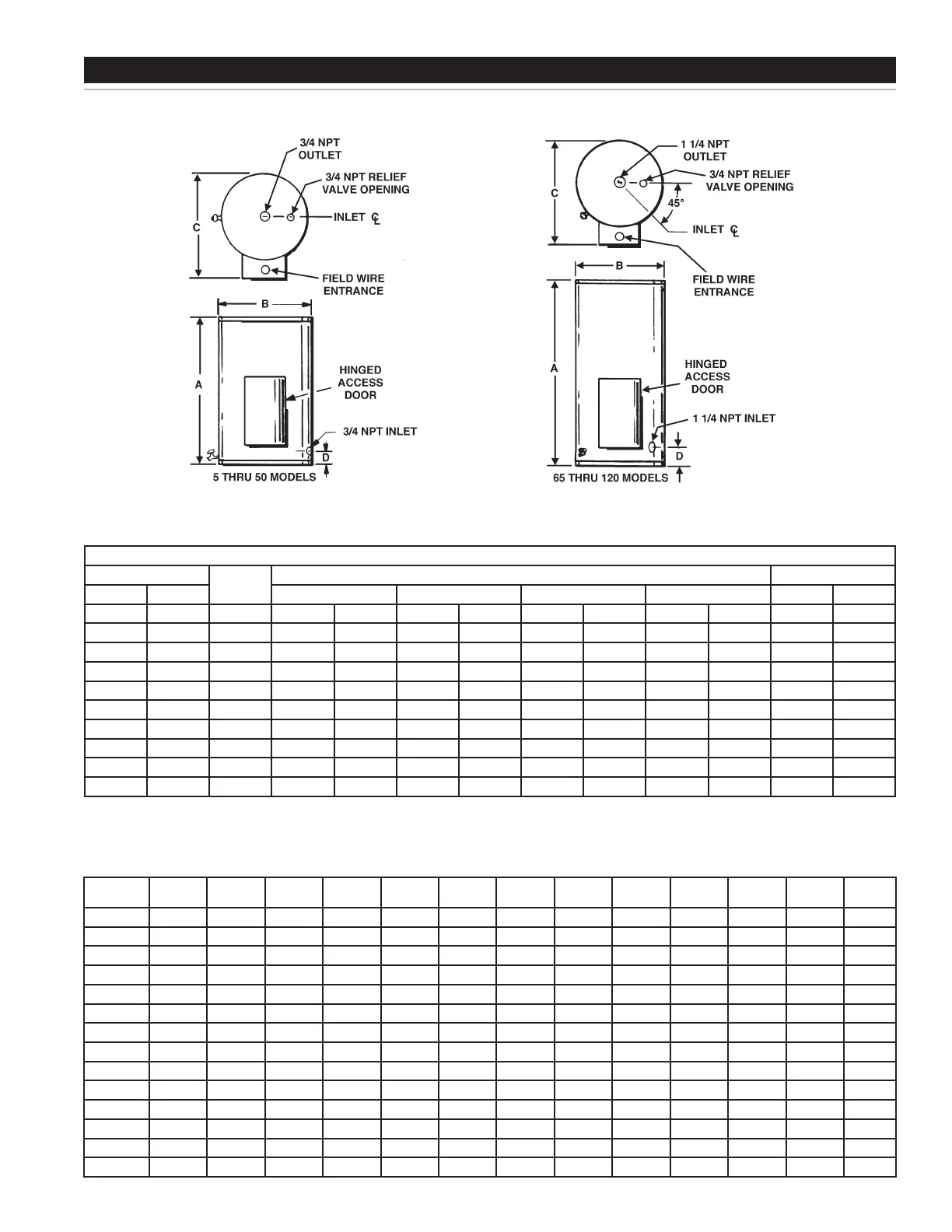

DIMENSIONS AND CAPACITIES DATA
DSE
Tank Capacity
Maximum
KW Input
All Dimensions in Inches (mm) Approximate Shipping Wt.
Gallons Liters A B C D Lbs. Kg.
5 19 3 20 1/2 521 mm 16 1/4 412.75 mm 22 1/2 571.5 mm 5 1/4 133.35 mm 82 37.2
10 38 6 26 1/4 667 mm 18 3/4 476.25 mm 25 635 mm 5 1/4 133.35 mm 106 48.1
20 76 18 27 1/4 692 mm 20 1/2 520.7 mm 26 1/2 673.1 mm 5 3/4 146.05 mm 130 59
30 114 24 35 3/4 908 mm 20 1/2 520.7 mm 26 1/2 673.1 mm 5 3/4 146.05 mm 150 68
40 151 36 45 3/4 1,162 mm 20 1/2 520.7 mm 26 1/2 673.1 mm 5 3/4 146.05 mm 190 86.2
50 189 90 54 3/4 1,391 mm 20 1/2 520.7 mm 26 1/2 673.1 mm 5 3/4 146.05 mm 221 100.2
65 246 90 50 1/2 1,283 mm 26 1/2 673.1 mm 33 1/2 850.9 mm 7 177.8 mm 267 121.1
80 303 90 49 1/4 1,251 mm 28 711.2 mm 35 889 mm 7 177.8 mm 285 129.3
100 379 90 58 1/4 1,480 mm 28 711.2 mm 35 889 mm 7 177.8 mm 354 160.6
120 450 90 63 1/4 1,607 mm 30 762 mm 37 939.8 mm 7 1/2 190.5 mm 420 190.5
RECOVERY RATE IN GALLONS PER HOUR *
Temperature Rise °F
STANDARD
KW INPUT
BTU/
HOUR
30° 40° 50° 60° 70° 80° 90° 100° 110° 120° 130° 140°
3 10,239 41 31 24 20 17 15 13 12 11 10 10 9
6 20,478 82 62 49 41 35 31 27 25 22 21 19 18
9 30,717 123 92 74 62 53 46 41 37 34 31 28 26
12 40,956 164 123 98 82 70 61 55 49 45 41 38 35
15 51,195 205 154 123 102 88 77 68 61 56 51 47 44
18 61,434 246 184 148 123 105 92 82 74 67 62 57 53
24 81,912 328 246 197 164 140 123 109 98 90 82 76 70
30 102,390 410 308 246 205 176 154 137 123 112 103 95 88
36 122,868 492 369 295 246 211 184 164 148 134 123 113 105
45 153,585 615 461 369 307 263 230 205 184 168 154 142 132
54 184,302 738 554 443 359 316 277 246 221 201 185 170 158
60 204,780 819 615 492 410 351 307 273 246 223 205 189 176
75 255,975 1025 768 615 512 439 384 341 307 279 256 236 219
90 307,170 1229 922 738 615 527 461 410 369 335 307 284 263
