35

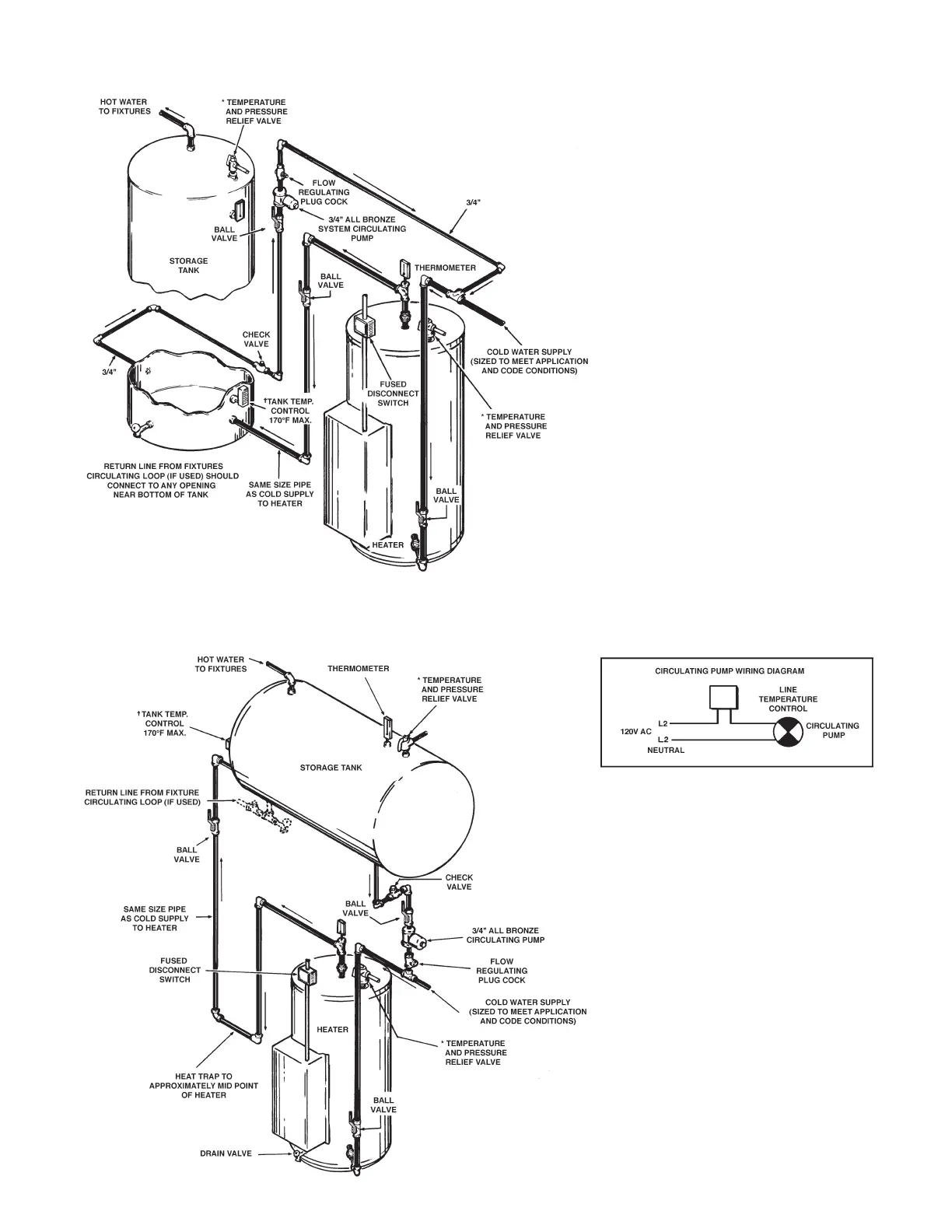

MEDIUM TEMPERATURE - ONE HEATER VERTICAL STORAGE TANK
MEDIUM TEMPERATURE - ONE HEATER VERTICAL STORAGE TANK
*PIPE RELIEF VALVE TO OPEN DRAIN.
†TANK TEMPERATURE CONTROL SET AT DESIRED
TEMPERATURE (MAX. 170°). HEATER THERMOSTAT
SET AT LEAST 5° HIGHER.
INSTALL IN ACCORDANCE WITH ALL LOCAL CODES.
