A.O. Smith DSE-5 - Medium Temperature - Three Heaters Vertical Storage Tank; Medium Temperature - Three Heaters Horizontal Storage Tank; Circulating Pump Wiring Diagram

37

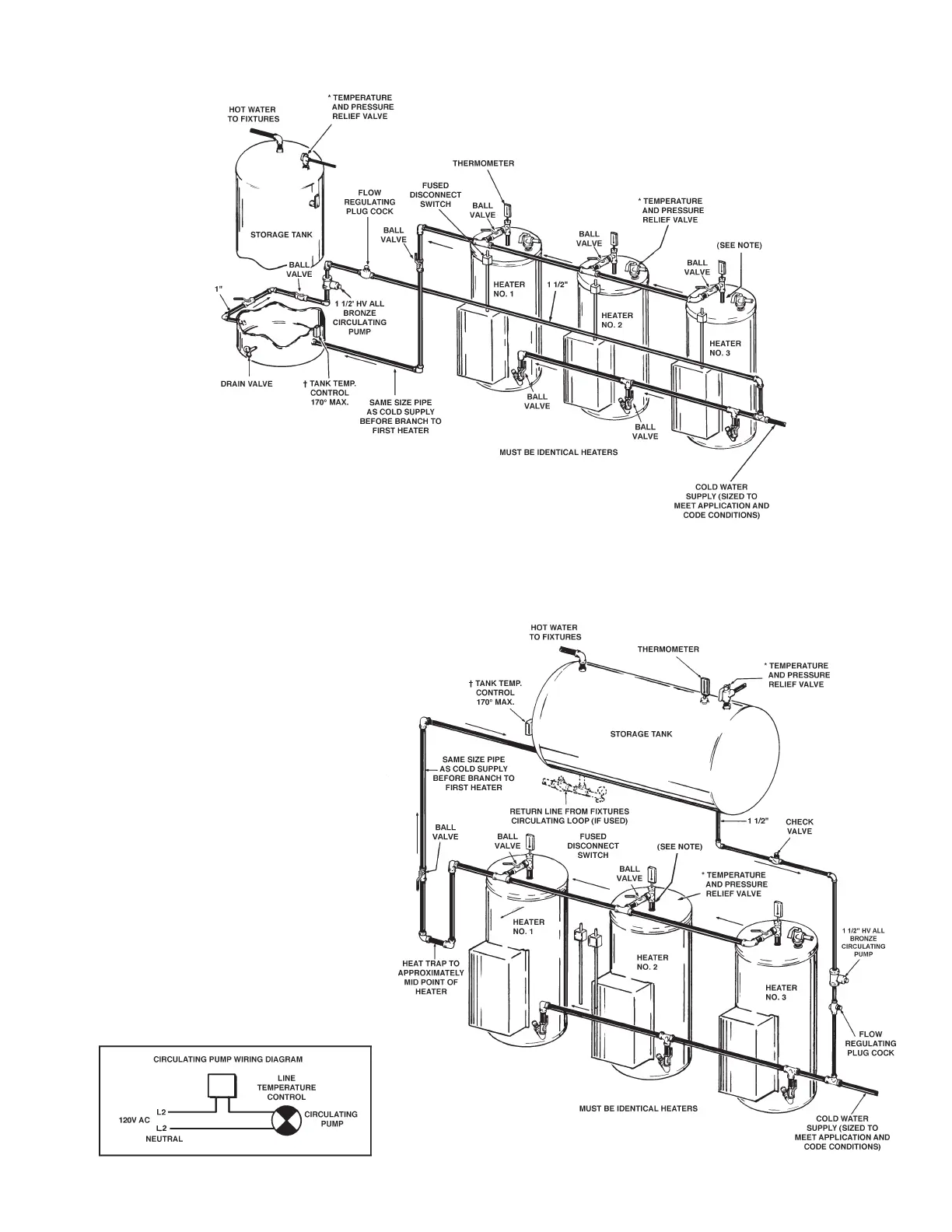

MEDIUM TEMPERATURE - THREE HEATERS VERTICAL STORAGE TANK
MEDIUM TEMPERATURE - THREE HEATERS HORIZONTAL STORAGE TANK
*PIPE RELIEF VALVE TO OPEN DRAIN.
†TANK TEMPERATURE CONTROL SET
AT DESIRED TEMPERATURE (MAX. 170°).
HEATER THERMOSTAT SET AT LEAST 5°
HIGHER.
INSTALL IN ACCORDANCE WITH ALL
LOCAL CODES.
NOTE:BRANCHPIPINGTOALLHEATERS
MUST BE SAME SIZE AND LENGTH FOR
EQUAL FLOW. THESE BRANCHES MAY
BE SIZED UP TO 1 1/4” SO THAT CROSS
SECTIONAL AREAS OF ALL INLETS AND
OUTLETS AT LEAST EQUAL AREA OF
THEIR RESPECTIVE MAIN PIPING.
REVERSE RETURN PIPING SHOWN.
