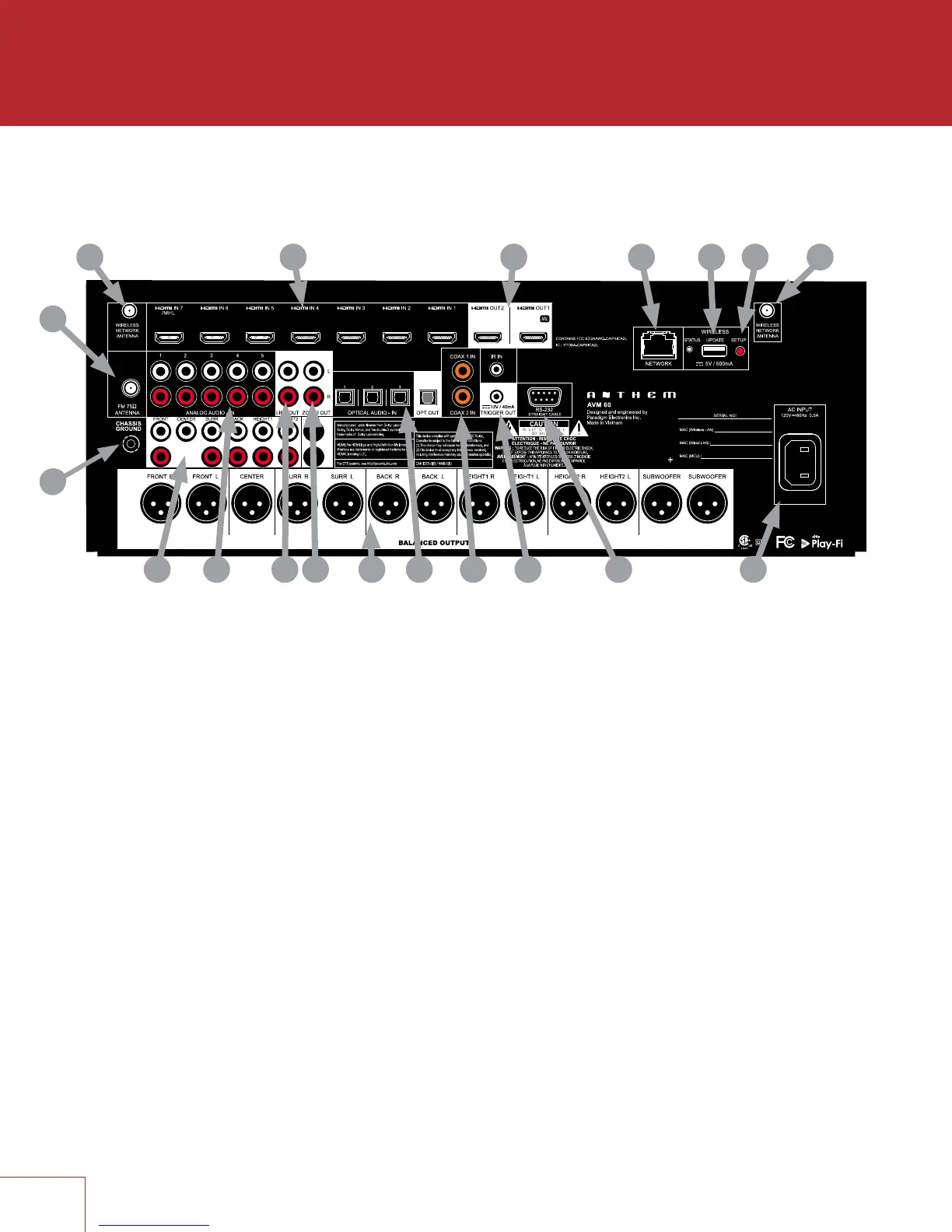

1.6 AVM 60 REAR PANEL
US model shown. EU model is similar.
AVM 60US
2015.10.26
PRINTING : WHITE
FILM NO.:150913-3
1 – FM antenna connection
2 – Wireless antenna connectors
3 – HDMI inputs - HDMI7 supports MHL
4 – HDMI outputs - HDMI1 supports Audio Return Channel
5 – Local area network connection for IP control and Anthem Room Correction
6 – USB jack for factory service
7 – Wireless setup button
8 – AC input
9 – RS-232 interface (bidirectional) for serial control
10 – IR input and trigger output
11 – Coaxial digital audio inputs
12 – Optical digital audio inputs and output
13 – Balanced outputs
14 – Zone 2 audio output
15 – Line audio output
16 – Analog audio inputs
17 – Main pre-out connections
18 – Chassis ground screw
