12
Installation (continued)
3

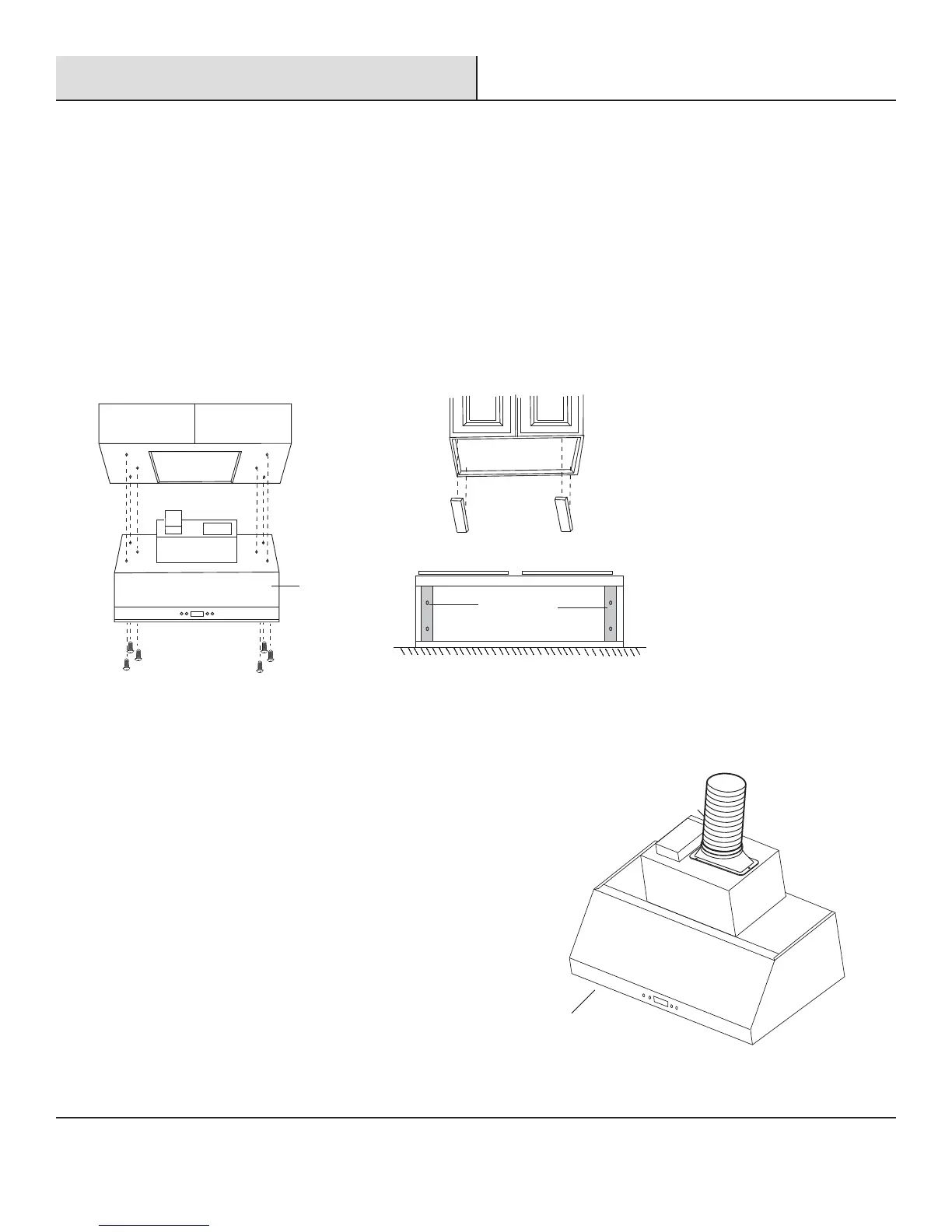

Installing the range hood
As per Fig. 7, cut the required hole in the cabinet.
- Lift the range hood (A) up under the cabinet to determine
its nal position. Fix the unit onto the cabinet with 6pcs of
M5 x 12 mm tapping screws.
- If the bottom of the cabinet is recessed, add a wood ller
on each side. The wood strips must be as thick as the
recess. Use appropriately sized wood screws to attach the
wood ller to its location.
*** Make sure the opening hole size is 15 in. (380 mm) L x 10 1/4
in. (260 mm) on the bottom of the cabinet to the t the range hood.
4
Attaching the duct
- Attach your ducting (6) (not supplied) to the range hood (A)
and connect the duct to your exterior exhaust system.
5
Final step
- Reconnect the power supply cable and wires to the
electrical supply. Turn the power on and ensure that the
lights and fan are operating correctly.
Bottom View
Wood filler strips
Cabinet bottom
Wall
A
A
6
