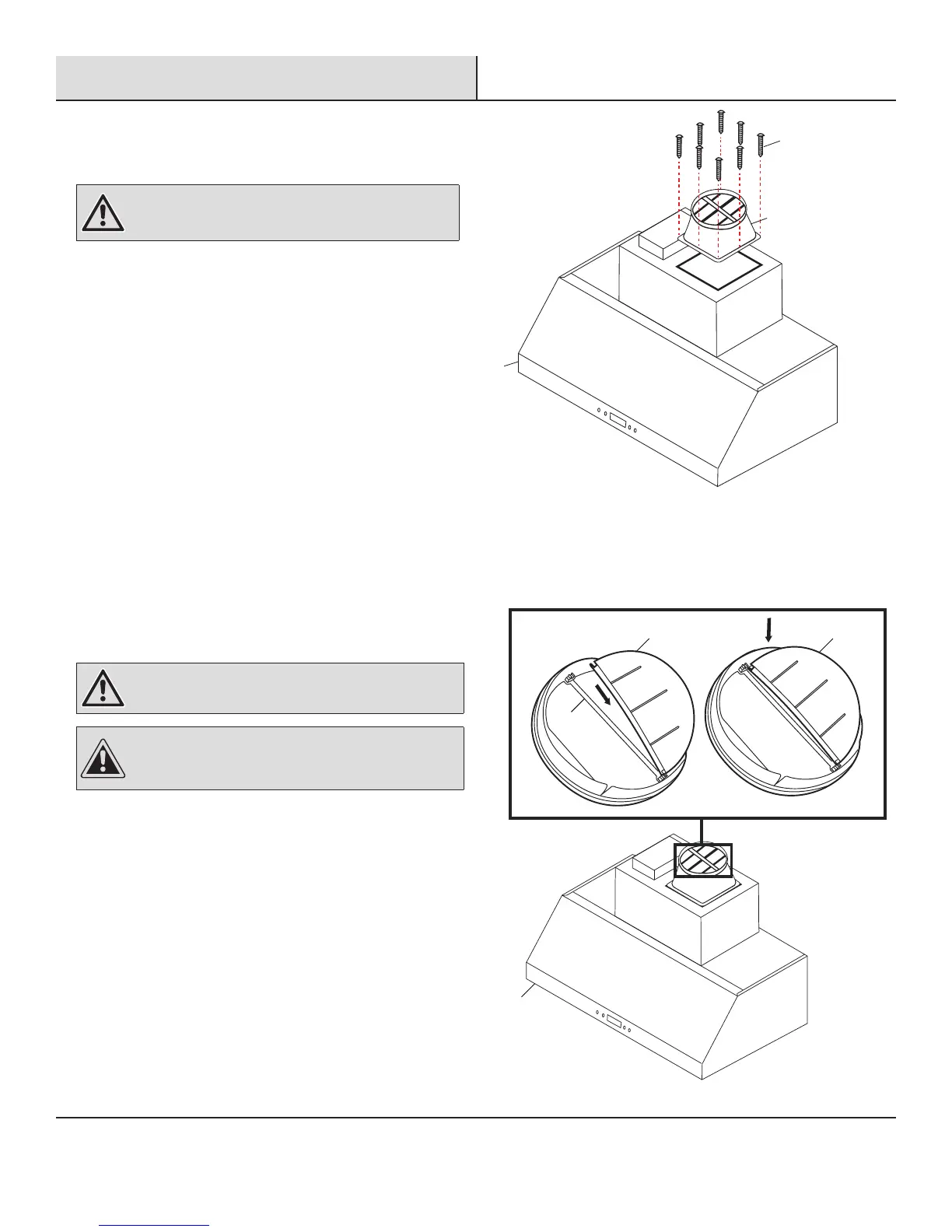

Installing the duct set
WARNING: This unit has sharp edges.
Always wear safety gloves during installation.
- Attach the duct set (B) to the range hood (A) with eight
screws (AA).
A
B
AA
2
Installing the damper (if necessary)
WARNING: Sharp edges. Wear safety gloves.
CAUTION: Be very careful when installing the damper.
Applying too much force or not bending the damper enough
may damage or break the damper hinge ends.
The damper is pre-installed at the factory. Make sure that it has
not come loose during shipping and re-install it, if necessary.
- Insert one end of the damper (1) into the hinge slot (2) at
the top of the range hood (A).
- Gently bend the damper (1) and insert its other end into the
hinge slot (2).
Installation
A
1
2
