A QR034 - Specifications; Wiring Diagram

17 CONGLOMKB.COM
Please contact 1-877-333-0098 for further assistance.
Specications
Model Dimensions Rating Speeds CFM Control Type Illumination Venting Options
QR034
29.8 in. (757 mm) W
120 V /
60 Hz /
3.6A
High
700 ±
10%
Push Button /
LCD Switch
2 x Max. 25 W or 35 W /
JDR 16, GU10 twist and
lock base light bulb
Top venting
18 in. (458 mm) D Medium
10 in. (254 mm) H Low

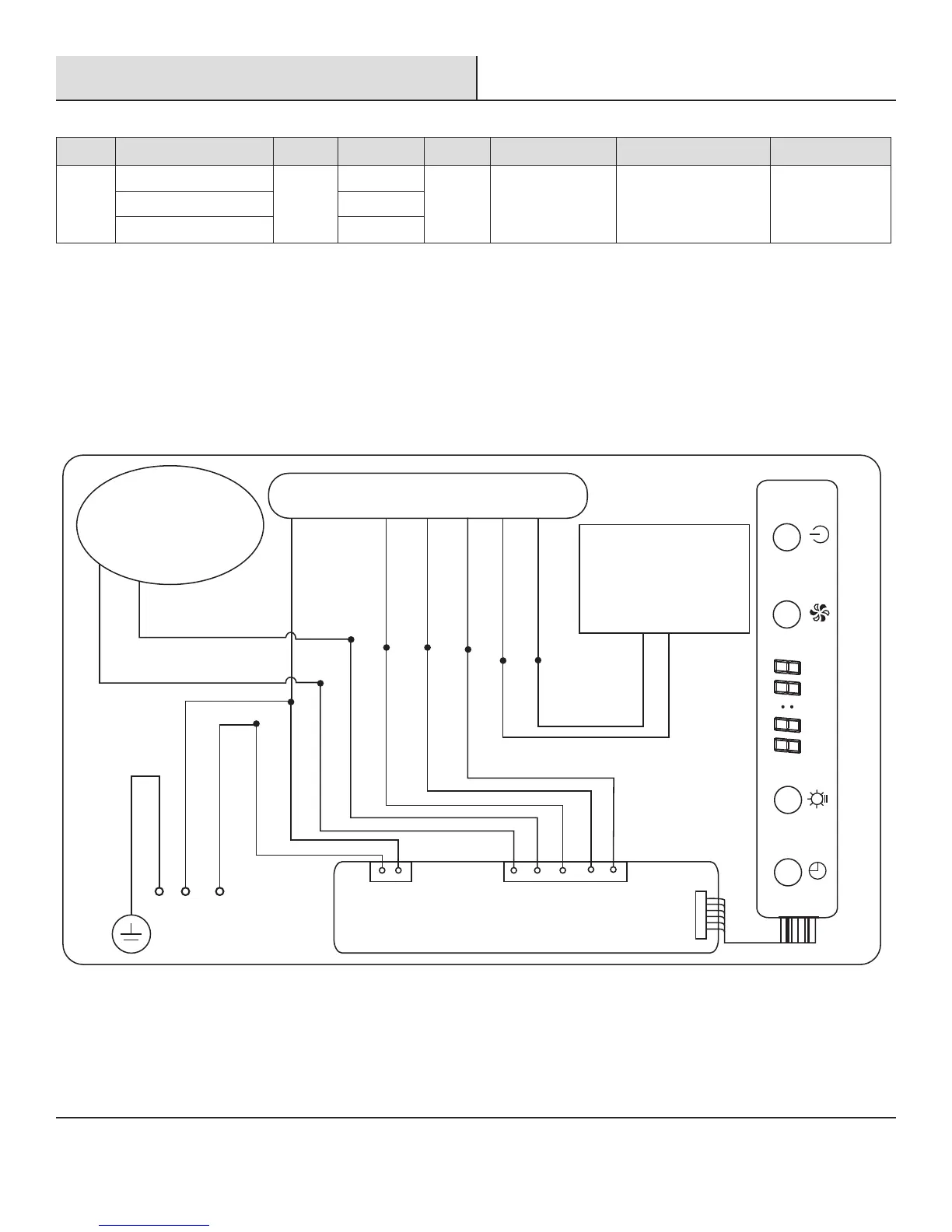

WIRING DIAGRAM
O N L
35W/JDR 16
Gu10 Light
Motor
Control Board
Black Black
Yellow & Green
White
White
White
Black
Control Panel
White
Grey
Blue
Grey
RedRed
Black
Black
Brown
Blue
Yellow
Yellow
Orange
Capacitor
20uf 330V AC
CTN2CTN1
CTN3
