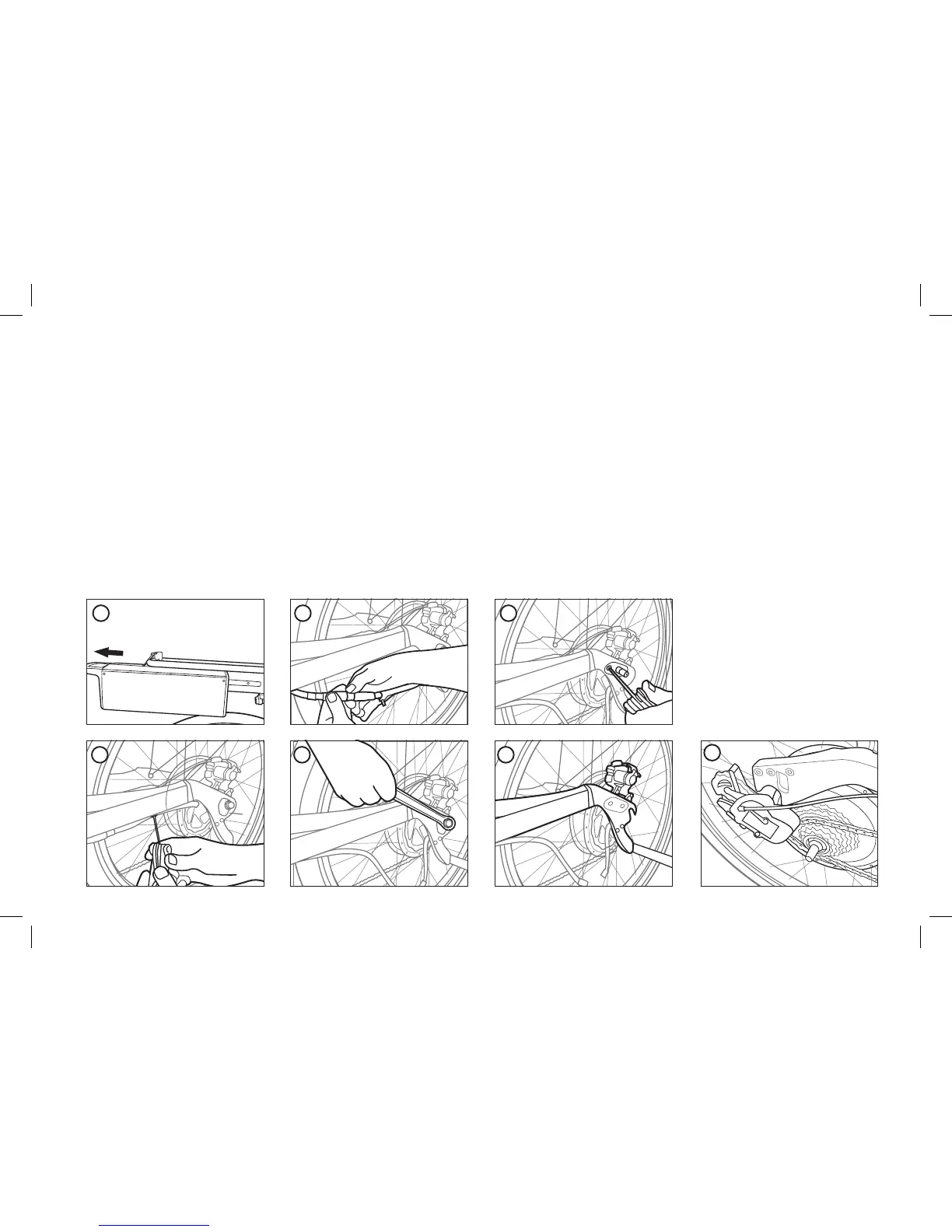

Removing the rear wheel
1. Ensure that the battery connector is disconnected.
2. Remove the cable clips (at the back of the drop-out and at the
underside of the left chain stay) with an appropriate Allen key.
3.
Release the cable connectors for the power and control cables to
the motor.
3
5
6
1
2 4
4. Release and remove the axle nuts with a 19 mm spanner.
5. Release and remove the locking screw of the torque support on the
left side of the drop-out.
6. Remove the torque support from the A2B by pushing it from the
axle.
7. Now remove the rear wheel by sliding it out of the frame while
disengaging the chain from the freewheel.
