Aaeon EMB-B75B - Page 30

EMB-B75B
2-22

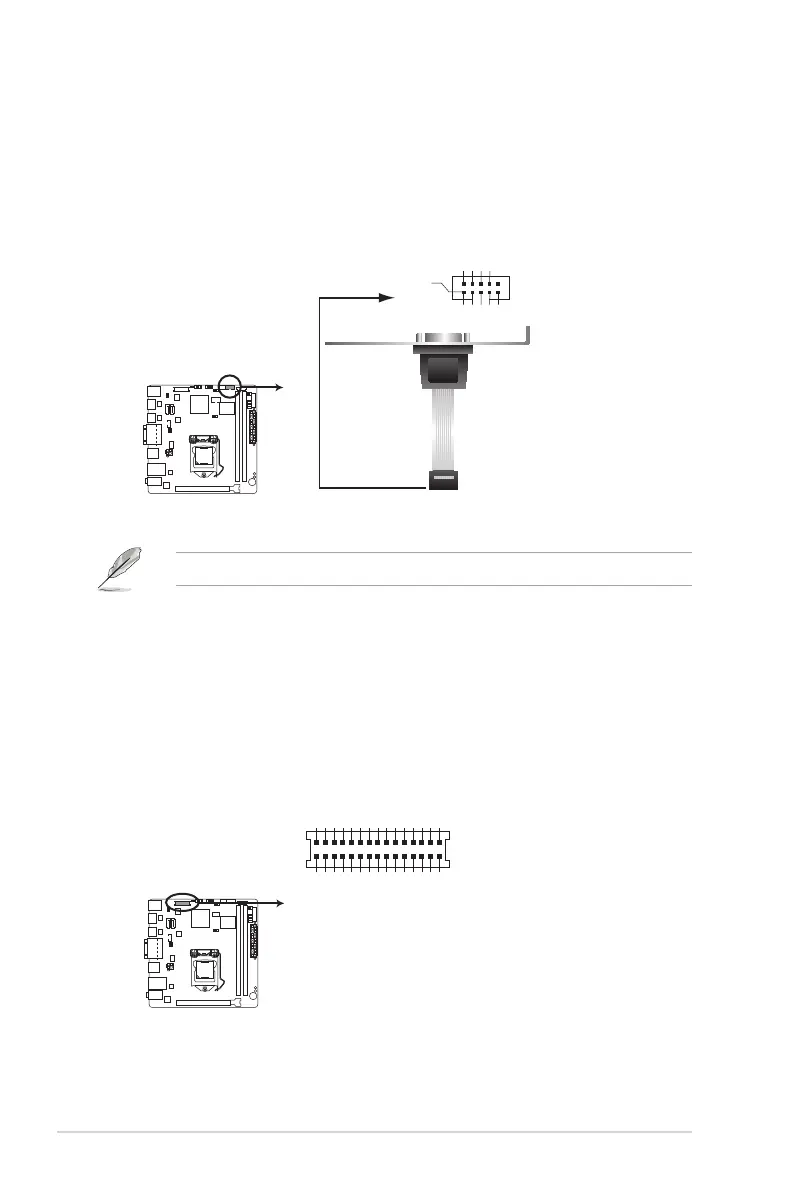

7. Serial port connectors (10-1 pin COM1)
These connectors are for serial (COM) ports. Connect the serial port module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
NOTE: The COM module is purchased separately.
EMB-B75B Serial port connector
PIN 1
COM1
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
123.86mm
8. LVDS connector (30-pin LVDS)
This connector is for a LCD monitor that supports Low-Voltage Differential
Signaling (LVDS) interface.
EMB-B75B LVDS connector
LVDS
PIN 1
Back Light Control for DC mode
GND
LVDS0_CLK+
GND
LVDS0_D0+ LVDS0_D1+ LVDS0_D2+ LVDS0_D3+
EDID_Clk
LVDS1_D0+ LVDS1_D1+ LVDS1_D2+ LVDS1_D3+
GND
LVDS1_CLK+
LVDS Panel Enable LVDS VCC LVDS0_CLK- LVDS VCC LVDS0_D0- LVDS0_D1- LVDS0_D2- LVDS0_D3- EDID_Data LVDS1_D0- LVDS1_D1- LVDS1_D2- LVDS1_D3- LVDS VCC LVDS1_CLK-
