36

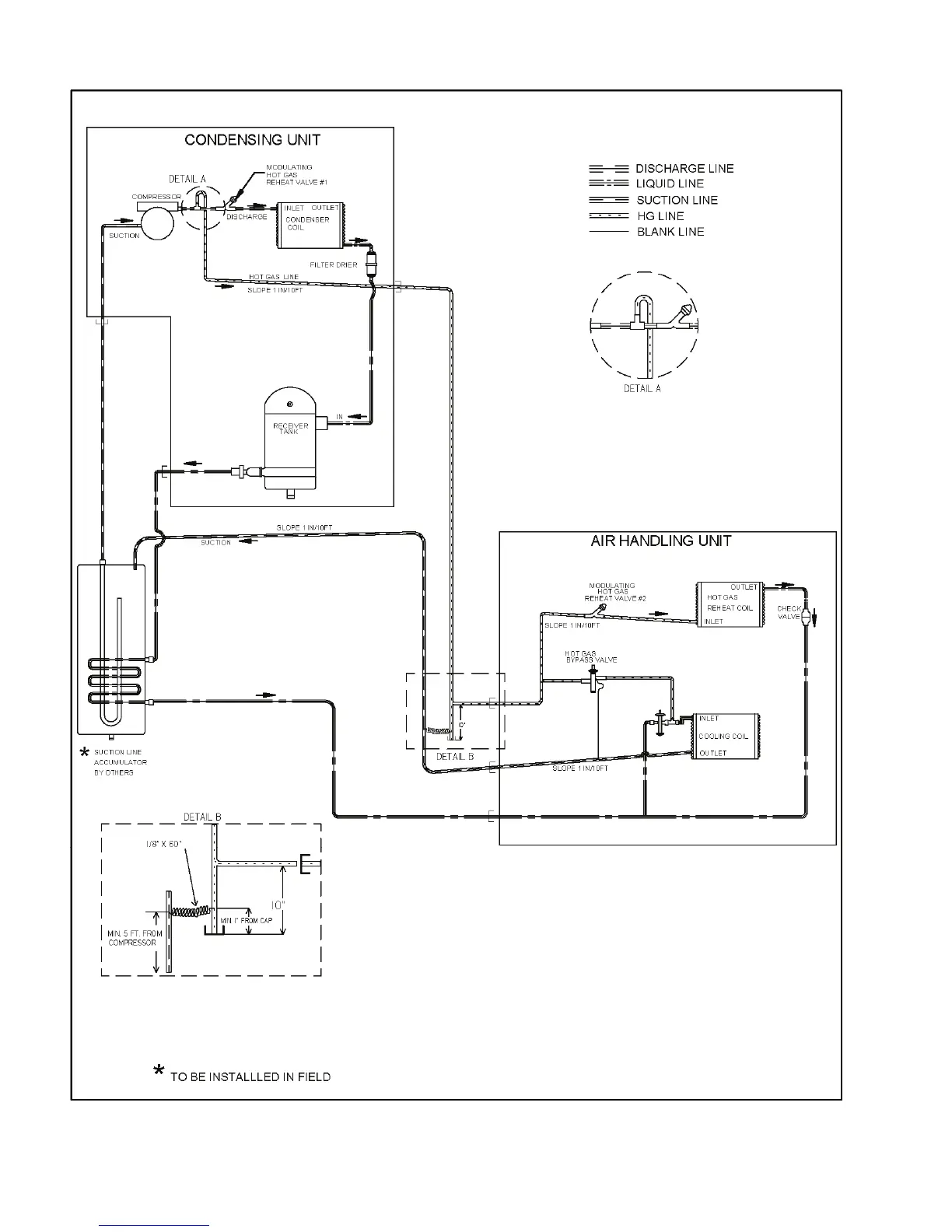

FIGURE RP-10. Reheat/Hot Gas Bypass Piping Diagram with air handler below condenser and field
installed suction line accumulator.
Note: Components shown within air
handler and condensing unit are factory
installed; all other components are field
installed.
