Manual Stair Robot SR1750 HE
Publication: 29-07-04
AATA INTERNATIONAL B.V.

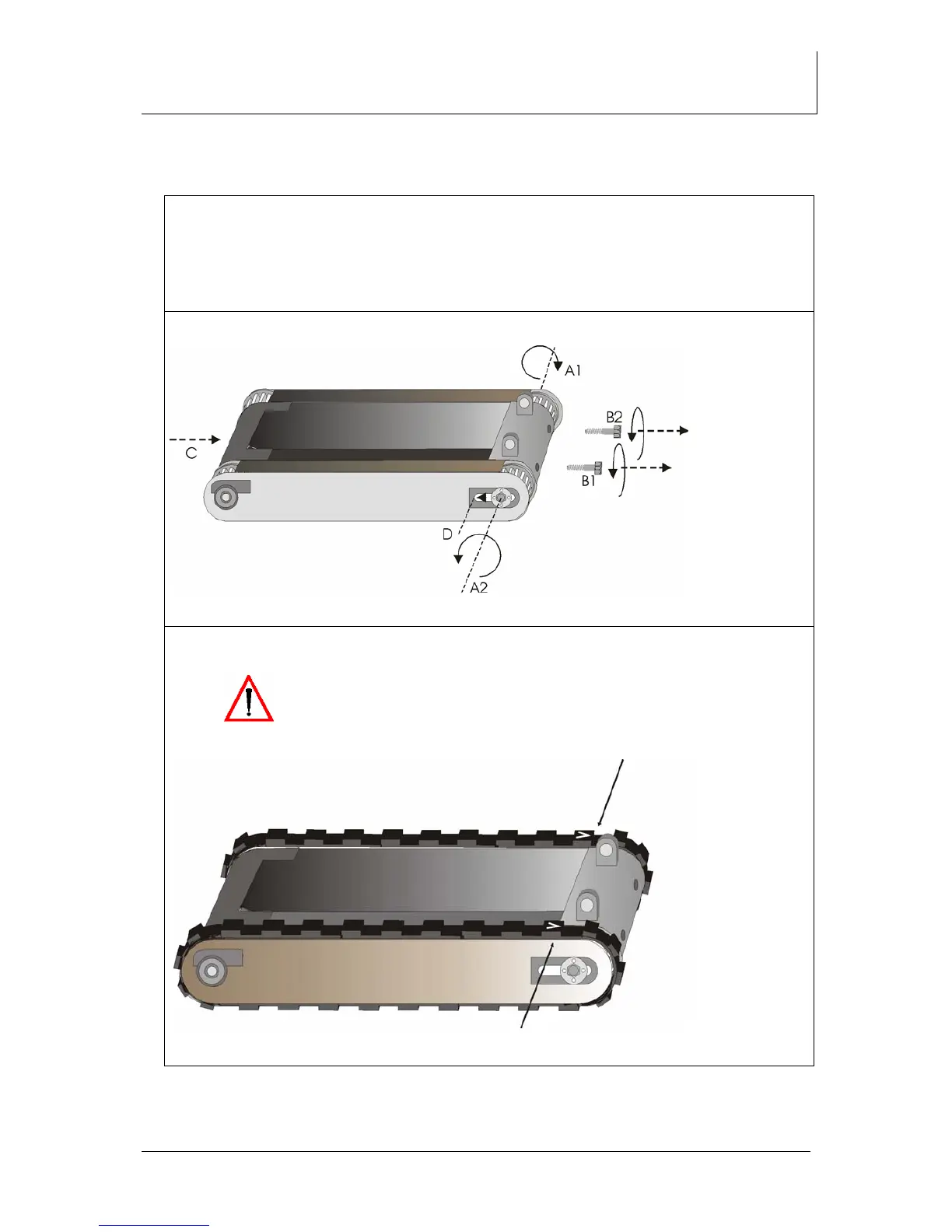

7 Track replacement
• Loosen both bolts a1 and a2
• Turn bolts b1 and b2 counter clockwise until the axle is at point d
• Remove track at point C
• To install the new track, reverse the above procedure
Drawing (1.)
Drawing (2.)
• After replacing tracks make sure that the > marks on both tracks are in
the in the same direction and position
Page 22 of 28
