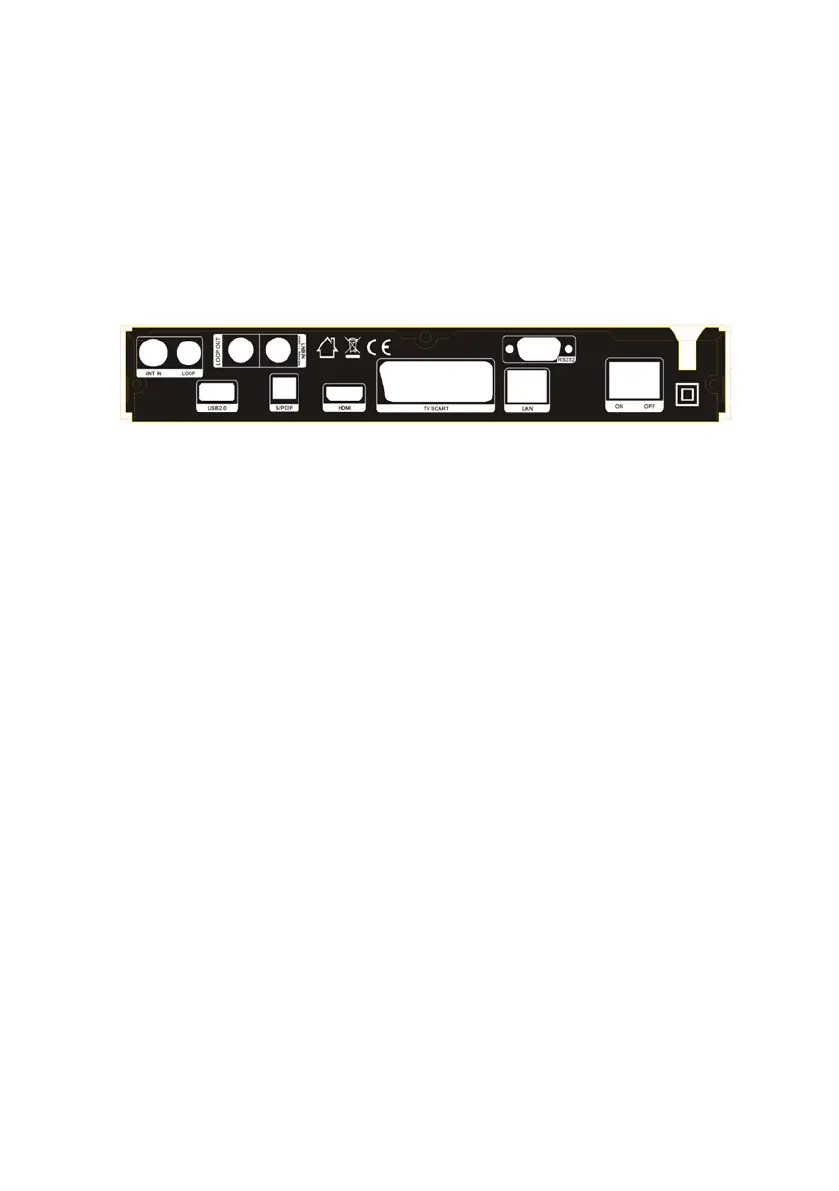

2.2 Rear Panel
1. ANT IN
Connect to TV Antenna
2. LOOP
Loop out Output the signal
3. LNB IN
Connect the satellite antenna cable.
4. LOOP
Loop out Output the signal
5. USB2.0
One USB 2.0 Host Port.
6. SPDIF
Digital Audio output (COAXIAL).
7. HDMI
Connect to the TV using an HDMI cable.
8.TV SCART
Connect to the TV using a Scart cable.
9. RS232
Connect to the computer using a serial line.
10. LAN
Connect to the internet using an Ethernet cable.
11. ON/OFF
Power on/off.
