Note/IllustrationAction

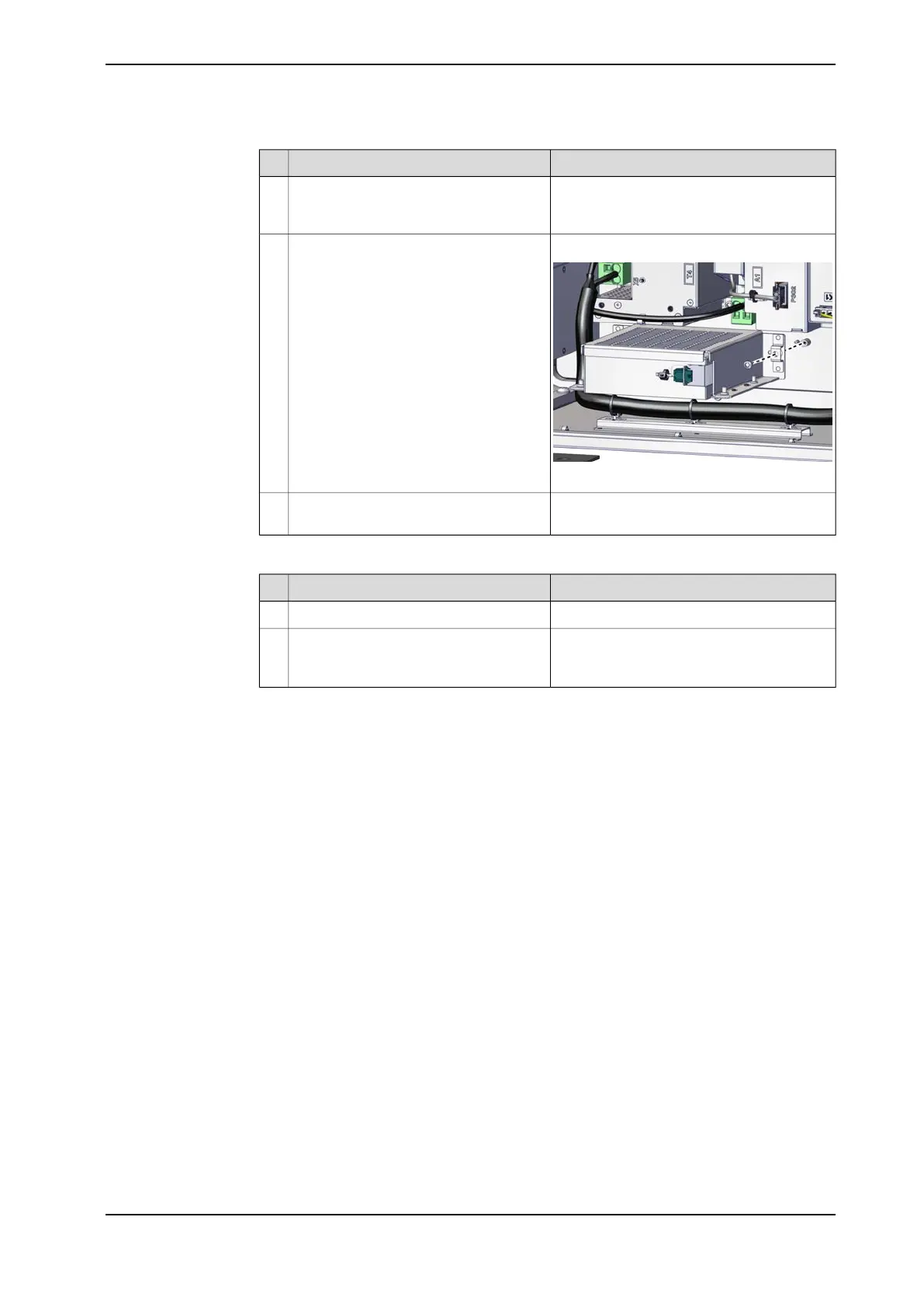

Refit the standard fan with the bracket
into position according to the location
pin.
3
Screws: Torx pan head screw M4x8 (2 pcs)Secure the screws.4
xx1900001488
Reconnect:
• G1.X2-K2.X17
5
Concluding procedure
Note/IllustrationAction
Closing the door on page 180.Close the door.1
Perform the function tests to verify that
the safety features work properly, see
Function tests on page 171.
2
Product manual - OmniCore C90XT 191
3HAC073706-001 Revision: E
© Copyright 2020-2021 ABB. All rights reserved.
5 Repair
5.2.3.1.1 Replacing the standard fan
Continued
