7.3.11 Troubleshooting the fieldbus adapter slave
Location

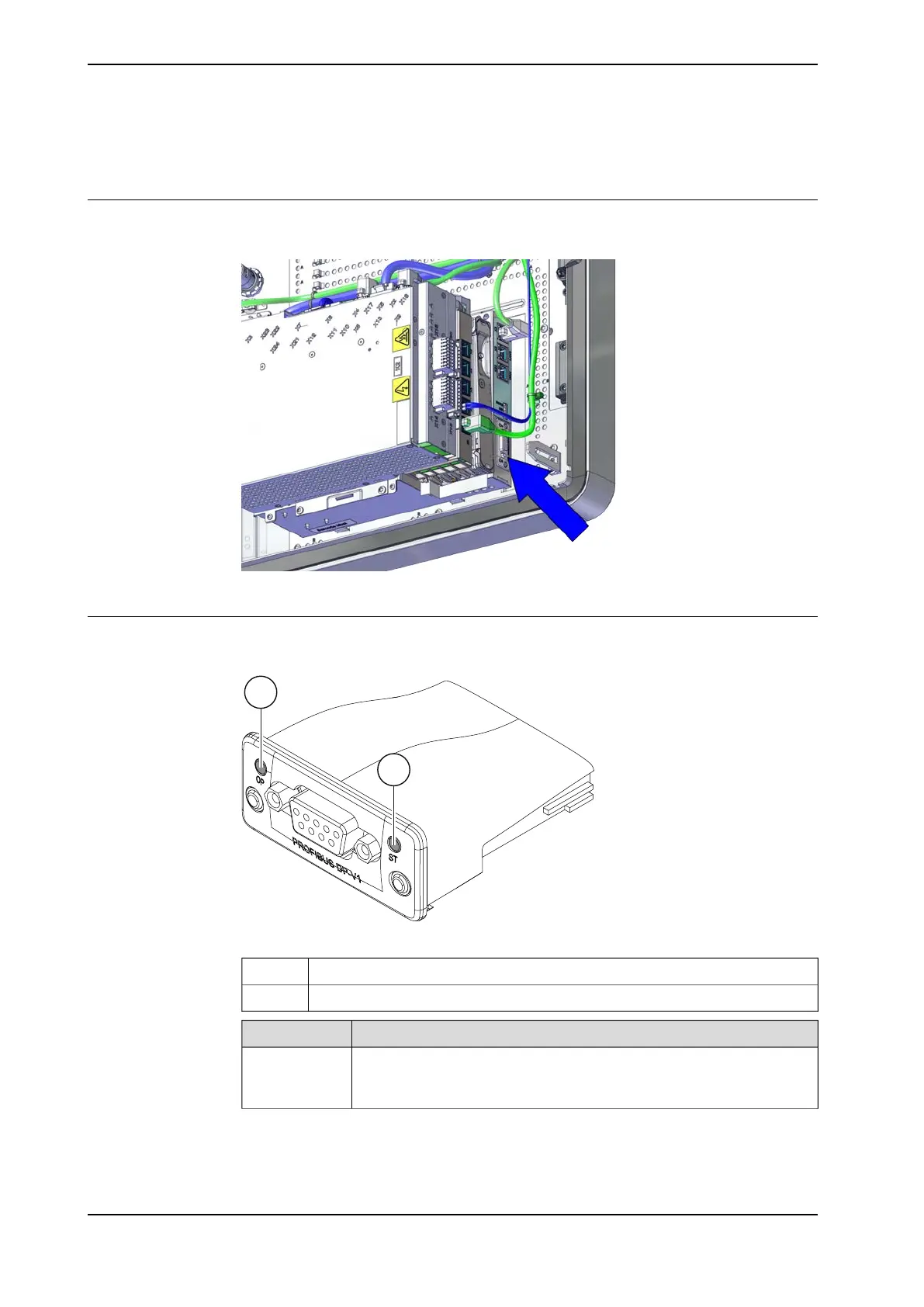

The illustration shows the location of the fieldbus adapter slave in the controller.
xx1900001474
LEDs
The illustration below shows the indication LEDs on the fieldbus adapter slave.
A
B
xx1800000586
Power LEDA
Status LEDB
SignificanceDescription
Fault indication:
• No color: Input voltage is outside of the specified voltage limits.
• Green, solid: Input voltage is within the specified limit.
Power LED
Continues on next page
