Note/IllustrationAction

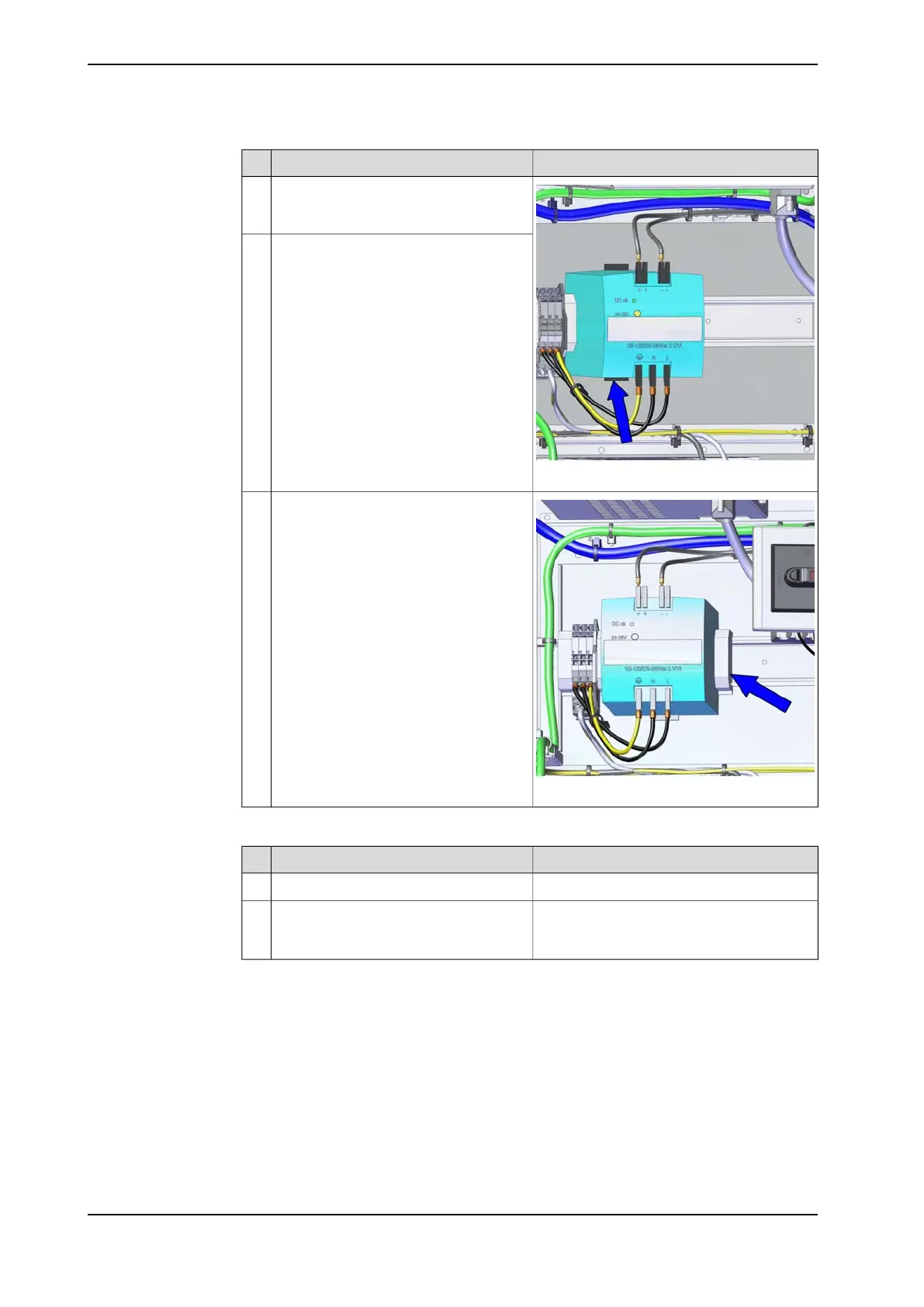

xx1900001950
Hang the power supply into the bracket
and push the lower of it until you hear a
clear clicking sound.
3
Reconnect:
• T5.X1-AC Terminal block
• T5.X2-24V Terminal block
4
xx1900002443
Refit the end clamp besides the power
supply.
5
Concluding procedure
Note/IllustrationAction
Closing the door on page 180.Close the door.1
Perform the function tests to verify that
the safety features work properly, see
Function tests on page 171.
2
