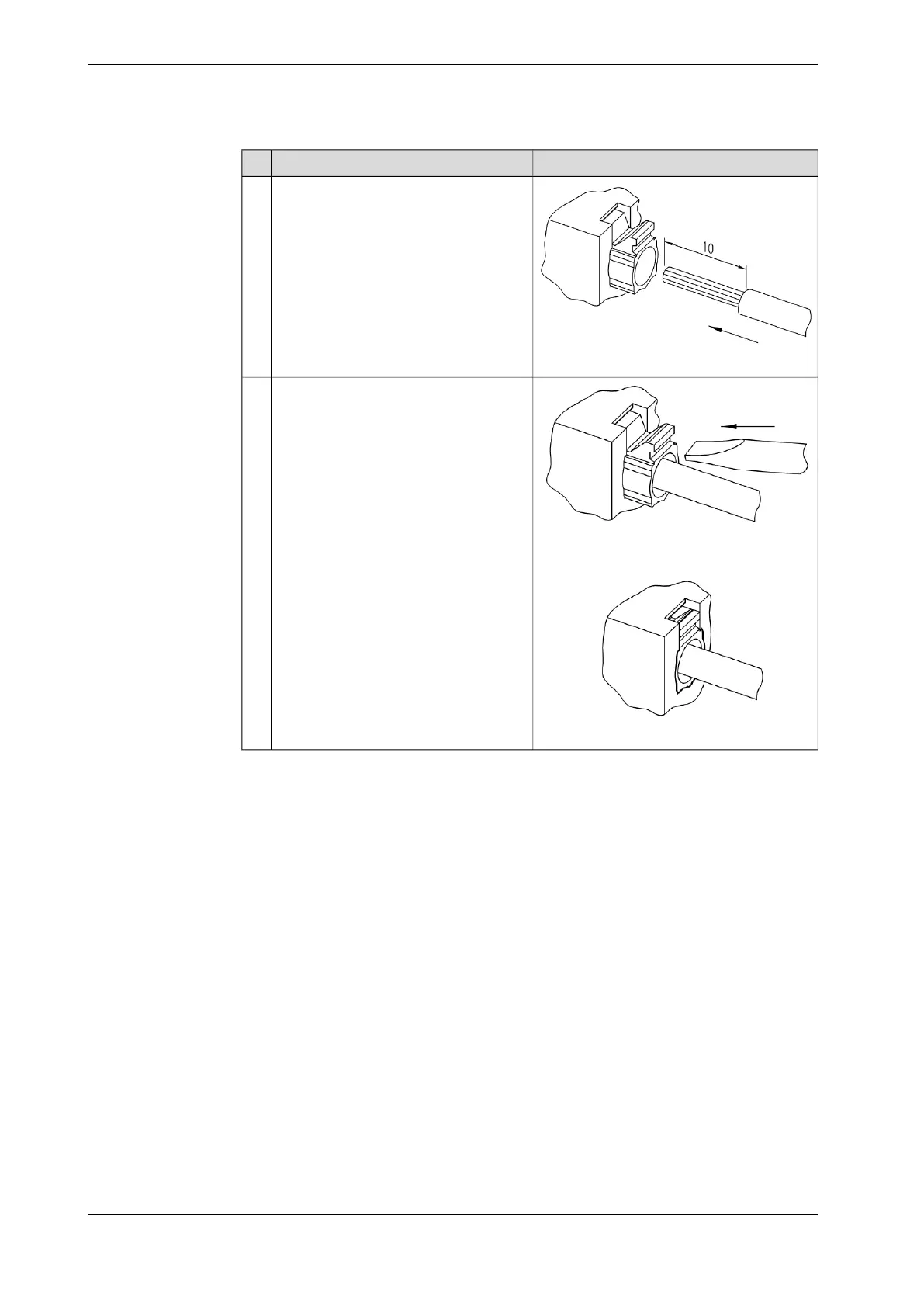

Note/illustrationAction
xx1900001458
Remove cable jacket and strip the fine
stranded wires about 10 mm if needed.
3
xx1900001459
Push fine stranded wires into the Han-
Quick Lock contact and push the slide
with a screw driver until it comes to a
stop.
4
