ABB AT3 - Program Setting and Operation; Programming Characteristics; Manual Override Selector

Cycle
7 days
3

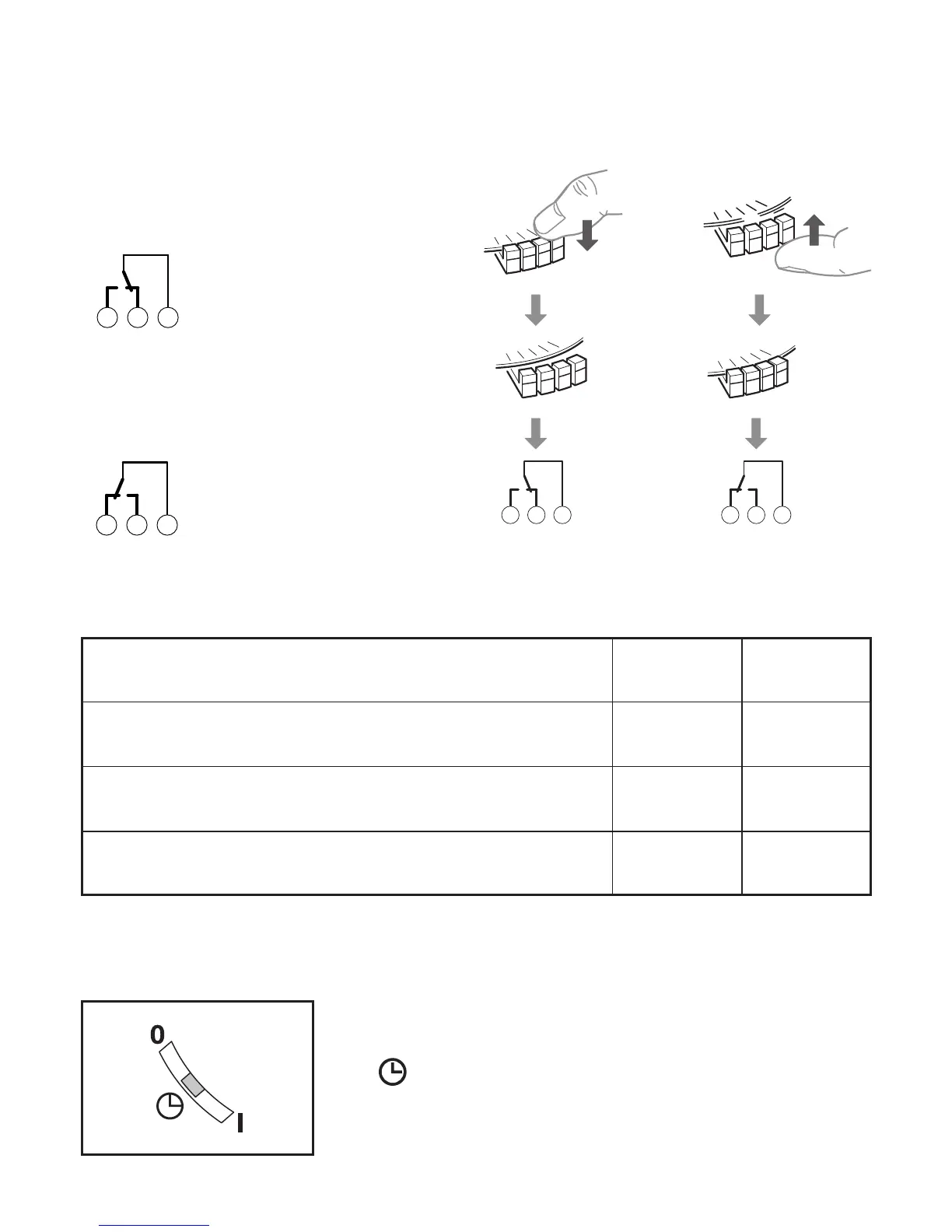

Program setting
Press inwards the segments on the program disk corresponding to the
selected switching periods.
Manual override
3-position selector:
0 = permanently OFF
= automatic programmed operation
I = permanently ON.
123
123
123
Function I :
segment set inwards
(red colour is visible).
Function 0 :
segment set outwards
(red colour not visible).
123
4 hour
2 hour
Min. interval between 2 actions
Program time per segment
Number of actions per cycle
24 h
96 84
15 min
30 min
Programming characteristics
