ABB BB 104 - External Fuse Cover

46
CURRENT AND VOLTAGE INSTRUMENT TRANSFORMERS
INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
35 346
49
4
75
13
M8
175
10
fuse JT6 300, 600mA

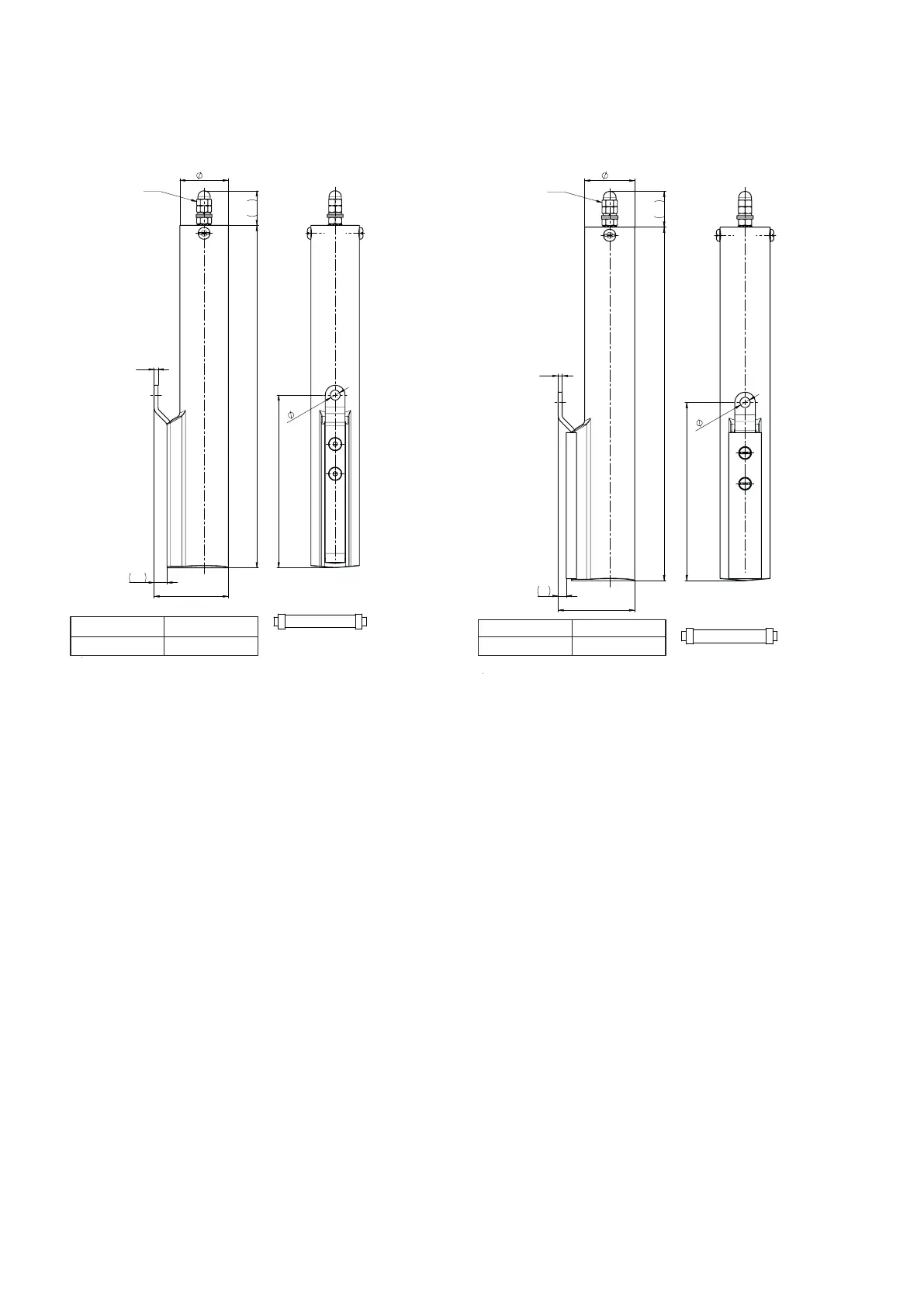

EXTERNAL FUSE COVER 17,5kV

—
External fuse holder up to 17.5 kV
35 346
49
4
75
8
M8
175
10
fuse JT6 300, 600mA
EXTERNAL FUSE COVER 25kV

—
External fuse holder up to 25 kV
fuse JT6 300 mA 1VL4200499R0101
fuse JT6 600 mA 1VL4200499R0102
fuse JT6 300 mA 1VL4200499R0201
fuse JT6 600 mA 1VL4200499R0202
